SOCKET-PERM, 4S/24, CS
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Spiral hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 1B24 be shipped?
1B24 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 1B24 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 1B24 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B24, subject to availability and destination.

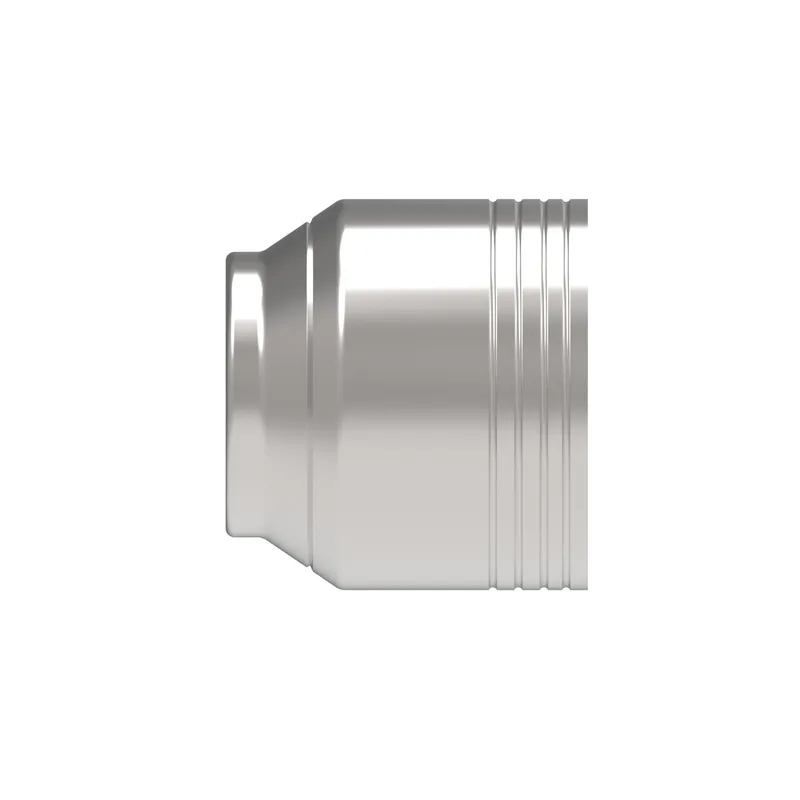

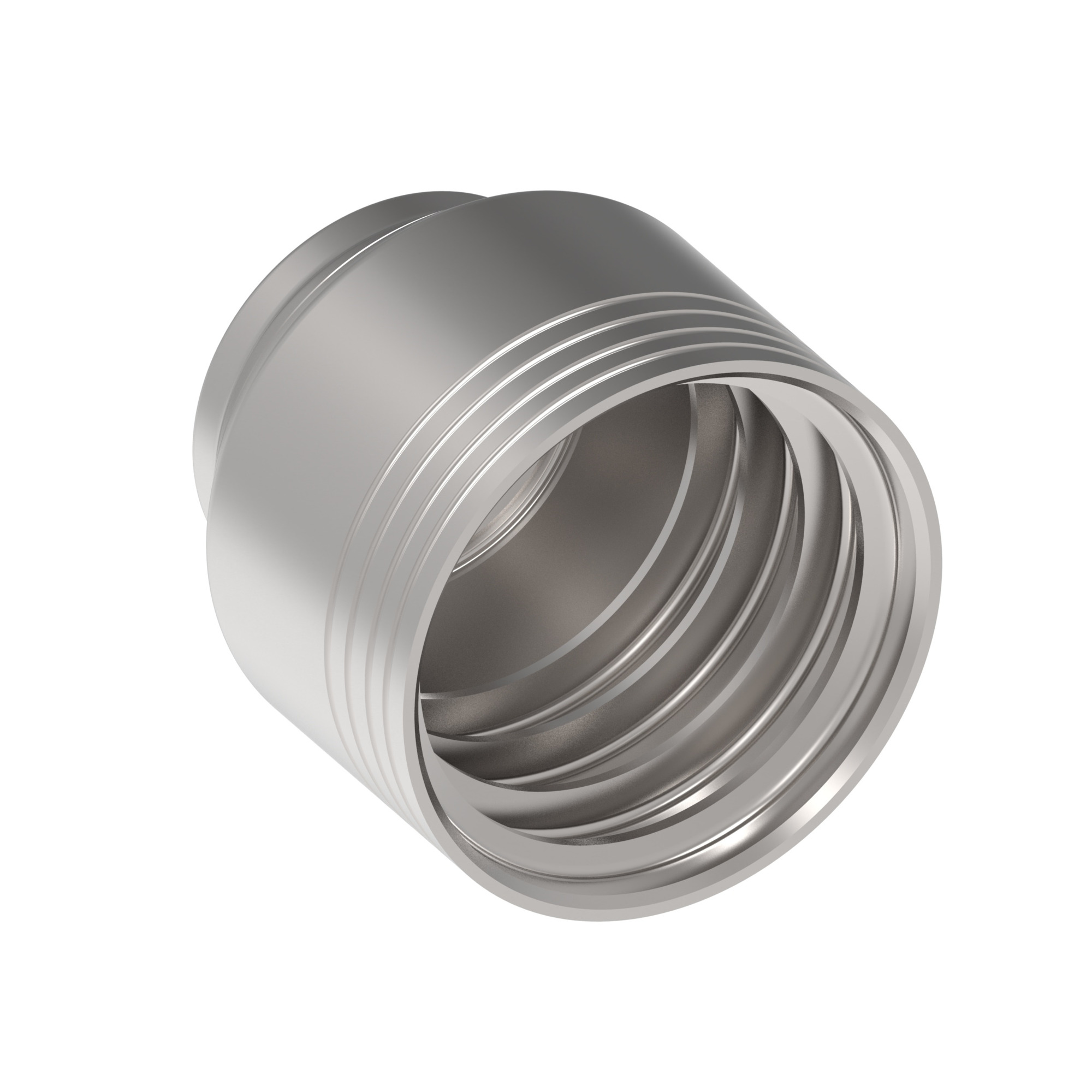

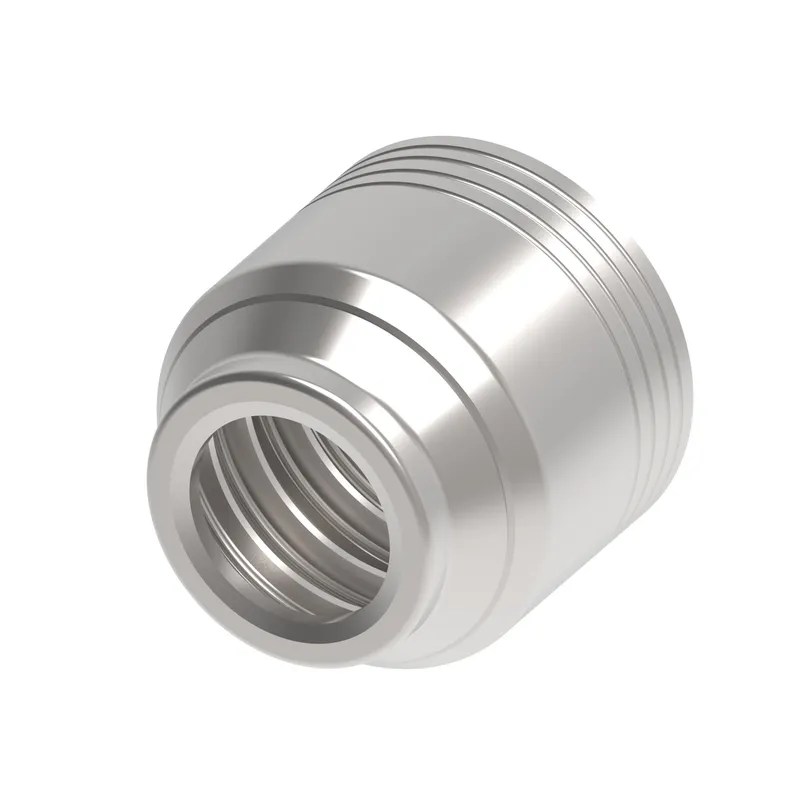

Danfoss SOCKET-PERM, 4S/24, CS, manufacturer part number 1B24. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.126 |
| A dimension MM | 54.000 |
| Angle shape | Straight |
| Application | General industrial use, Hydraulic systems, Petroleum based fluids, Water based fluids |
| Brand | Aeroquip by Danfoss |
| Compatible hose ID IN | 1.500 |
| Compatible hose ID MM | 38.100 |
| Compatible hoses | GH493 |
| Compatible tube OD IN | 1.50 |
| Compatible tube OD MM | 38.100 |
| Construction Style | Crimp |
| End size 1 | -24 |
| Finish plating | Zinc plating |
| Hose size | -24 |
| Inside diameter IN | 1.905 |
| Inside diameter MM | 48.400 |
| Product height in | 2.731 |
| Product height mm | 69.367 |
| Product length in | 2.216 |
| Product length mm | 54.000 |
| Product material | Carbon steel |
| Product width in | 2.731 |
| Product width mm | 69.367 mm |
| Series | B Series |
| Thread sealant | No |
| Tube OD 1 IN | 1.500 |
| Tube OD 1 MM | 38.100 |
| Working temperature max C | 126 |
| Working temperature max F | 260 |
| Working temperature min C | -40 |
| Working temperature min F | -40 |
