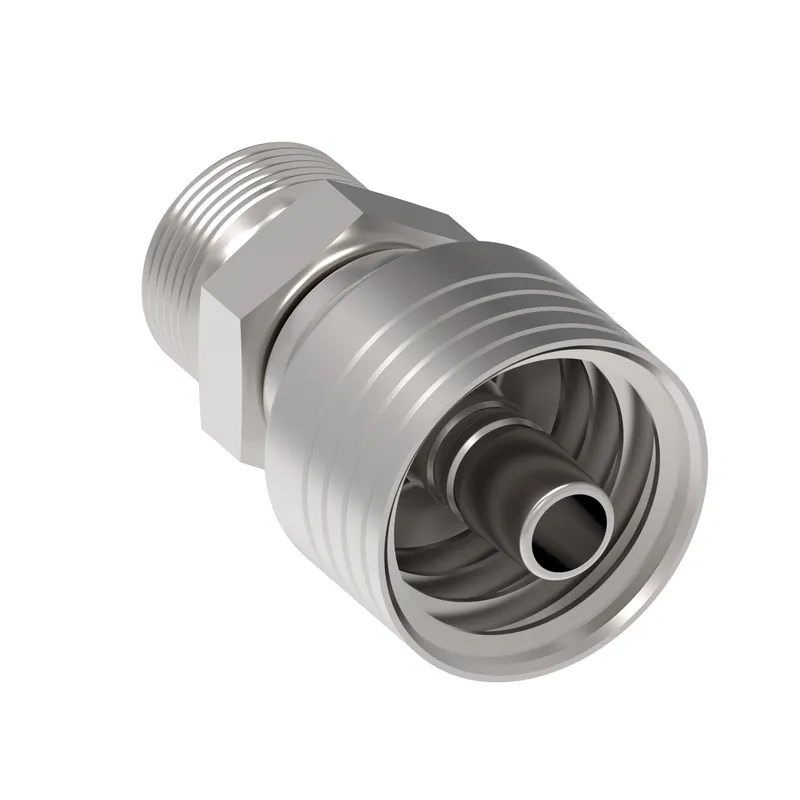

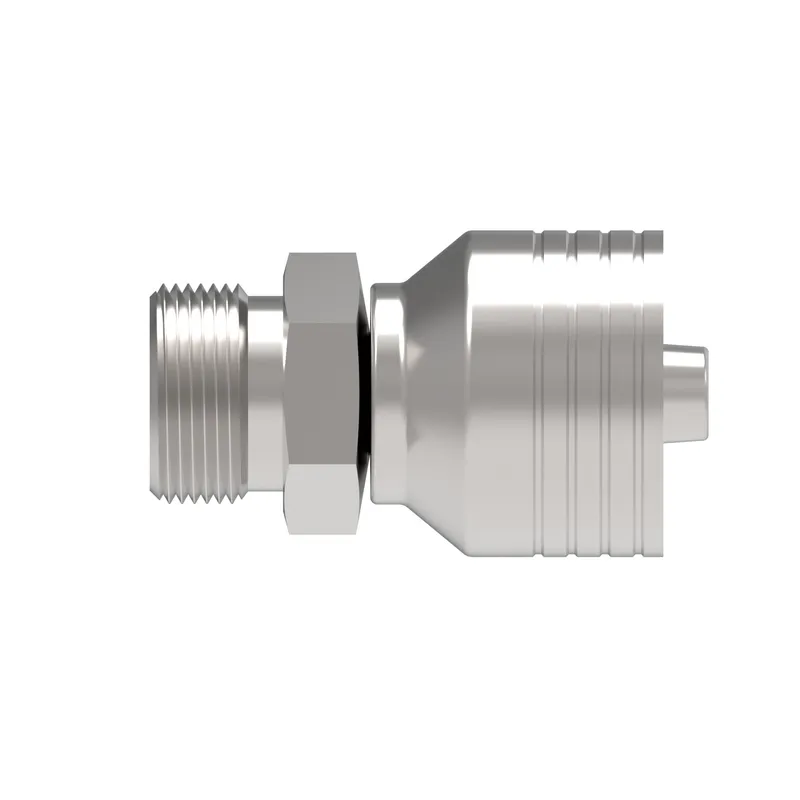

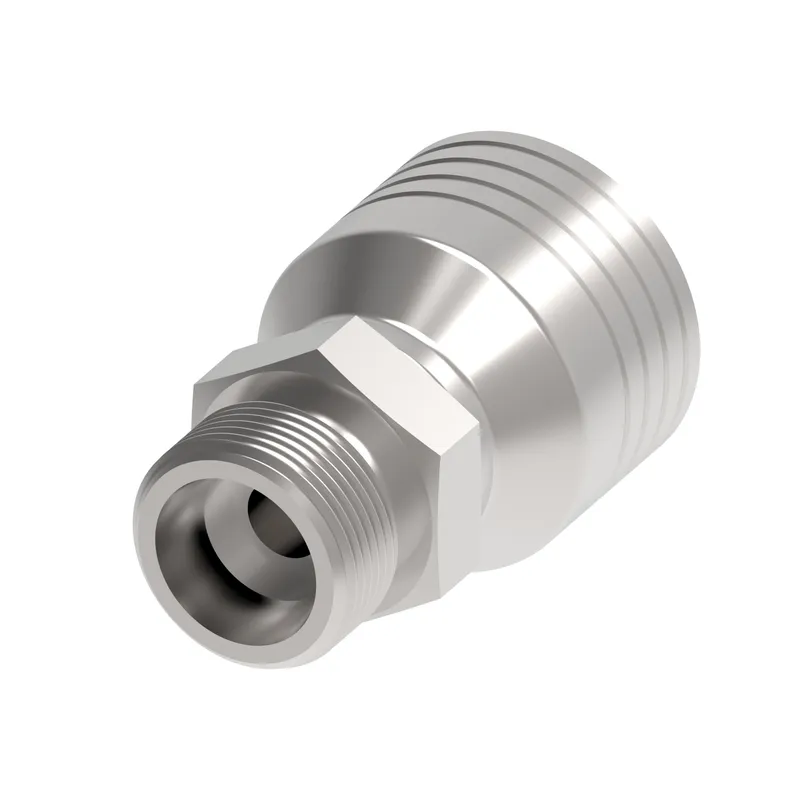

FTG TTC12 M42x2 M H USE 4S25EL16

Name: FTG TTC12 M42x2 M H USE 4S25EL16
Brand: Danfoss (Drives)
SKU: 1B25EK16

MPN: 1B25EK16 · Brand: Danfoss (Drives)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Spiral hose and fittings
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 1B25EK16 be shipped?

1B25EK16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1B25EK16 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1B25EK16 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1B25EK16, subject to availability and destination.

Danfoss FTG TTC12 M42x2 M H USE 4S25EL16, manufacturer part number 1B25EK16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146129765
A dimension IN	3.300
A dimension MM	83.700
Angle shape	Straight
Compatible hose ID IN	1.000
Compatible hose ID MM	25.400
Compatible hoses	FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN	1.56
Compatible tube OD MM	39.688
Construction Style	Crimp
End connection torque	210-280 lb-ft(285-380 Nm)
End size 1	-20
End type 1	24 deg. DKO swivel heavy duty
Finish plating	Zinc plating
Hex size 1 IN	1.810
Hex size 1 MM	45.974
Hose cut off factor IN	1.730
Hose cut off factor MM	44.000
Hose size	-16
Inside diameter IN	0.750
Inside diameter MM	19.200
Product height in	2.081
Product height mm	52.857
Product length in	2.847
Product length mm	72.313
Product material	Carbon steel
Product width in	2.081
Product width mm	52.857 mm
Seal material	Ethylene propylene (EPDM)
Series	B Series
Thread sealant	No
Thread size 1	M42x2
Tube OD 1 IN	1.563
Tube OD 1 MM	39.688
Working pressure max BAR	172
Working pressure max PSI	2500
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
