Danfoss 1B20FLF20

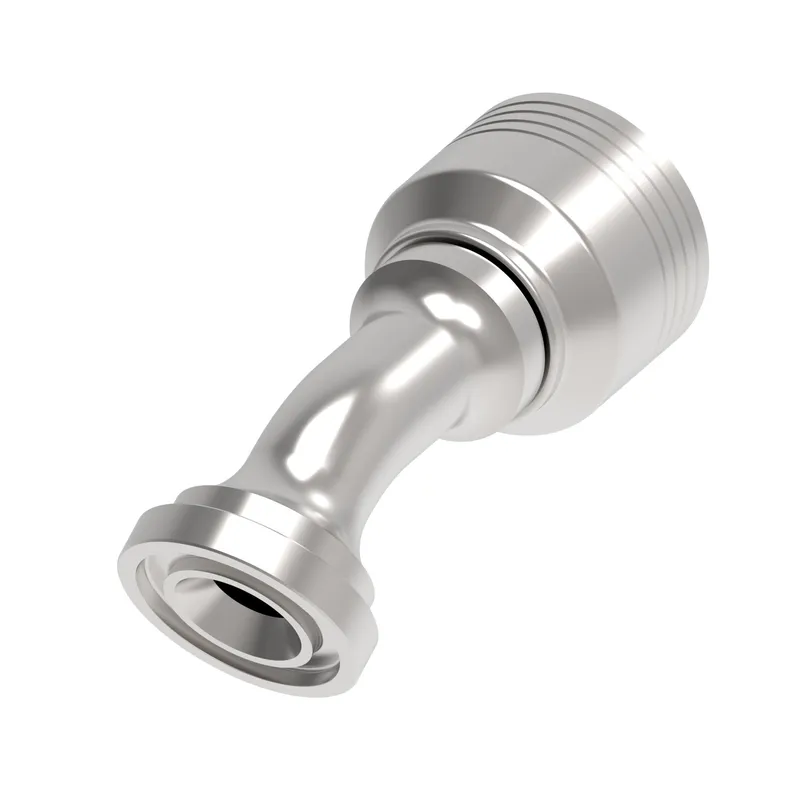

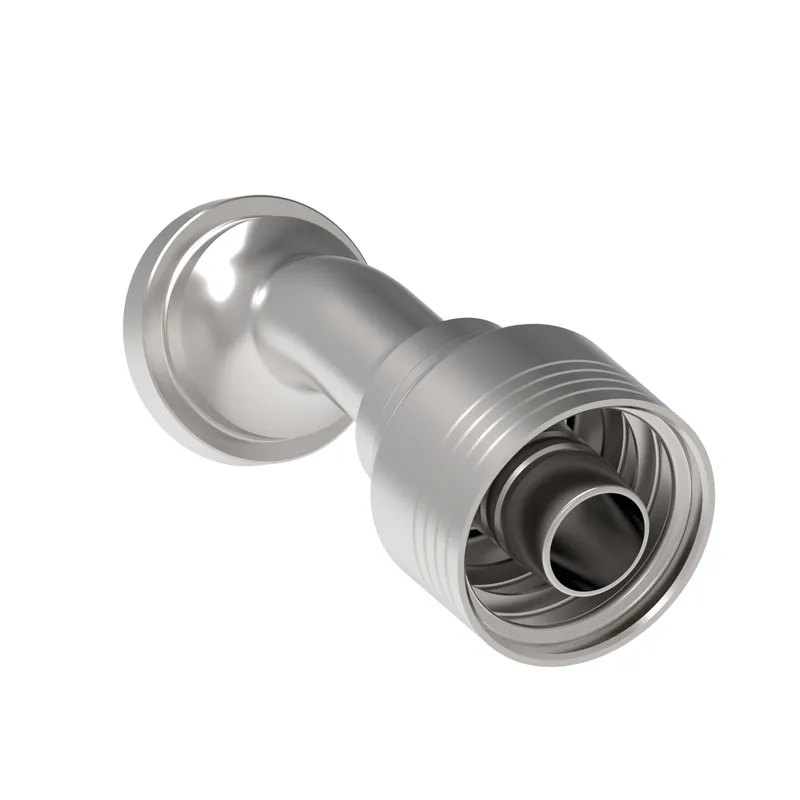

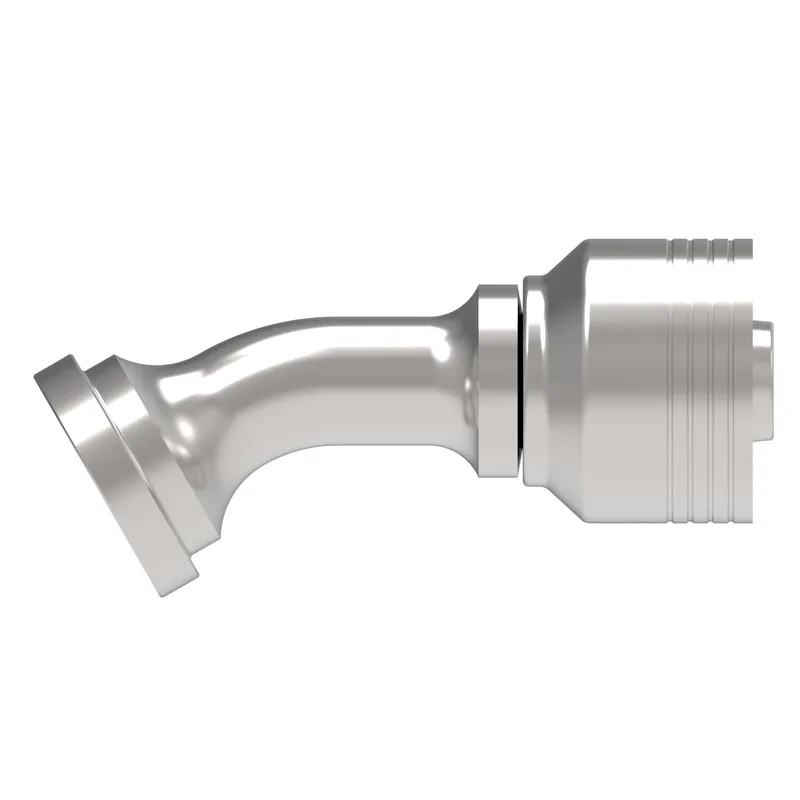

HOSE NIPPLE ASSY, 4S/20, C61/20, CS, 30D

MPN: 1B20FLF20
Category: Spiral hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1B20FLF20?

Danfoss HOSE NIPPLE ASSY, 4S/20, C61/20, CS, 30D, manufacturer part number 1B20FLF20. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146129451
A dimension IN	5.300
A dimension MM	134.700
Angle shape	30 Degree
Compatible hose ID IN	1.250
Compatible hose ID MM	31.800
Compatible hoses	FC616, FC659, FC736, GH493, 2661 (Size dependent), FC136, FC318 (Size dependent), FC636
Compatible tube OD IN	1.25
Compatible tube OD MM	31.750
Construction Style	Crimp
Drop dimension IN	0.670
Drop dimension MM	17.10
End size 1	-20
End type 1	Split flange code 61
Finish plating	Zinc plating
Hose cut off factor IN	3.760
Hose cut off factor MM	95.400
Hose size	-20
Inside diameter IN	1.010
Inside diameter MM	25.700
Product height in	0.670
Product height mm	17.018
Product length in	5.490
Product length mm	139.446
Product material	Carbon steel
Product width in	2.430
Product width mm	61.722 mm
Series	B Series
Thread sealant	No
Tube OD 1 IN	1.250
Tube OD 1 MM	31.750
Working pressure max BAR	276
Working pressure max PSI	4000
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-40
Working temperature min F	-40
