Danfoss 1AA4FJA4

HOSE FTG, 1A/04, JIC-F/04, CS, 45D

MPN: 1AA4FJA4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4FJA4?

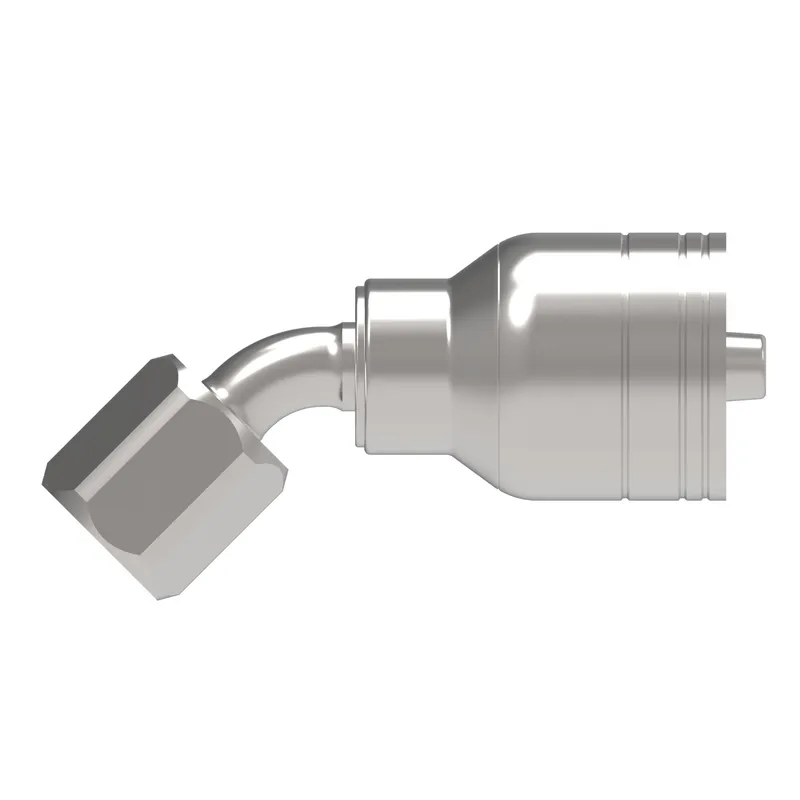

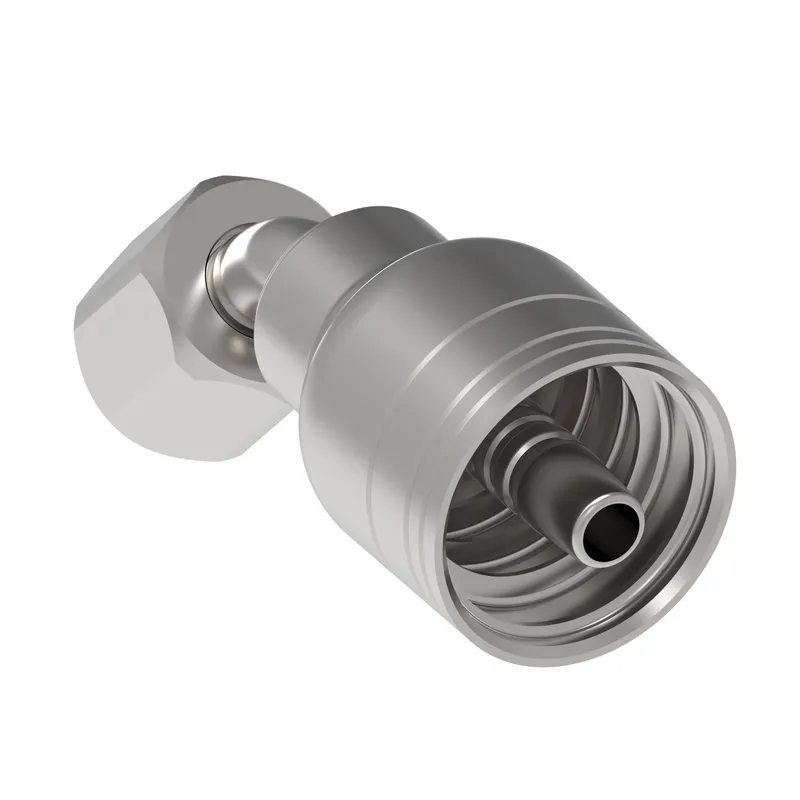

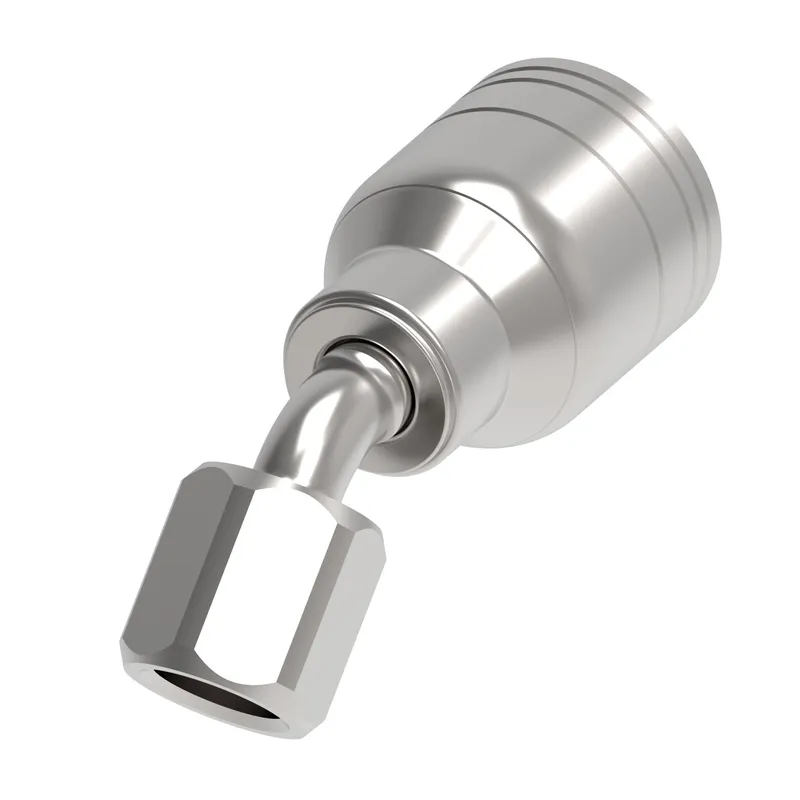

Danfoss HOSE FTG, 1A/04, JIC-F/04, CS, 45D, manufacturer part number 1AA4FJA4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126467
A dimension IN	1.810
A dimension MM	46.100
Angle shape	45 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	0.350
Drop dimension MM	8.90
End connection torque	11-12 lb-ft(15-16 Nm)
End size 1	-4
End Type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hose cut off factor IN	0.970
Hose cut off factor MM	24.600
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.400
Product height mm	35.560
Product length in	2.570
Product length mm	65.278
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Series	1A/Z Series
Thread size 1	7/16-20 UNF
Working pressure max BAR	450.00
Working pressure max PSI	6550.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40

1AA4FJA4: frequently asked questions

When can 1AA4FJA4 be shipped?

1AA4FJA4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 1AA4FJA4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 1AA4FJA4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 1AA4FJA4, subject to availability and destination.
