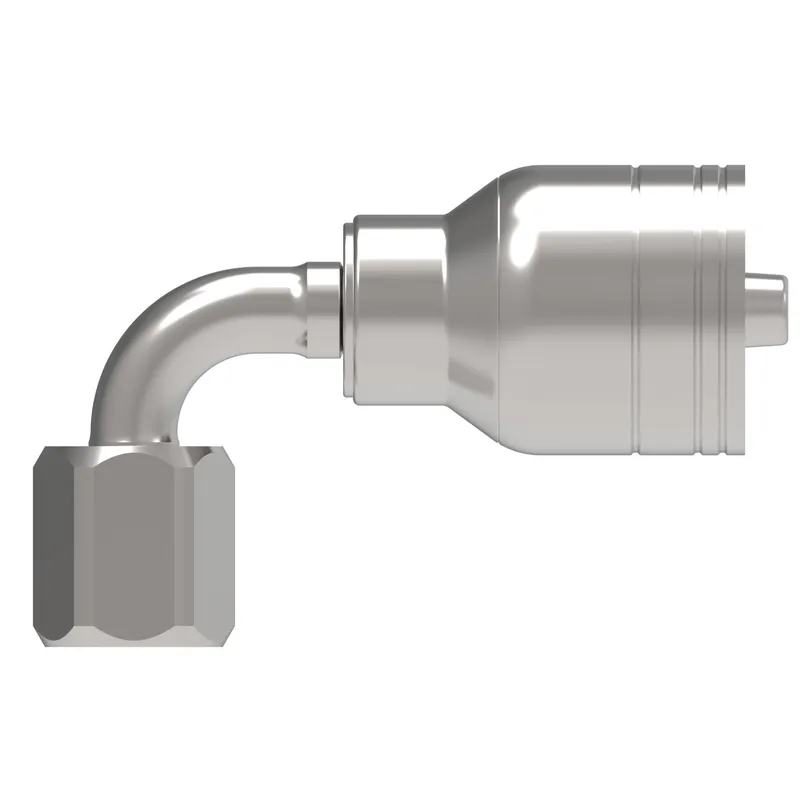

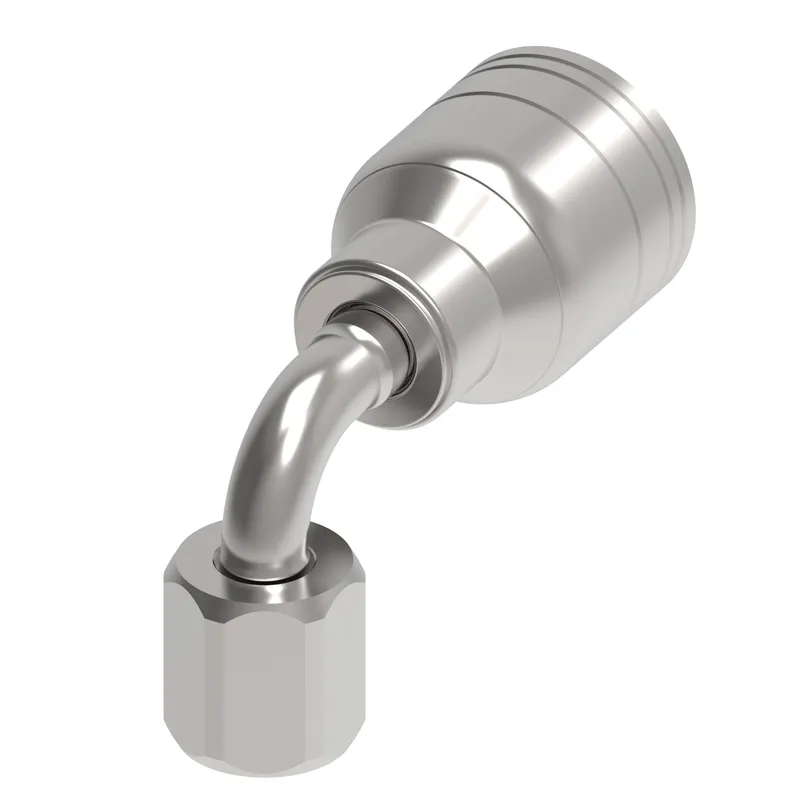

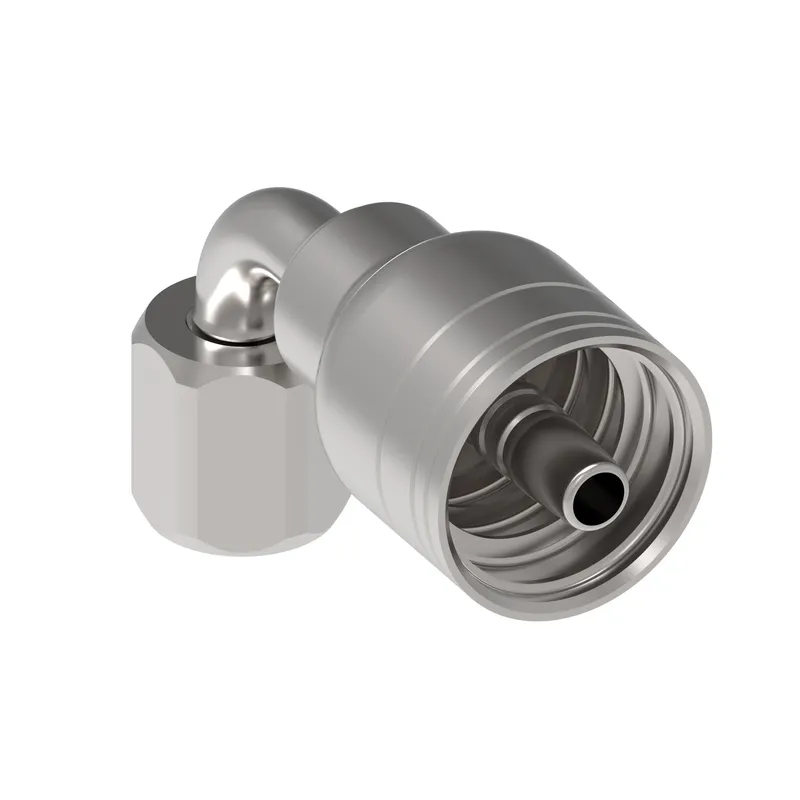

Danfoss 1AA4FJB4

HOSE FTG, 1A/04, JIC-F/04, CS, 90D

MPN: 1AA4FJB4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4FJB4?

Danfoss HOSE FTG, 1A/04, JIC-F/04, CS, 90D, manufacturer part number 1AA4FJB4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126481
A dimension IN	1.790
A dimension MM	45.400
Angle shape	90 Degree
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.400
Construction Style	Crimp
Drop dimension IN	0.680
Drop dimension MM	17.30
End connection torque	11-12 lb-ft(15-16 Nm)
End size 1	-4
End Type 1	Female 37 degree swivel
Finish plating	Zinc plating
Hose cut off factor IN	0.920
Hose cut off factor MM	23.300
Hose size	-4
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	1.470
Product height mm	37.338
Product length in	2.170
Product length mm	55.118
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Series	1A/Z Series
Thread size 1	7/16-20 UNF
Working pressure max BAR	450.00
Working pressure max PSI	6550.00
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
