Danfoss 1AA4FR4

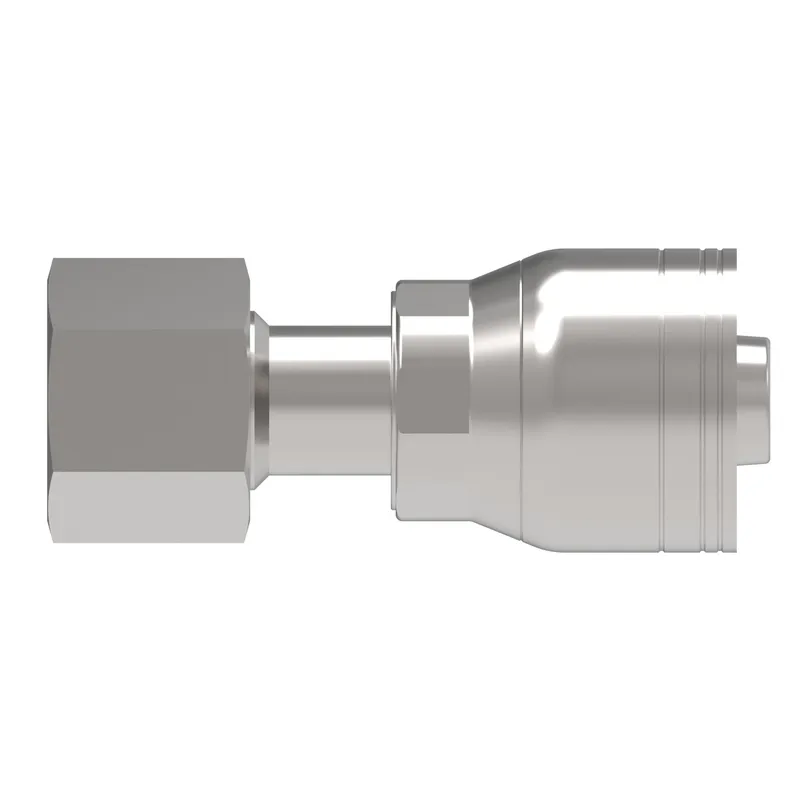

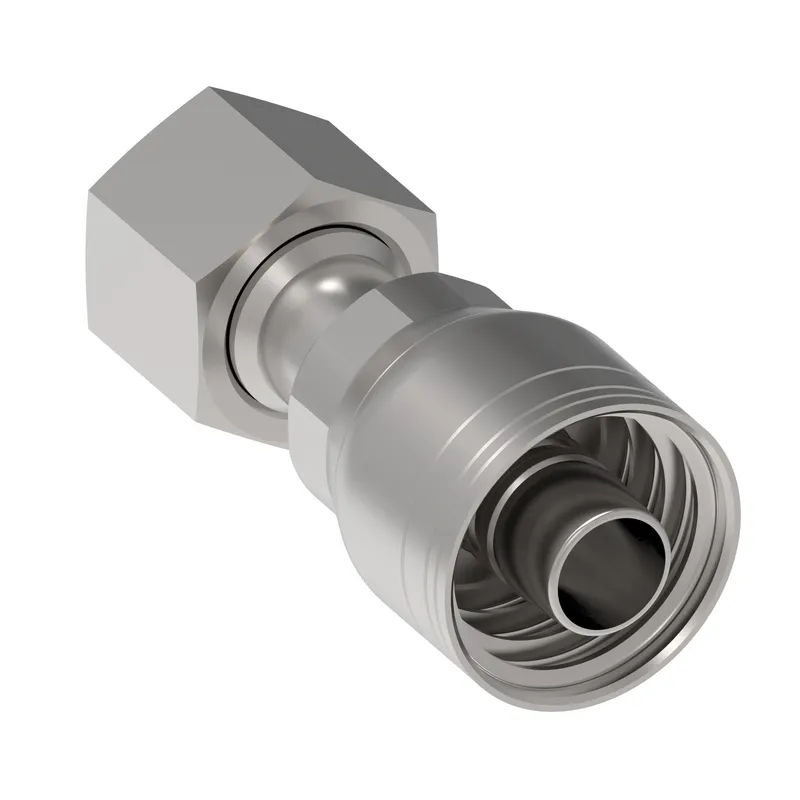

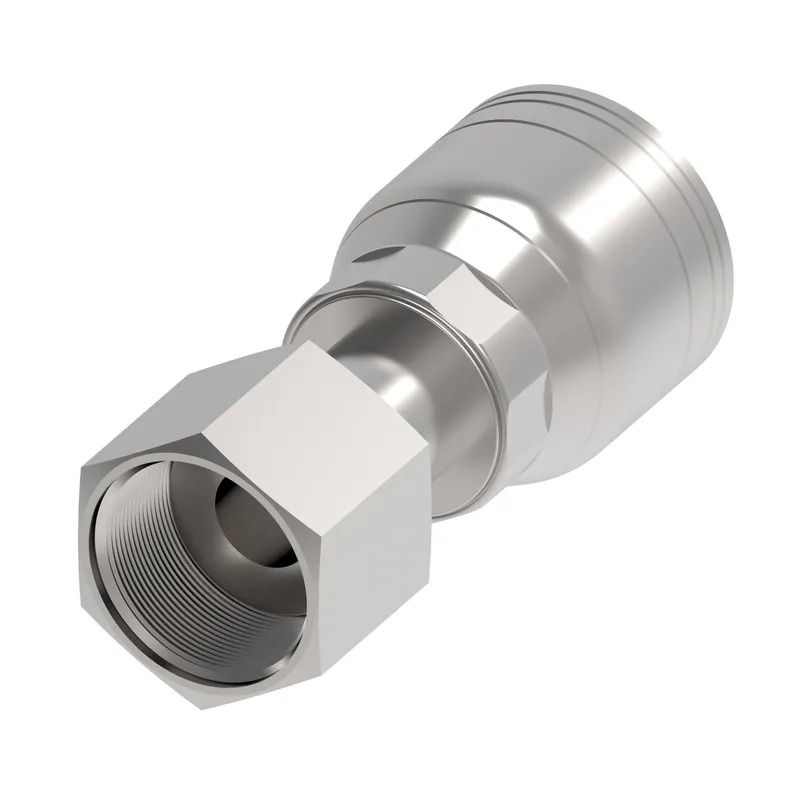

HOSE FTG, 1A/04, ORS-F/04, CS, STR

MPN: 1AA4FR4
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA4FR4?

Danfoss HOSE FTG, 1A/04, ORS-F/04, CS, STR, manufacturer part number 1AA4FR4. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126535
A dimension IN	1.870
A dimension MM	47.600
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible tube OD IN	0.25
Compatible tube OD MM	6.350
Construction Style	Crimp
End size 1	-4
End Type 1	Female ORFS swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hex size 2 IN	0.551
Hex size 2 MM	14.000
Hose cut off factor IN	1.030
Hose cut off factor MM	26.100
Inside diameter IN	0.170
Inside diameter MM	4.200
Product height in	0.880
Product height mm	22.352
Product length in	2.320
Product length mm	58.928
Product material	Carbon steel
Product width in	0.880
Product width mm	22.352
Thread sealant	No
Thread size 1	9/16-18 UNF
Tube OD 1 IN	0.250
Tube OD 1 MM	6.350
Working pressure max BAR	621
Working pressure max PSI	9100
