Danfoss 1AA16MJ12

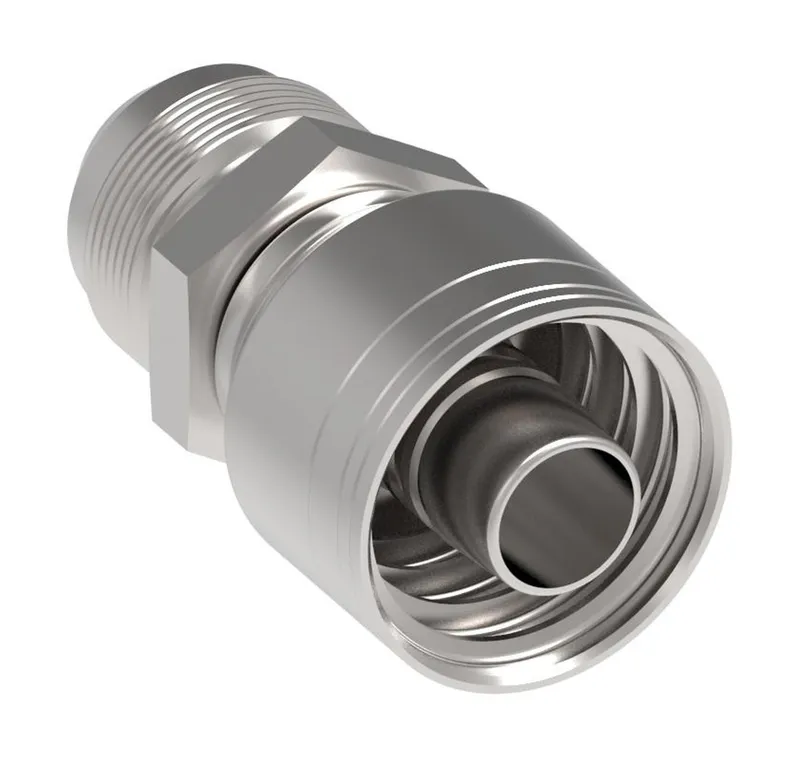

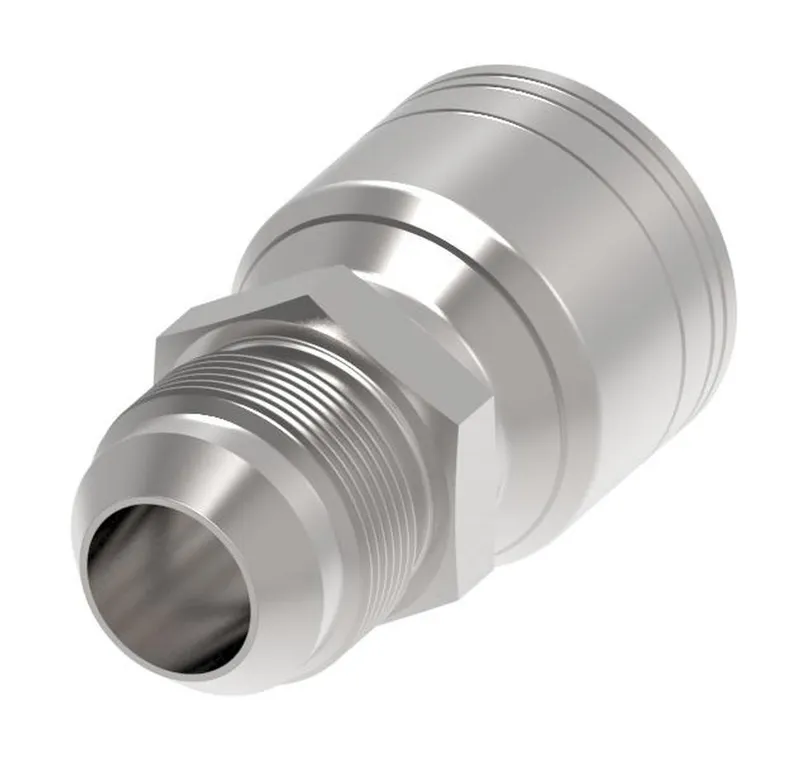

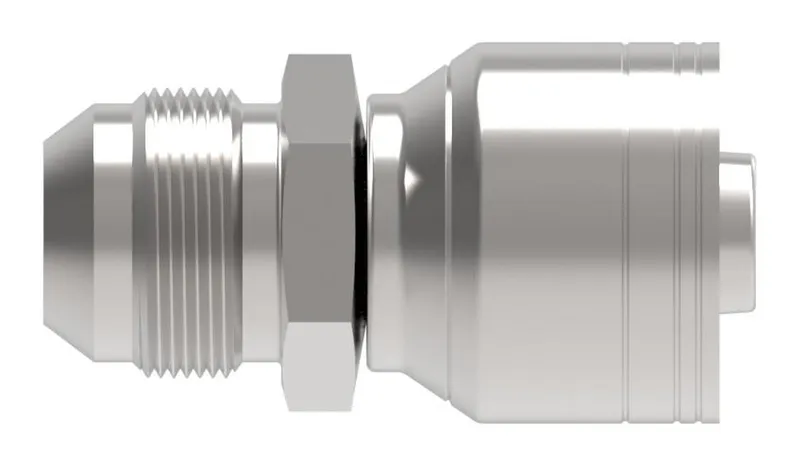

HOSE FTG, 1A/12, JIC-M/16, CS, STR

MPN: 1AA16MJ12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 1AA16MJ12?

Danfoss HOSE FTG, 1A/12, JIC-M/16, CS, STR, manufacturer part number 1AA16MJ12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146126122
A dimension IN	2.630
A dimension MM	66.800
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	108-113 lb-ft(148-154 Nm)
End size 1	-16
End Type 1	Male 37 degree
Finish plating	Dura-Kote
Hex size 2 MM	35.000
Hose cut off factor IN	1.560
Hose cut off factor MM	39.700
Hose size	-12
Inside diameter IN	0.610
Inside diameter MM	15.500
Product height in	1.580
Product height mm	40.132
Product length in	2.750
Product length mm	69.850
Product material	Carbon steel
Product width in	1.560
Product width mm	39.624
Series	1A/Z Series
Thread size 1	1 5/16-12 UN
Working pressure max BAR	241
Working pressure max PSI	3500
Working temperature max C	150
Working temperature max F	302
Working temperature min C	-40
Working temperature min F	-40
