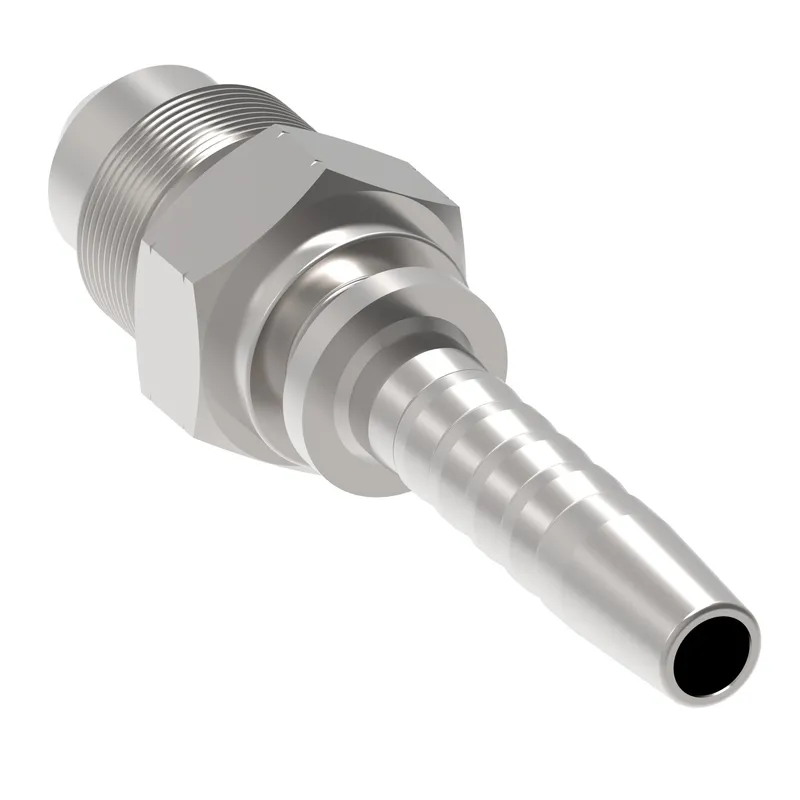

Danfoss 16712-12-10Z

HOSE NIPPLE ASSY,2P/10,JIC-M/12,CS,STR

MPN
16712-12-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16712-12-10Z?

Danfoss HOSE NIPPLE ASSY,2P/10,JIC-M/12,CS,STR, manufacturer part number 16712-12-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.170
A dimension MM80.600
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Construction StyleCrimp
End connection torque79-87 lb-ft(108-119 Nm)
End size 1-12
End type 1Male 37 degree
End type 2Line/hose/tube
Finish platingZinc plating
Hex size 1 IN1.180
Hex size 1 MM29.972
Hose cut off factor IN1.590
Hose cut off factor MM40.500
Hose size-10
Inside diameter IN0.4700
Inside diameter MM12.0000
Product height in1.080
Product height mm27.432
Product length in3.169
Product length mm80.492
Product materialCarbon steel
Product width in1.180
Product width mm29.972 mm
SeriesWinner 2-Piece
Thread sealantNo
Thread size 11 1/16-12 UN

16712-12-10Z: frequently asked questions

When can 16712-12-10Z be shipped?

16712-12-10Z is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 16712-12-10Z in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 16712-12-10Z and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 16712-12-10Z, subject to availability and destination.

More Danfoss (Drives) parts

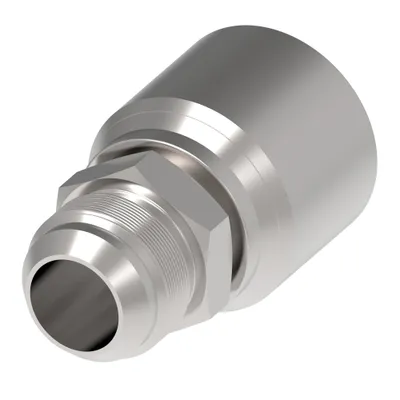

Danfoss 16711Y-16-16Z – HOSE NIPPLE ASSY,1P/16,JIC-M/16,CS,STR
Danfoss
16711Y-16-16Z

HOSE NIPPLE ASSY,1P/16,JIC-M/16,CS,STR

Danfoss 16712-08-08Z – HOSE NIPPLE ASSY,2P/08,JIC-M/08,CS,STR
Danfoss
16712-08-08Z

HOSE NIPPLE ASSY,2P/08,JIC-M/08,CS,STR

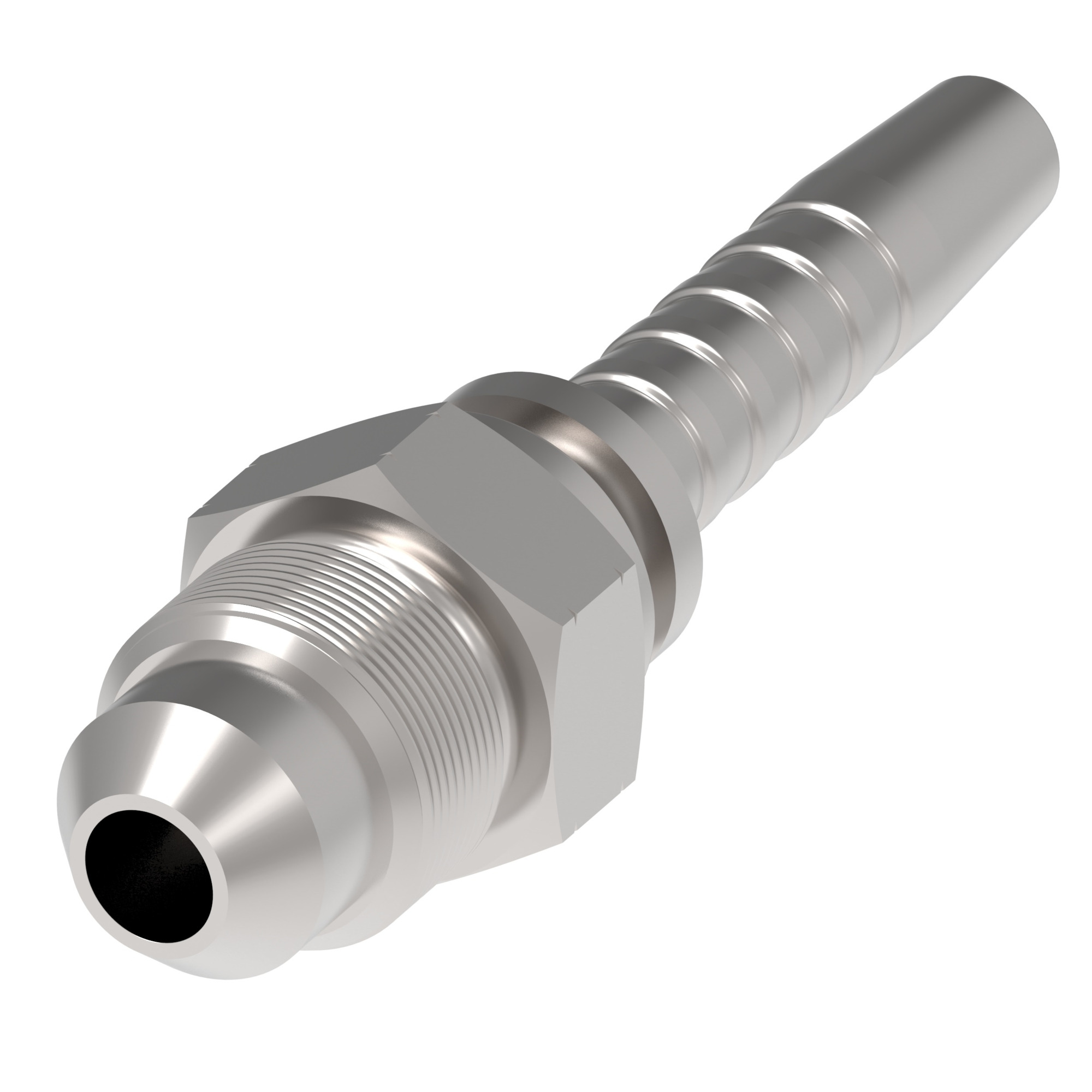

Danfoss 16712-10-08Z – HOSE NIPPLE ASSY,2P/08,JIC-M/10,CS,STR
