Danfoss 16712-10-10Z

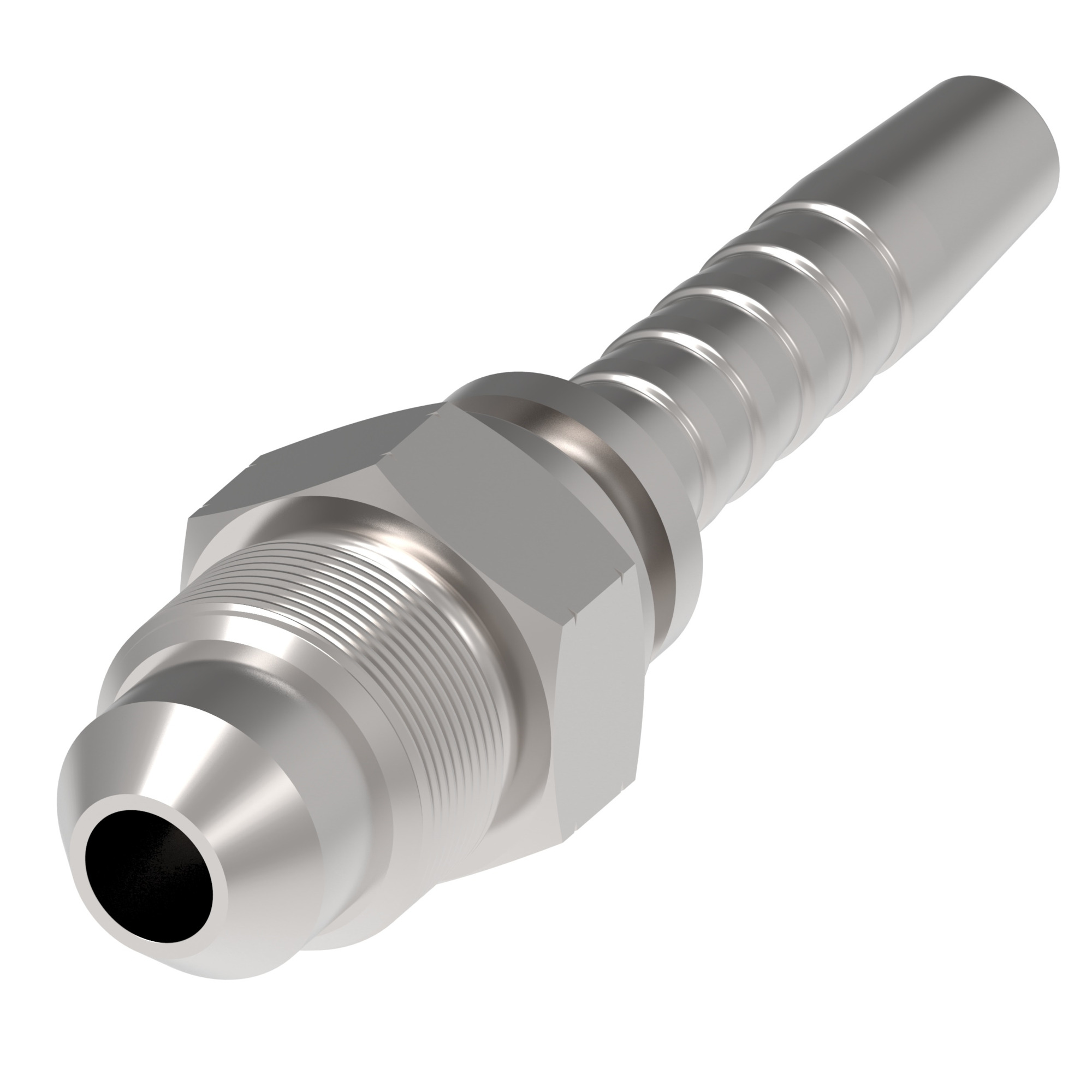

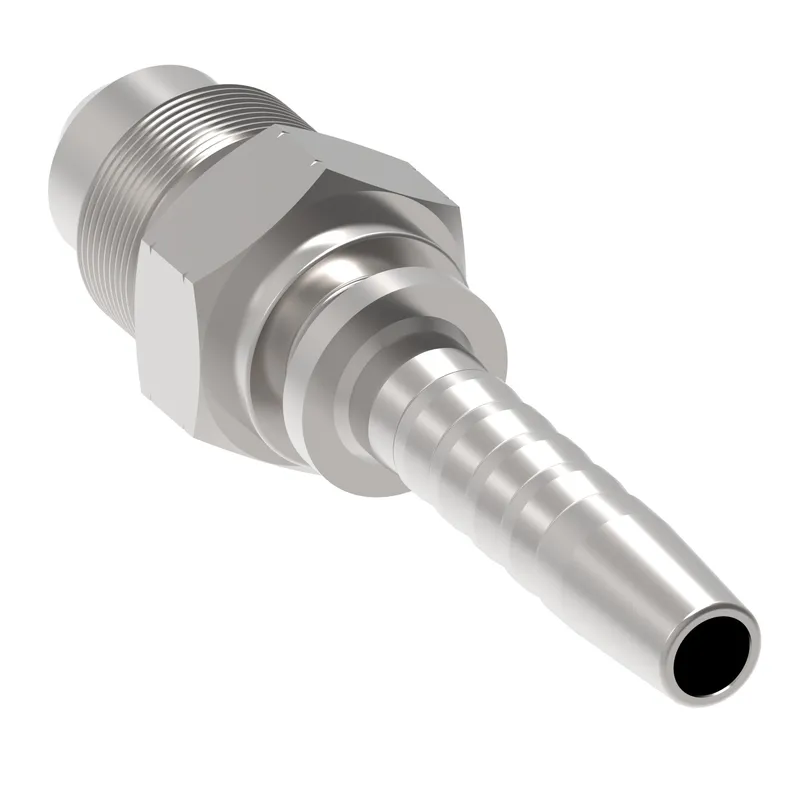

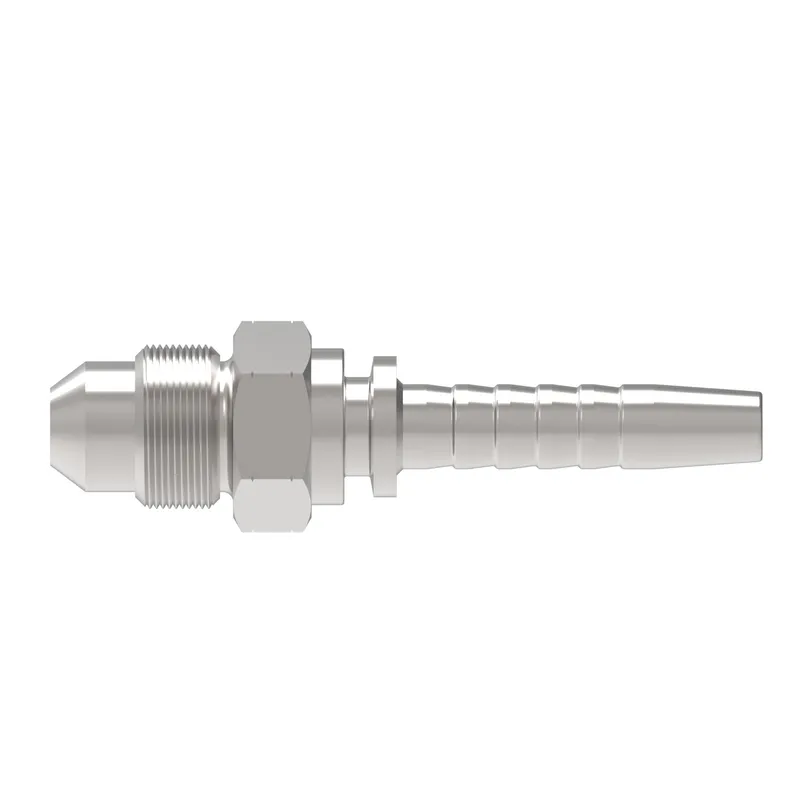

HOSE NIPPLE ASSY,2P/10,JIC-M/10,CS,STR

MPN
16712-10-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16712-10-10Z?

Danfoss HOSE NIPPLE ASSY,2P/10,JIC-M/10,CS,STR, manufacturer part number 16712-10-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.990
A dimension MM76.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.900
Construction StyleCrimp
End connection torque57-62 lb-ft(77-85 Nm)
End size 1-10
End type 1Male 37 degree
Finish platingZinc plating
Hex size 1 IN0.940
Hex size 1 MM23.876
Hose cut off factor IN1.410
Hose cut off factor MM36.000
Hose size-10
Inside diameter IN0.4700
Inside diameter MM12.0000
Product height in1.300
Product height mm33.020
Product length in2.990
Product length mm75.946
Product materialCarbon steel
Product width in1.300
Product width mm33.020 mm
SeriesWinner 2-Piece
Thread sealantNo
Thread size 17/8-14 UNF
