Danfoss 16711Y-04-04CNZ

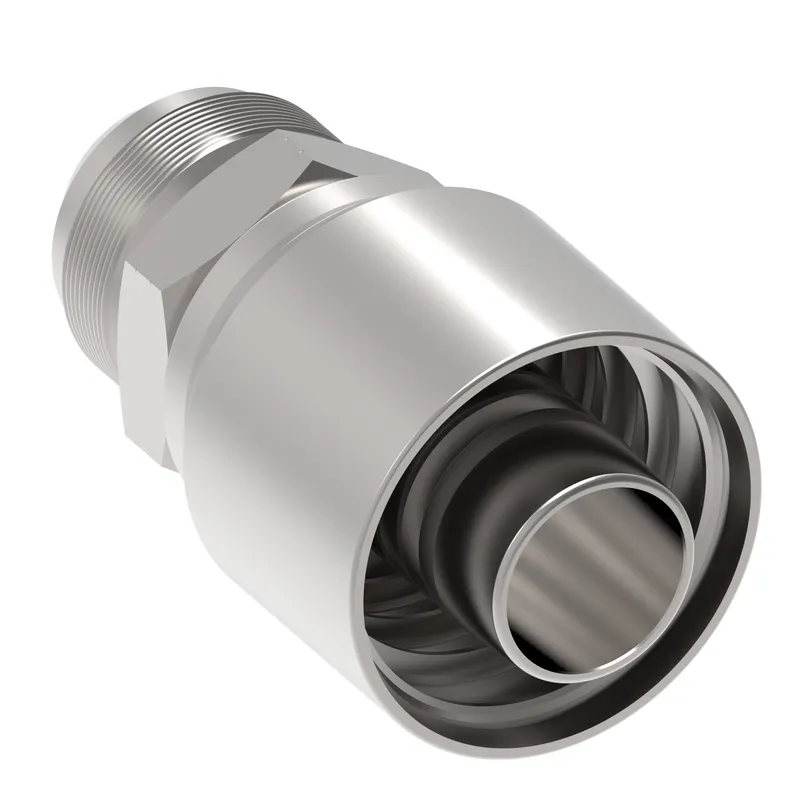

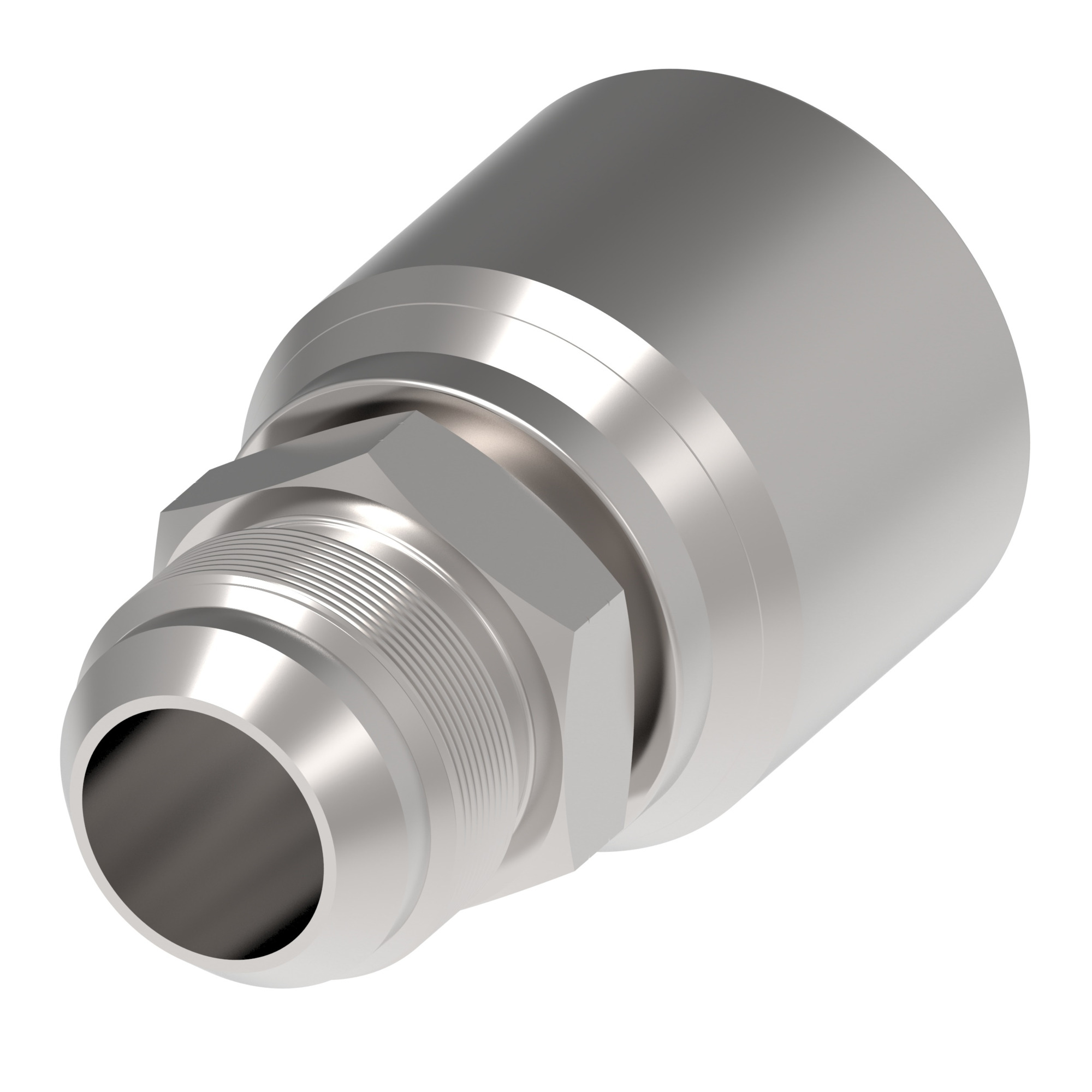

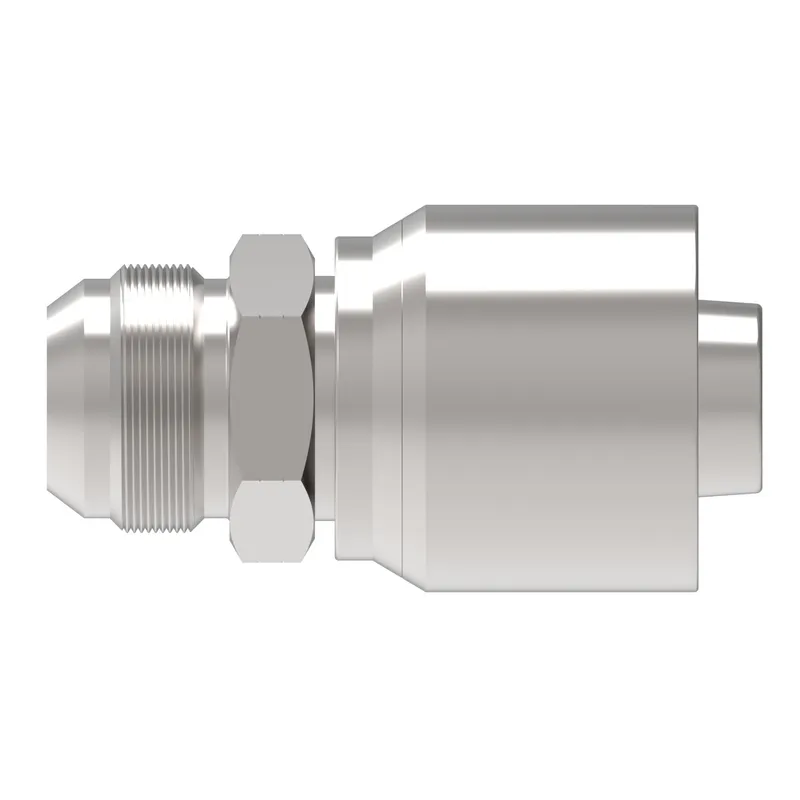

HOSE NIPPLE ASSY,1P/04,JIC-M/04,CS,STR

MPN
16711Y-04-04CNZ
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16711Y-04-04CNZ?

Danfoss HOSE NIPPLE ASSY,1P/04,JIC-M/04,CS,STR, manufacturer part number 16711Y-04-04CNZ. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.150
A dimension MM54.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.250
Compatible hose ID MM6.400
Construction StyleCrimp
End connection torque11-12 lb-ft(15-16 Nm)
End Type 1Male 37 degree
Finish platingZinc plating
Hex size 1 IN0.470
Hex size 1 MM11.938
Hose cut off factor IN1.040
Hose cut off factor MM26.500
Hose size-4
Inside diameter IN0.157
Inside diameter MM4.000
Product height in0.900
Product height mm22.860
Product length in2.140
Product length mm54.356
Product materialCarbon steel
Product width in0.900
Product width mm22.86
Thread sealantNo
Thread size 17/16-20 UNF
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40

16711Y-04-04CNZ: frequently asked questions

When can 16711Y-04-04CNZ be shipped?

16711Y-04-04CNZ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 16711Y-04-04CNZ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 16711Y-04-04CNZ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 16711Y-04-04CNZ, subject to availability and destination.

More Danfoss (Drives) parts

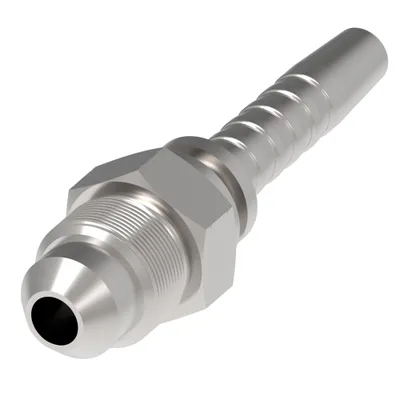

Danfoss 16711-10-12Z – HOSE NIPPLE ASSY,2P/12,JIC-M/10,CS,STR
