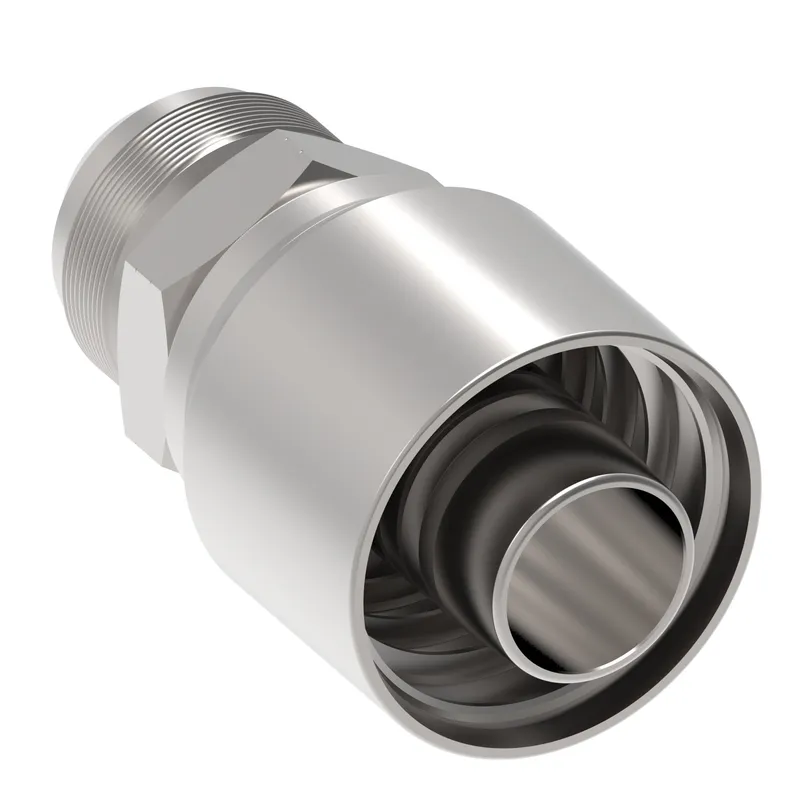

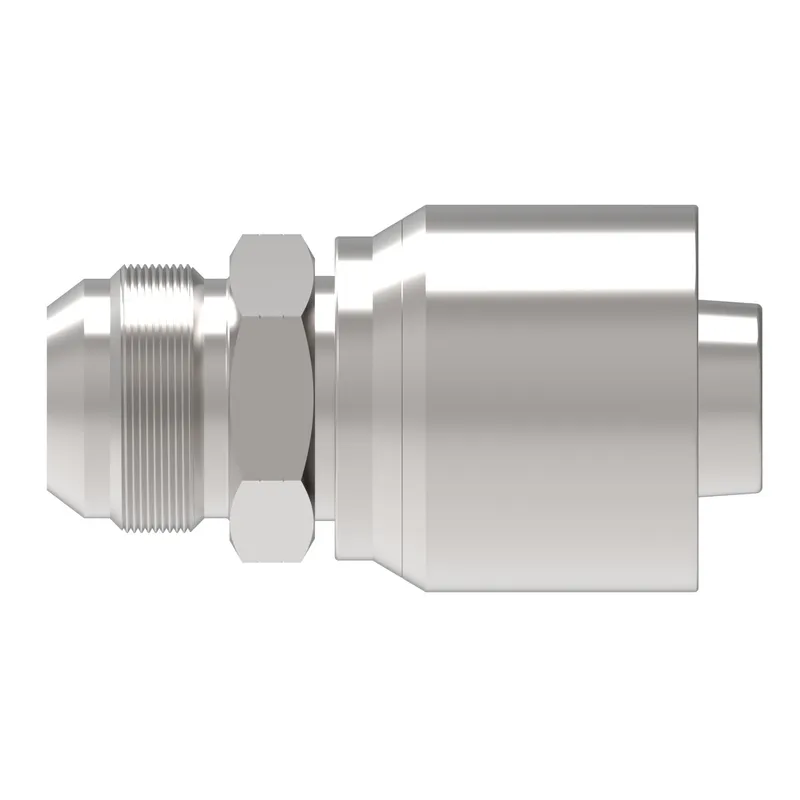

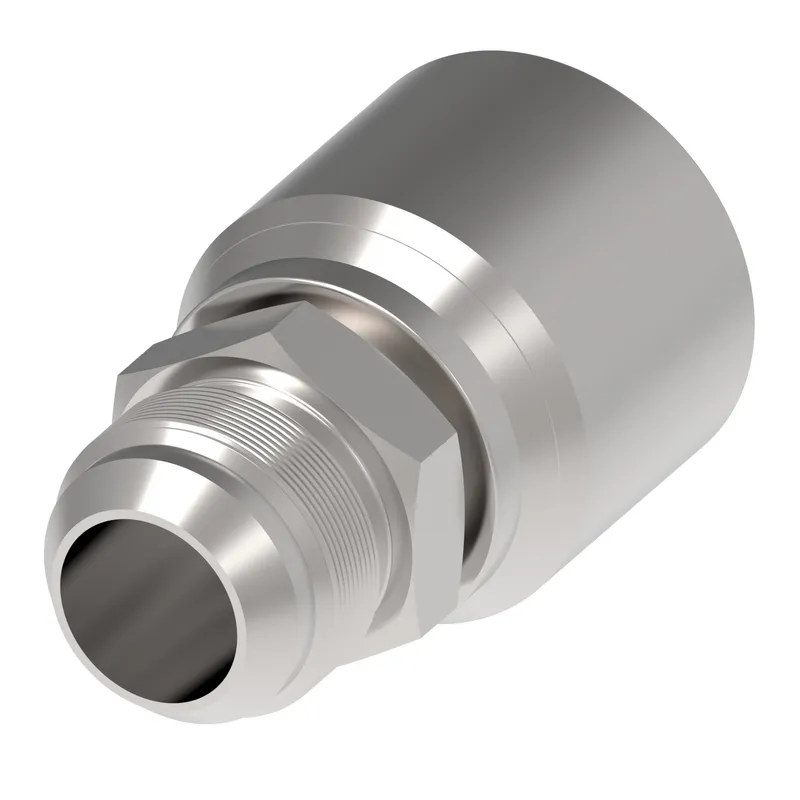

Danfoss 16711Y-06-06Z

HOSE NIPPLE ASSY,1P/06,JIC-M/06,CS,STR

MPN: 16711Y-06-06Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16711Y-06-06Z?

Danfoss HOSE NIPPLE ASSY,1P/06,JIC-M/06,CS,STR, manufacturer part number 16711Y-06-06Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.220
A dimension MM	56.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.380
Compatible hose ID MM	9.500
Construction Style	Crimp
End connection torque	18-20 lb-ft(24-28 Nm)
End size 1	-6
End Type 1	Male 37 degree
Finish plating	Zinc plating
Hex size 1 IN	0.669
Hex size 1 MM	17.000
Hex size 2 IN	0.000
Hose cut off factor IN	1.040
Hose cut off factor MM	26.500
Hose size	-6
Inside diameter IN	0.280
Inside diameter MM	7.000
Product height in	1.075
Product height mm	27.305
Product length in	2.220
Product length mm	56.388
Product material	Carbon steel
Product width in	1.075
Product width mm	27.305
Thread sealant	No
Thread size 1	9/16-18 UNF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
