Danfoss 16711-32-32Z

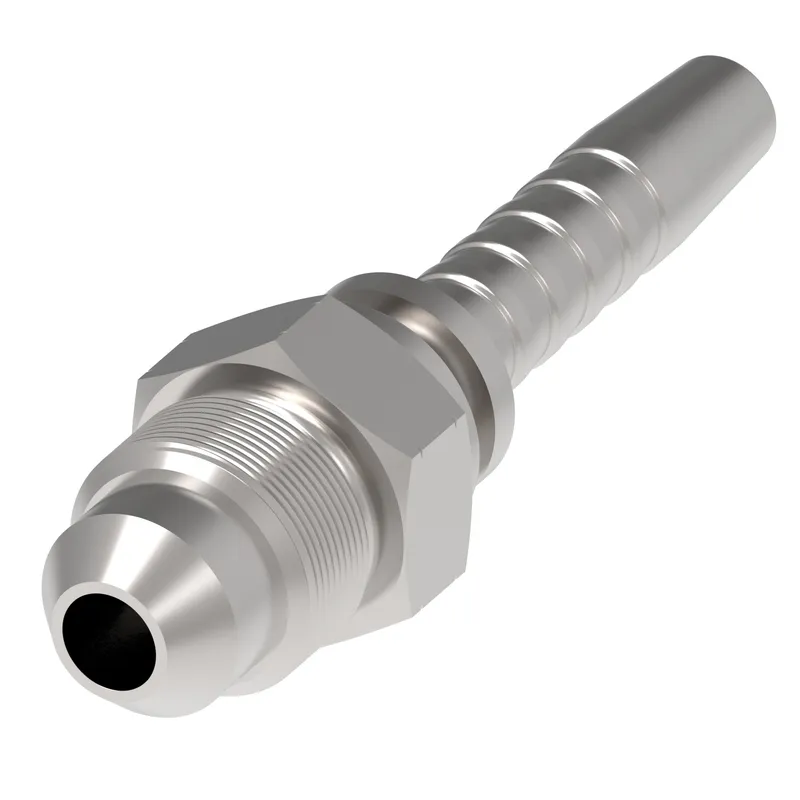

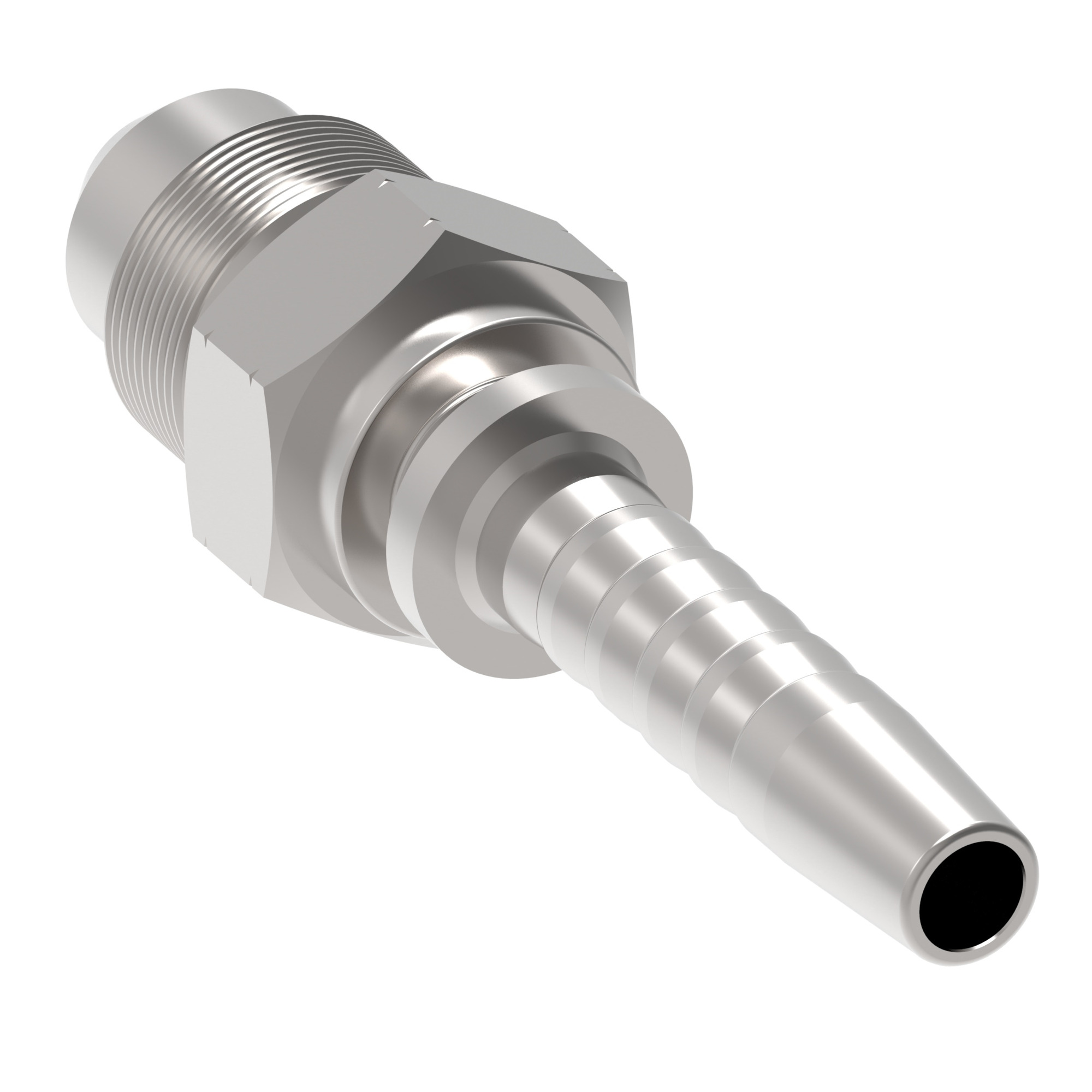

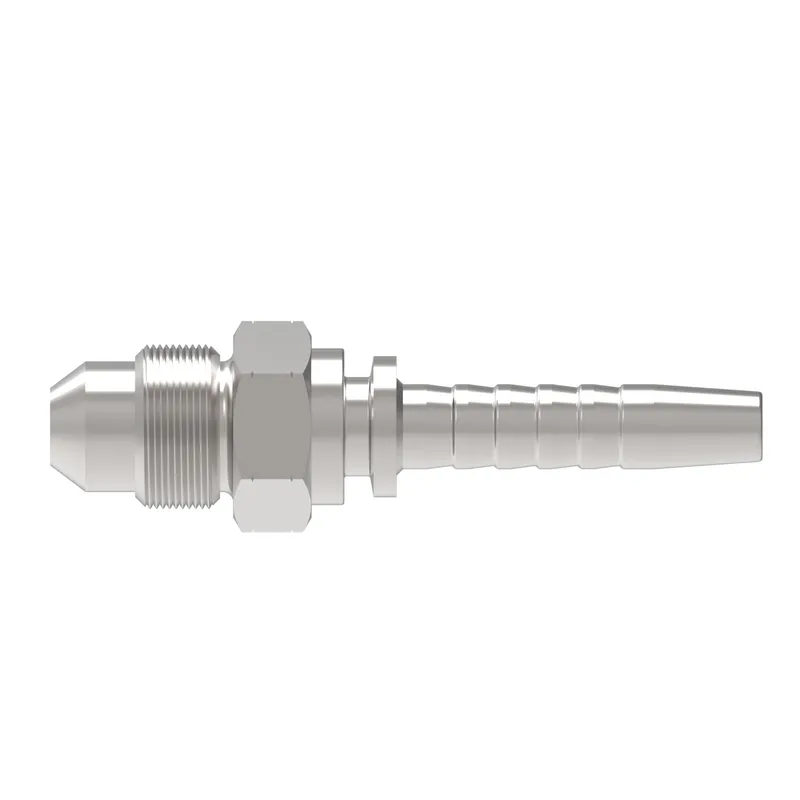

HOSE NIPPLE ASSY,2P/32,JIC-M/32,CS,STR

MPN: 16711-32-32Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16711-32-32Z?

Danfoss HOSE NIPPLE ASSY,2P/32,JIC-M/32,CS,STR, manufacturer part number 16711-32-32Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	5.280
A dimension MM	134.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	2.000
Compatible hose ID MM	50.800
Construction Style	Crimp
End connection torque	245-258 lb-ft(334-352 Nm)
End size 1	-32
End Type 1	Male 37 degree
Finish plating	Zinc plating
Hex size 1 IN	2.560
Hex size 1 MM	65.024
Hose cut off factor IN	2.440
Hose cut off factor MM	62.000
Hose size	-32
Inside diameter IN	1.690
Inside diameter MM	43.000
Product height in	2.950
Product height mm	74.930
Product length in	5.270
Product length mm	133.858
Product material	Carbon steel
Product width in	2.560
Product width mm	65.024
Series	Winner 2-Piece
Thread sealant	No
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
