Danfoss 16711-10-12Z

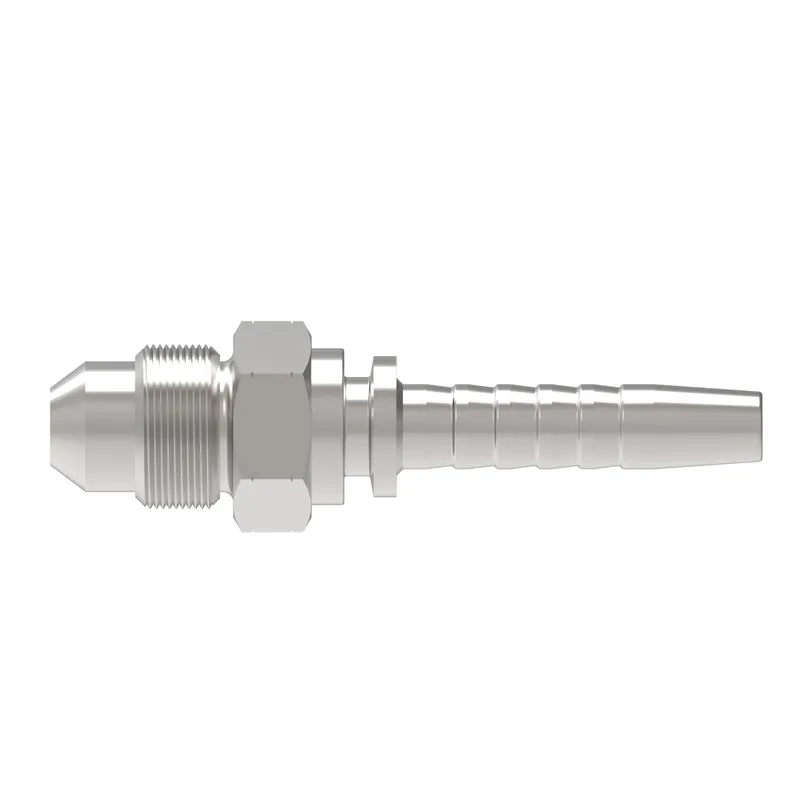

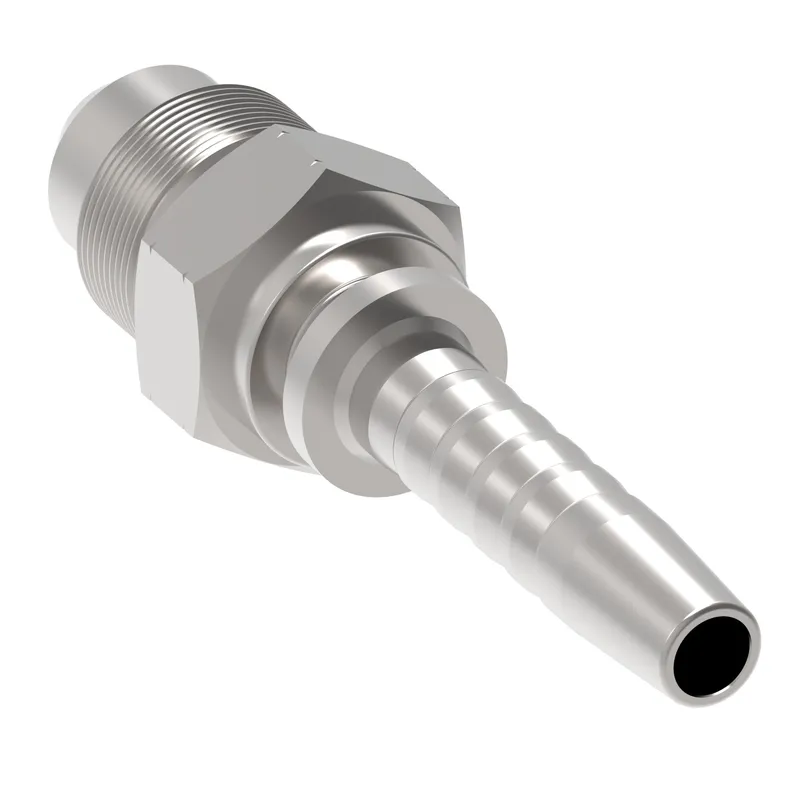

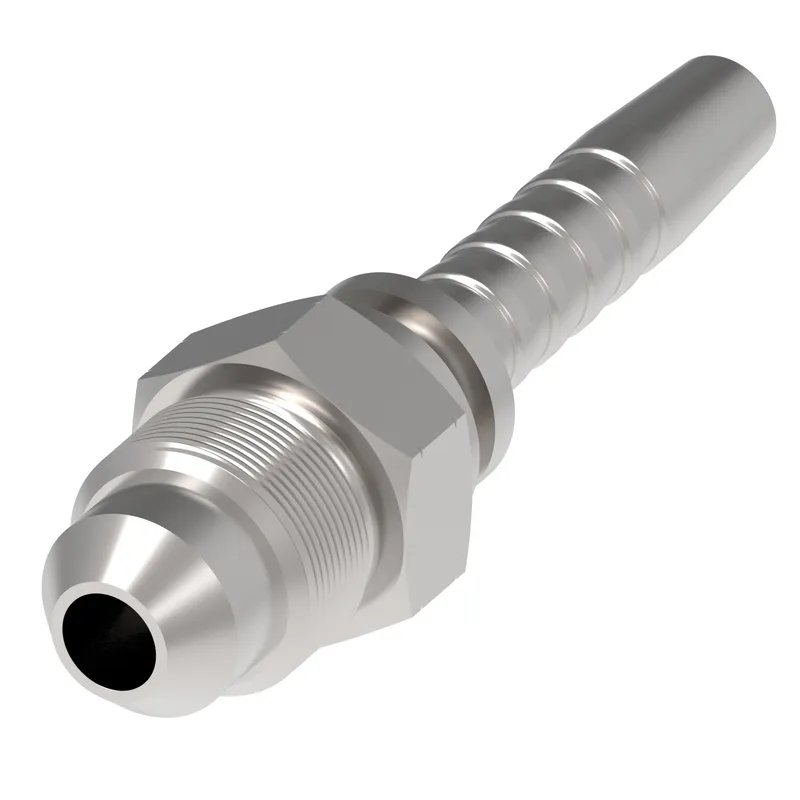

HOSE NIPPLE ASSY,2P/12,JIC-M/10,CS,STR

MPN: 16711-10-12Z
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 16711-10-12Z?

Danfoss HOSE NIPPLE ASSY,2P/12,JIC-M/10,CS,STR, manufacturer part number 16711-10-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	2.970
A dimension MM	75.500
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End connection torque	57-62 lb-ft(77-85 Nm)
End size 1	-10
End Type 1	Male 37 degree
Finish plating	Zinc plating
Hex size 2 MM	27.000
Hose cut off factor IN	1.450
Hose cut off factor MM	37.000
Hose size	-12
Inside diameter IN	0.480
Inside diameter MM	12.300
Product height in	1.220
Product height mm	30.988
Product length in	2.970
Product length mm	75.438
Product material	Carbon steel
Product width in	1.060
Product width mm	26.924
Proposition 65	Cancer and Reproductive Harm
Series	Winner 2-Piece
Thread size 1	7/8-14 UNF
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
