Danfoss 14211-10-08ZF

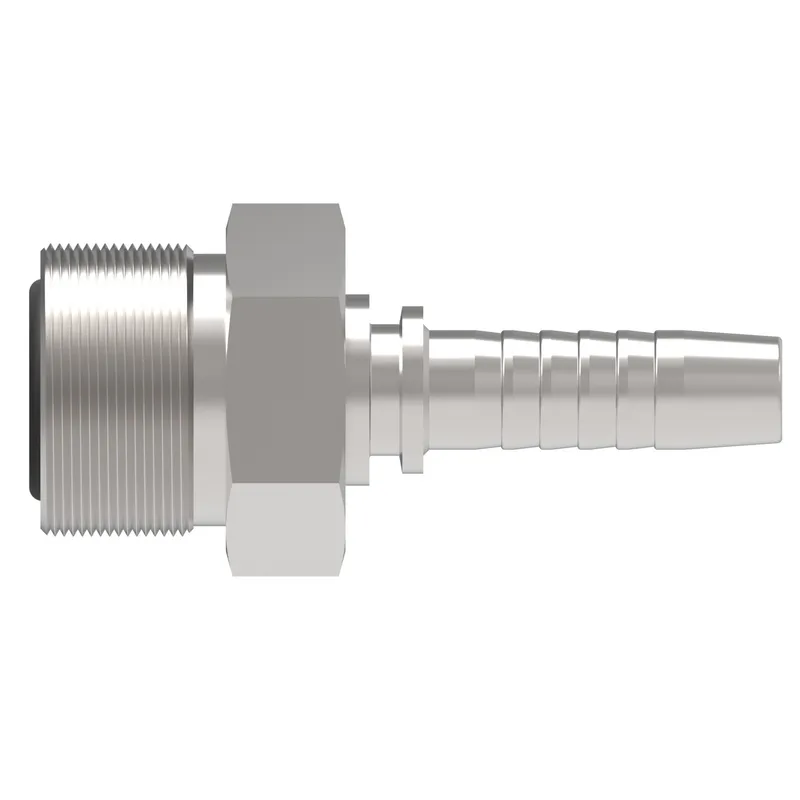

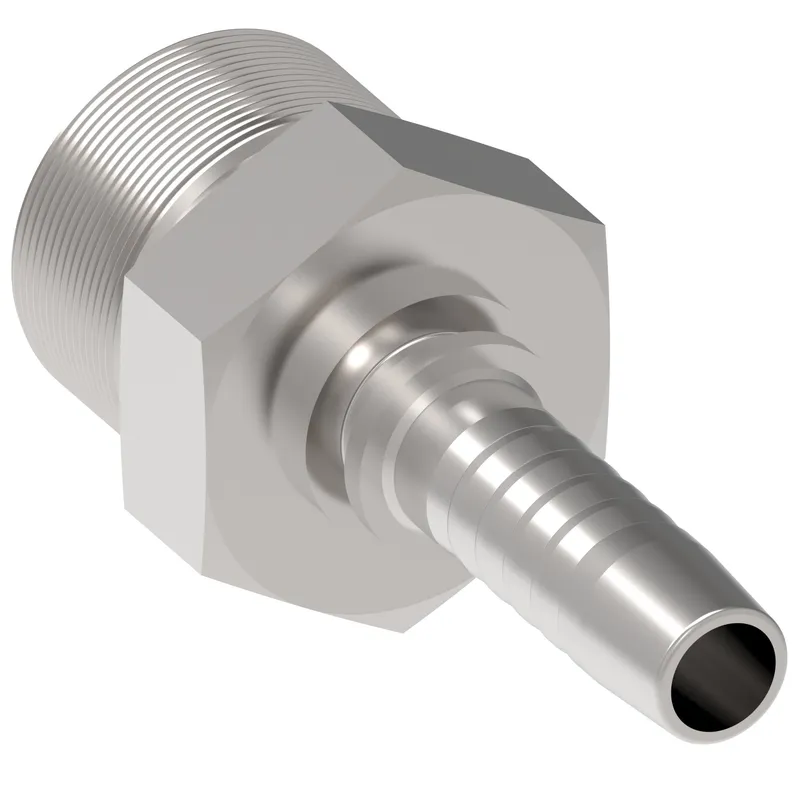

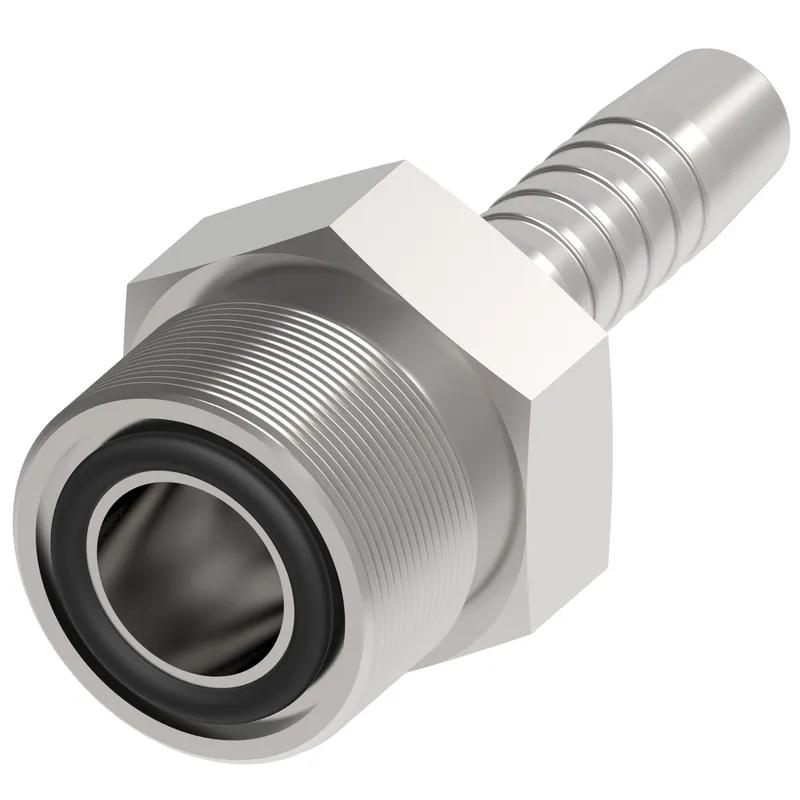

HOSE NIPPLE ASSY,2P/08,ORS-M/10,CS,STR

MPN: 14211-10-08ZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14211-10-08ZF?

Danfoss HOSE NIPPLE ASSY,2P/08,ORS-M/10,CS,STR, manufacturer part number 14211-10-08ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146191533
A dimension IN	2.520
A dimension MM	64.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.500
Compatible hose ID MM	12.700
Compatible hoses	EC110, EC115, EC210, EC215
Construction Style	Crimp
End connection torque	46-50 lb-ft(62-68 Nm)
End size 1	-10
End size 2	-8
End Type 1	Male ORFS
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.063
Hex size 1 MM	27.000
Hex size 2 IN	1.063
Hex size 2 MM	27.000
Hose cut off factor IN	1.280
Hose cut off factor MM	32.500
Hose size	-8
Inside diameter IN	0.390
Inside diameter MM	10.000
Product height in	1.224
Product height mm	31.100
Product length in	2.519
Product length mm	64.000
Product material	Carbon steel
Product width in	1.063
Product width mm	27
Seal material	Nitrile (NBR)
Series	Winner 2-Piece
Thread sealant	No
Thread size 1	1-14 UNS
Working pressure max BAR	621
Working pressure max PSI	9100
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
