Danfoss 14211-12-10ZF

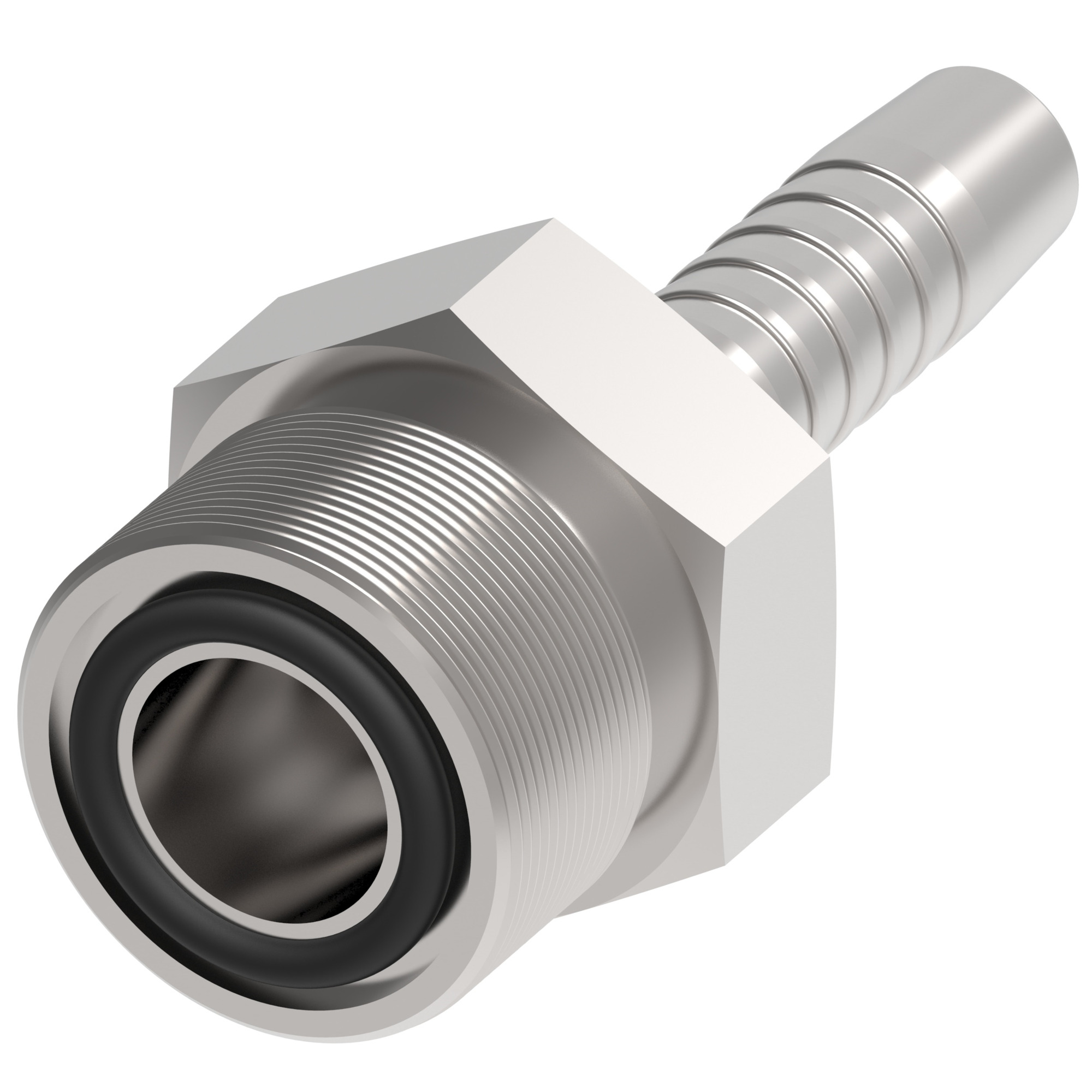

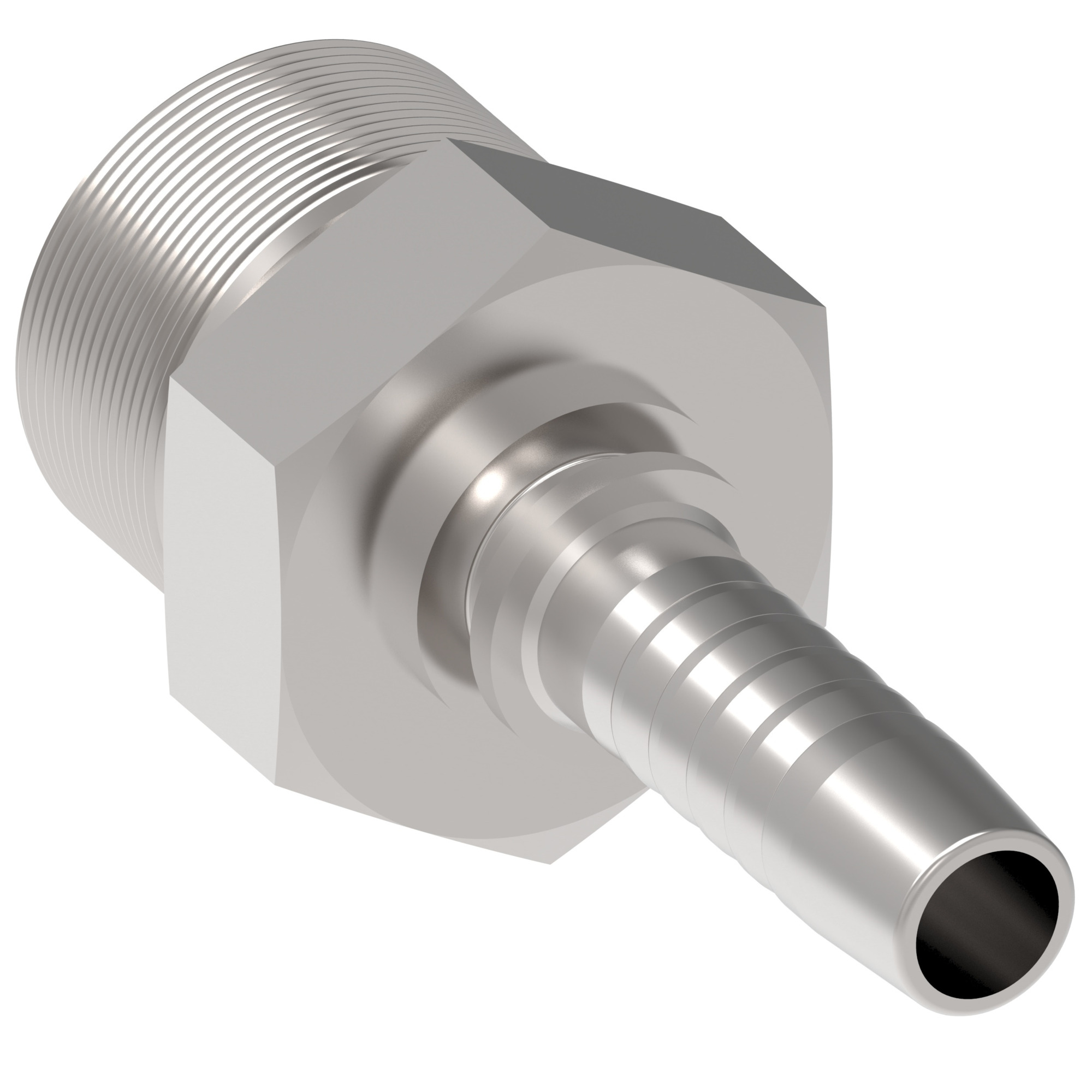

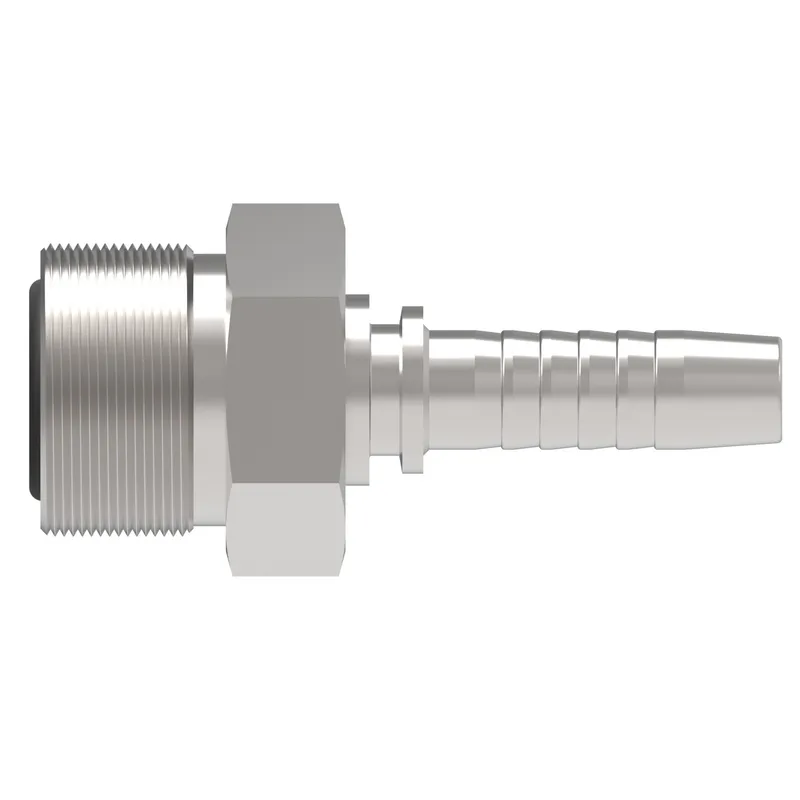

HOSE NIPPLE ASSY,2P/10,ORS-M/12,CS,STR

MPN: 14211-12-10ZF
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 14211-12-10ZF?

Danfoss HOSE NIPPLE ASSY,2P/10,ORS-M/12,CS,STR, manufacturer part number 14211-12-10ZF. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

EAN/UPC	678146191540
A dimension IN	2.760
A dimension MM	70.000
Angle shape	Straight
Brand	Winner by Danfoss
Compatible hose ID IN	0.620
Compatible hose ID MM	15.900
Compatible hoses	EC110, EC115, EC210, EC215
Construction Style	Crimp
End connection torque	65-70 lb-ft(88-95 Nm)
End size 1	-12
End size 2	-6
End Type 1	Male ORFS
End Type 2	Line/hose/tube
Finish plating	Zinc plating
Hex size 1 IN	1.259
Hex size 1 MM	31.979
Hex size 2 IN	1.259
Hex size 2 MM	32.000
Hose cut off factor IN	1.420
Hose cut off factor MM	36.000
Hose size	-10
Inside diameter IN	0.470
Inside diameter MM	12.000
Product height in	1.440
Product height mm	36.576
Product length in	2.755
Product length mm	69.977
Product material	Carbon steel
Product width in	1.260
Product width mm	32.004
Seal material	Nitrile (NBR)
Thread sealant	No
Thread size 1	1 3/16-12 UN
Working pressure max BAR	414
Working pressure max PSI	6000
Working temperature max C	100
Working temperature max F	212
Working temperature min C	-40
Working temperature min F	-40
