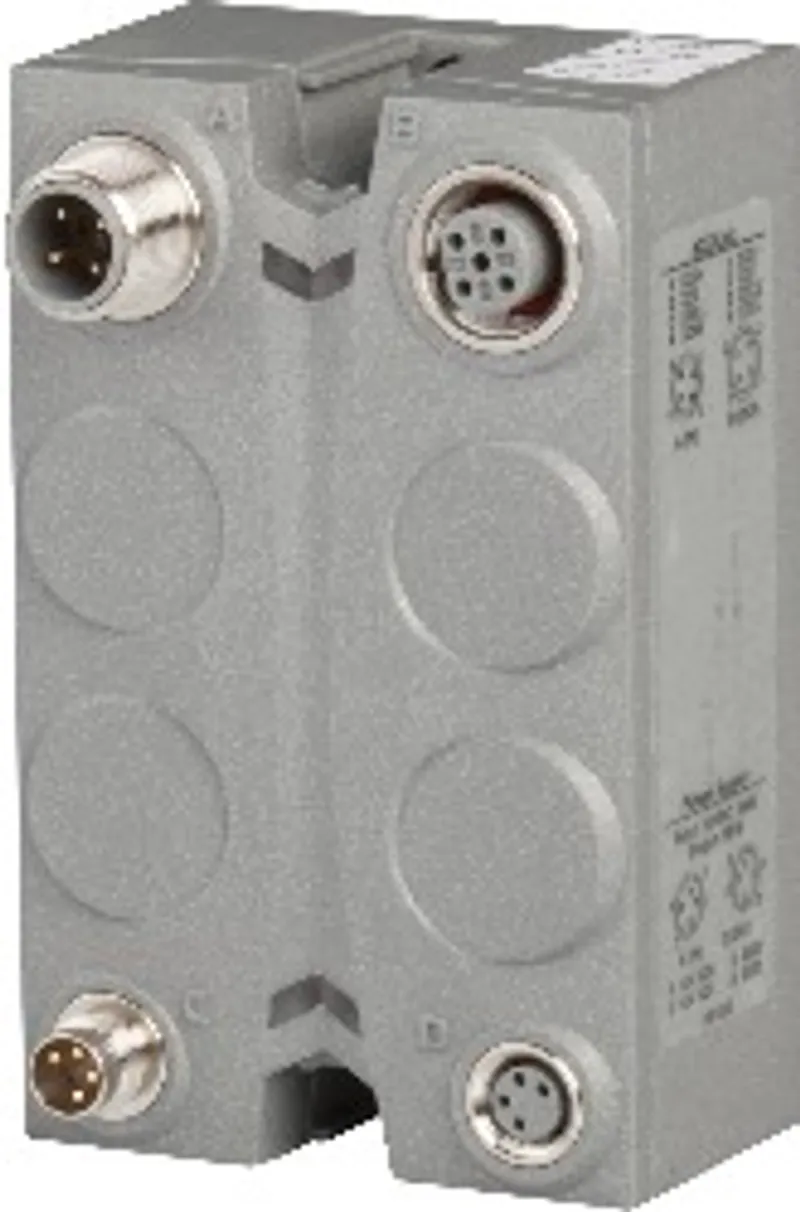

B&R X67PS1300
System power supply modules
- MPN
- X67PS1300
- Category
- System supply modules
€73.14excl. VAT & shipping
In stock — 8 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X67PS1300?
Electrical isolation of supply and X2X Link power supply
Protection with redundancy during parallel operation of multiple system supply modules
Short circuit protection
Overload protection
This system supply module converts the 24 VDC I/O supply voltage into the electrically isolated X2X Link power supply. The module provides 15 W of output power for additional X67 modules on the bus.
Specifications
Short description
| System power supply modules | Galvanically isolated X2X Link power supply |
General information
| Connection type – X2X Link power supply output | M12, B-coded |
| Connection type – X2X Link power supply input | M8, 4-pin |
| Power consumption – Internal | 3 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA IIA T5 Gc; IP67, Ta = 0 - Max. 60°C; TÜV 05 ATEX 7201X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| Status indicators | Input voltage OK, output voltage OK |
X2X Link power supply input
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Nominal current | 0.75 A |
| Fuse | Integrated |
X2X Link power supply output
| Nominal voltage | 20 VDC |
| Nominal current | 0.75 A |
| Nominal output power | 15 W |
| Efficiency | >80% |
| Parallel connection | Yes (note: In parallel operation, it is only permitted to expect 90% of the nominal power. It is important to ensure that all power supply units operated in parallel are switched on and off simultaneously.) |
| Redundant operation | Yes, with equal input voltages |
| Supply failure bridging | >5 ms at 24 VDC In and I Out = 0.75 A |
| Overload characteristics | Short-circuit proof, overload-proof |
| Insulation voltage between input and output | 500 V eff |
I/O power supply
| Nominal voltage | 24 VDC |
| Voltage range | 18 to 30 VDC |
| Integrated protective function | Reverse polarity protection |
Electrical properties
| Electrical isolation | X2X Link supply isolated from X2X Link power supply |
Operating conditions
| Mounting orientation – Any | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -25 to 60°C |
| Temperature – Derating | - |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
Mechanical properties
| Dimensions – Width | 53 mm |
| Dimensions – Height | 85 mm |
| Dimensions – Depth | 42 mm |
| Torque for connections – M8 | Max. 0.4 Nm |
| Torque for connections – M12 | Max. 0.6 Nm |
| Weight | 225 g |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
X67PS1300: frequently asked questions
When can X67PS1300 be shipped?
X67PS1300 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X67PS1300 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X67PS1300 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67PS1300, subject to availability and destination.
