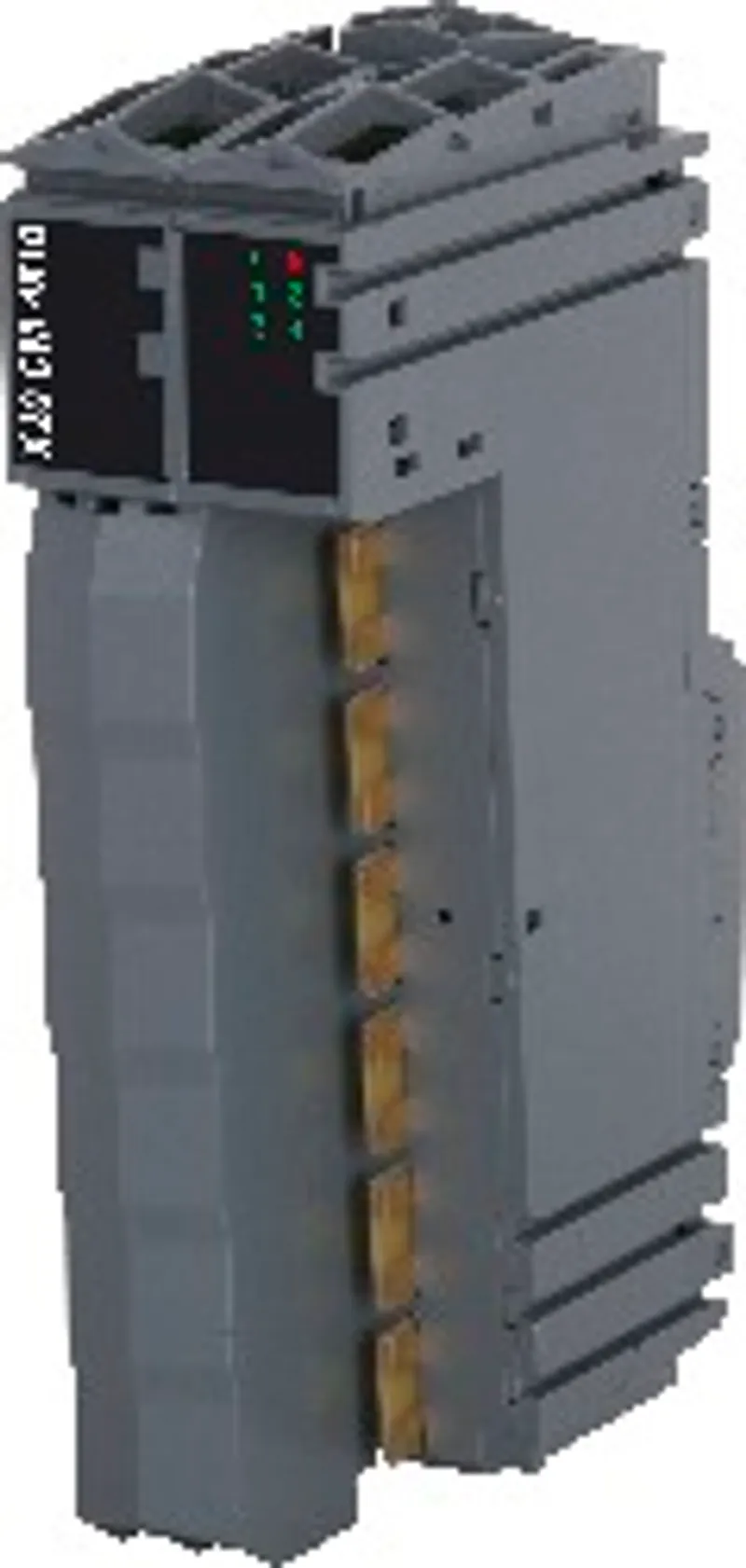

B&R X20CM4810
I/O module, X20 4-channel analog input module for vibration…
- MPN
- X20CM4810
- Category
- Other functions
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R X20CM4810?
4-channel vibration measurement and analysis module
24-bit resolution at 51.562 kHz
IEPE supply
Internal calculation of an extensive range of condition parameters
Data buffer upload
This compact module provides a system for measuring and analyzing vibrations for use in applications such as condition monitoring for machinery and equipment.
The measurement unit consists of 4 vibration inputs with 24-bit converter resolution and a sampling frequency of 51.562 kHz. Each of the inputs has a separately activated constant current source to supply IEPE sensors.
Signal conditioning algorithms integrated in the module include configurable high and low-pass filters, an envelope curve generator and a Fourier transform, among many others.
Various characteristic values and configurable frequency bands are available to ensure seamless signal evaluation. The module-internal calculation minimizes the load on the bus and PLC.
Whether used for traditional condition monitoring or as a means of process optimization, the maximum evaluable frequency of 10 kHz and maximum frequency resolution of under 63 mHz make it suitable for almost any application. If desired, it can also be used as a standard input module.
The ability to upload all values in the time and frequency domain also allow measurements to be evaluated externally or archived.
Specifications
Short description
| I/O module | X20 4-channel analog input module for vibration measurement and analysis of condition monitoring tasks |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Power consumption – Bus | 0.01 W |
| Power consumption – Internal I/O | 2.5 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Insulation voltage between channel and bus | 500 V eff |
| Nominal voltage | 24 VDC ±20% |
| B&R ID code | 0xC8F9 |
| Status indicators | Run, error, vibration inputs 1 to 4 |
Analog inputs
| Open-circuit detection – Per channel | Yes |
| Open-circuit detection – At minimum supply voltage | Starting at 17 V (or greater) for more than 1 ms (note: Input voltage: 19.2 V) |
| Open-circuit detection – At nominal supply voltage | Starting at 21.3 V (or greater) for more than 1 ms (note: Input voltage: 24 V) |
| Open-circuit detection – At maximum supply voltage | Starting at 25.5 V (or greater) for more than 1 ms (note: Input voltage: 28.8 V) |
| Quantity | 4 |
| Input type | IEPE sensor: Acceleration |
| Digital converter resolution | 24-bit |
| Permissible input signal | ±10 VAC |
| Conversion procedure | Sigma-delta |
| Type | Vibration input |
| Sampling frequency | 51.5625 kHz |
| Input high pass cutoff frequency | 34 mHz |
| Input low pass cutoff frequency | 19.75 kHz |
| Downsampling | 200 Hz, 500 Hz, 1 kHz, 2 kHz, 5 kHz, 10 kHz (configurable) |
| Frequency resolution of spectra | 0.0629 Hz, 0.1574 Hz, 0.3147 Hz, 0.6294 Hz, 1.5736 Hz, 3.1471 Hz |
| Sensor power supply | IEPE, 5 mA constant current source (4.9 - 5.5 mA), can be switched off for each channel |
Electrical properties
| Electrical isolation | Channel isolated from bus ; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 50°C |
| Temperature – Vertical mounting orientation | -25 to 45°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM31 separately. |
| Pitch | 25 +0.2 mm |
Accessories
Required accessories (order separately)
| X20BM31 | Bus modules — Bus module for double-width I/O modules; The internal I/O supply is interconnected The bus module serves as a basis for all double-width X2… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Optional accessories (9)
| 0ACC1000.01-1 | Sensor cable — Cable for accelerometer, length 100 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed |
| 0ACC0500.01-1 | Sensor cable — Cable for accelerometer, length 50 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed |
| 0ACC0200.01-1 | Sensor cable — Cable for accelerometer, length 20 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed |
| 0ACC0150.01-1 | Sensor cable — Cable for accelerometer, length 15 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed |
| 0ACC0100.01-1 | Sensor cable — Cable for accelerometer, length 10 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed |
| 0ACC0050.01-1 | Sensor cable — Cable for accelerometer, length 5 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed |
| 0ACC0020.01-1 | Sensor cable — Cable for accelerometer, length 2 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed |
| 0ACS100A.90-2 | Sensors — Accelerometer, nominal sensitivity 100 mV/g, output on side external hexagon |
| 0ACS100A.00-1 | Sensors — Accelerometer, nominal sensitivity 100 mV/g, top exit |
