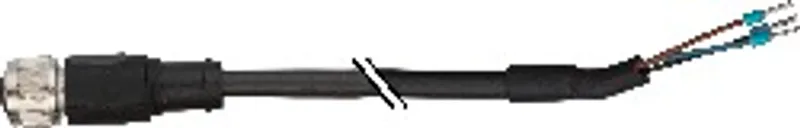

B&R 0ACC0200.01-1
Cable for accelerometer, length 20 m, 2x 0.34 mm²
- MPN
- 0ACC0200.01-1
- Category
- Sensor cable
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 0ACC0200.01-1?
Cable for accelerometer, length 20 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
Specifications
General information
| Cable cross section – AWG | 2x 22 AWG, 1x 24 AWG |
| Cable cross section – mm² | 2x 0.34 mm², 1x 0.25 mm² |
| Coding | A |
| Durability | ROHS 2002/92/EC; Can be used in industrial buildings and outdoors |
| Short description | Cable for accelerometer, 20 m |
| Number of pins | 3 |
| Type | Connection cables |
Cable construction
| Outer jacket – Material | PUR |
| Outer jacket – Color | Black gray RAL 7021 |
| Wires – Wire insulation | ≥0.21 mm |
| Wires – Wire colors | Brown, blue, black |
| Wires – Shield | Braided wire shield made of copper wires, coverage 80% |
| Wires – Stranding | 3 wires stranded lengthwise |
| Inner jacket | Halogen-free, shielded |
Electrical properties
| Conductor resistance | Max. 58 Ω/km (at 20°C) |
| Insulation resistance | Line: ≥100 GΩ/km (at 20°C); Connector: ≥100 MΩ |
Operating conditions
| Degree of protection per EN 60529 – Cables | IP67 |
| Degree of protection per EN 60529 – M12 connector | IP67 |
| Pollution degree per EN 61800-5-1 | 3 |
Ambient conditions
| Temperature – Fixed installation | -40 to 80°C |
| Temperature – Flexible installation | -25 to 80°C |
Mechanical properties
| Dimensions – Length | 20 m |
| Dimensions – Diameter | 4.65 mm ±0.15 mm |
| Bend radius – Fixed installation | 23 mm |
| Bend radius – Flexible installation | 47 mm |
| Bend radius – After installation | 47 mm |
| Drag chain data – Acceleration | 10 m/s² |
| Drag chain data – Flex cycles | 10000000 |
| Drag chain data – Velocity | 3 m/s |
| Weight | 0.643 kg |
0ACC0200.01-1: frequently asked questions
When can 0ACC0200.01-1 be shipped?
0ACC0200.01-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 0ACC0200.01-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 0ACC0200.01-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0ACC0200.01-1, subject to availability and destination.
