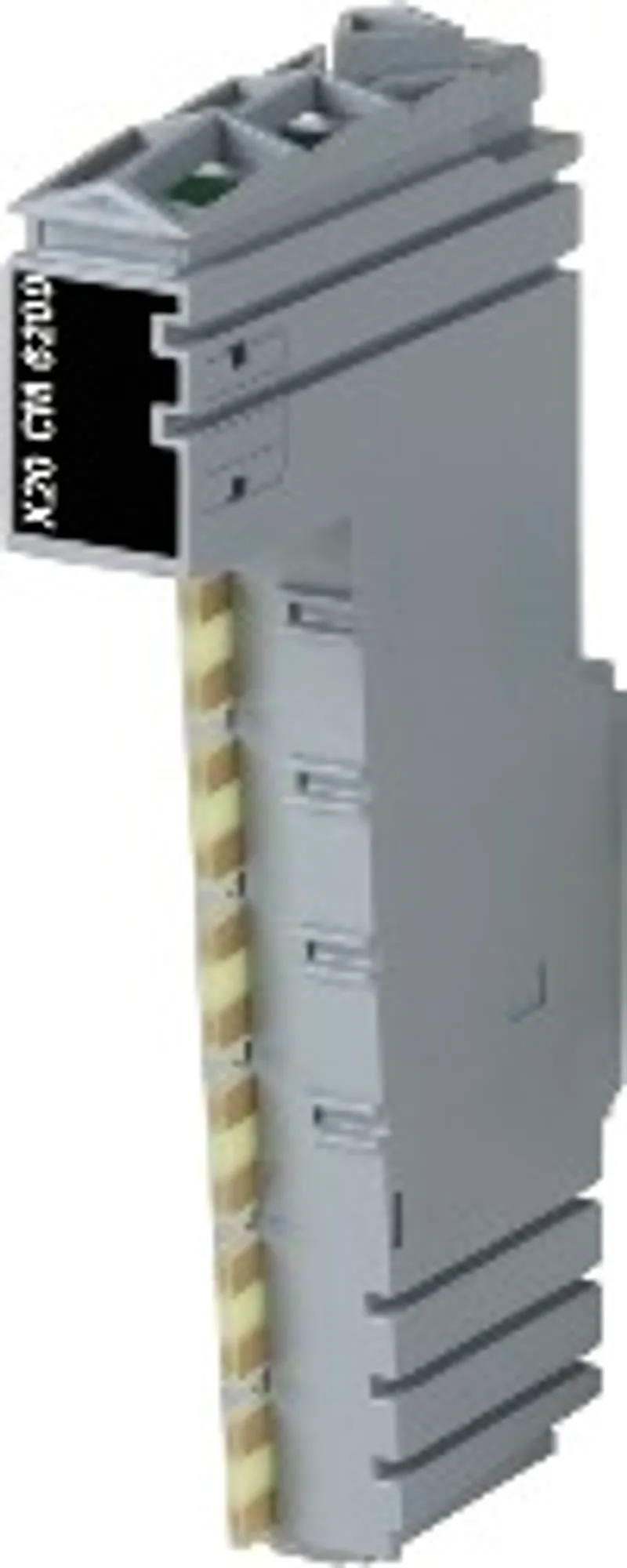

B&R X20CM6209

I/O module, 6 diodes, 24 VDC

MPN: X20CM6209
Category: Other functions

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20CM6209?

6 potential-free diodes

24 VDC

1 A current load for each diode

This module is a diode array module with six diodes. The diodes can be used as freewheeling diodes or decoupling diodes.

The diode array module has no connection to X2X Link. It behaves like a dummy module.

Specifications

Short description

I/O module

6 diodes, 24 VDC

General information

Power consumption – Bus	-
Power consumption – Internal I/O	-
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – KC	Yes
B&R ID code	0xA7A1

Diode array

Variant	Schottky diode
Nominal voltage	24 VDC
Nominal input current	1 A
Threshold voltage	Typ. 0.3 V (note: At nominal current (1 A) and standard temperature (25°C). The actual threshold voltage depends on both ambient temperature and current flow.)
Input voltage	24 VDC -15% / +20%
Summation current	6 A, see section "Derating".
Short-circuit proof	No

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	0 to 55°C
Temperature – Vertical mounting orientation	0 to 50°C
Temperature – Derating	See section "Derating".
Temperature – Storage	-25 to 70°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB12, ; order 1x bus module X20BM11 1x power supply bus module X20BM01 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB12	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

Certificates (5)
