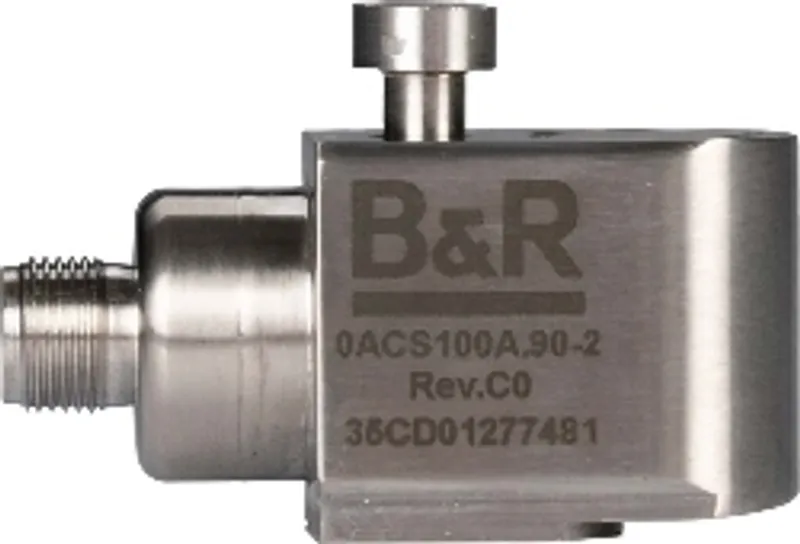

B&R 0ACS100A.90-2

Accelerometer, nominal sensitivity 100 mV/g

MPN: 0ACS100A.90-2
Category: Sensors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0ACS100A.90-2?

Accelerometer, nominal sensitivity 100 mV/g, output on side external hexagon

Specifications

Sensor properties

Natural resonance (installed)	30 kHz (nominal)
Sensitivity	100 mV/g ±10% nominal 80 Hz at 22°C
Frequency response	2 Hz (120 cpm) to 10 kHz (600 kcpm) ±5%; 1.5 Hz (90 cpm) to 12 kHz (720 kcpm) ±10%; 0.8 Hz (48 cpm) to 15 kHz (900 kcpm) ±3 dB
Isolation	Isolated base
Measurement range	±50 g
Cross-sensitivity	<5%

Electrical properties

Electrical disturbances	Max. 0.1 mg
Broadband resolution	0.2 mg (200 µg) over 1 Hz to 15 kHz
Spectral noise	10 Hz to 10 µg/Hz; 100 Hz to 4 µg/Hz; 1 kHz to 3 µg/Hz
Current range	0.5 to 8 mA
Bias voltage	10 to 12 VDC
Settling time	2 s
Output impedance	Max. 200 Ω
Housing isolation	>10 8 Ω at 500 V

Operating conditions

Degree of protection per EN 60529

IP67

Ambient conditions

Temperature – Operation	-55 to 140°C
Max. shock resistance	5000 g
Emitted interferences	EN 61326-1:2013
Immunity to interference	EN 61326-1:2013

Mechanical properties

Housing – Material	Stainless steel
Installation	M8 x 1.25 x 35 mm screw, included in delivery
Weight	170 g
Measurement element	PZT piezoelectric crystal (lead zirconate titanate)
Measurement execution	Compressed
Tightening torque	8 Nm
Connectors	M12

Accessories

Required accessories (order separately)

0ACC1000.01-1	Sensor cable — Cable for accelerometer, length 100 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0500.01-1	Sensor cable — Cable for accelerometer, length 50 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0200.01-1	Sensor cable — Cable for accelerometer, length 20 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0150.01-1	Sensor cable — Cable for accelerometer, length 15 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0100.01-1	Sensor cable — Cable for accelerometer, length 10 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0050.01-1	Sensor cable — Cable for accelerometer, length 5 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed
0ACC0020.01-1	Sensor cable — Cable for accelerometer, length 2 m, 2x 0.34 mm², female M12 connector on the sensor side, can be used in cable drag chains, UL listed

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Data Sheet 0ACS100A.x0-xPDF · 450 KB · 1.71 (07/06/2026) - EN

CAD & dimension drawings

3D File STEP 0ACS100A.90-2ZIP · 12 KB · 1.00 (07/03/2025)

Certificates (1)

0ACS100A.90-2 Declaration of conformityPDF · 262 KB · 1.00 (07/09/2025)
