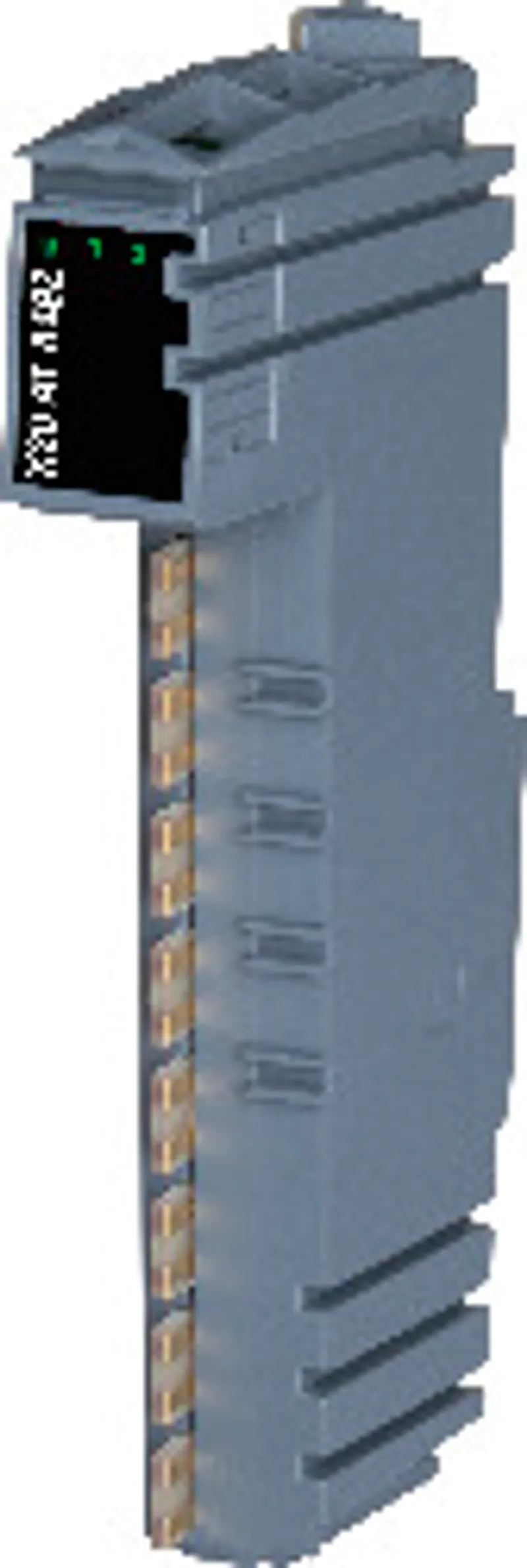

B&R X20ATA492

I/O module, 2 inputs for thermocouples

MPN: X20ATA492
Category: Temperature measurement

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20ATA492?

Single-channel electrical isolation

Integrated terminal temperature compensation

2x PT1000 sensor integrated in the terminal

2x external PT1000 sensor can be connected, 2-wire or 4-wire connections

NetTime timestamp: Moment of measurement

The module is equipped with 2 inputs for J, K, N, S, B, R, E, C and T thermocouple sensors. The 2 measurement channels are electrically isolated from each other.

This module can also be equipped with the X20TB1E thermocouple terminal block with integrated PT1000 temperature sensors. This makes it possible to achieve optimal terminal temperature compensation.

Specifications

Short description

I/O module

2 inputs for thermocouples

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Power consumption – Bus	0.35 W
Power consumption – Internal I/O	0.5 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
Certifications – KC	Yes
B&R ID code	0xBB98
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Thermocouple temperature inputs

Conversion time – Internal terminal temperature comp.	2 * 4 * x ms (note: With a 50 Hz filter, x = 20 ms (1 / 50 Hz = 20 ms))
Conversion time – External terminal temperature comp.	x ms (note: With a 50 Hz filter, x = 20 ms (1 / 50 Hz = 20 ms))
Conversion time – Remote temperature comp.	2 * 4 * x ms (note: With a 50 Hz filter, x = 20 ms (1 / 50 Hz = 20 ms))
Measurement range – Type J: Fe-CuNi	-210 to 1200°C
Measurement range – Type K: NiCr-Ni	-270 to 1372°C
Measurement range – Type N: NiCrSi-NiSi	-270 to 1298°C
Measurement range – Type S: PtRh10-Pt	-50 to 1768°C
Measurement range – Type B: PtRh30-PtRh6	0 to 1820°C
Measurement range – Type R: PtRh13-Pt	-50 to 1760°C
Measurement range – Type E: NiCr-CuNi	-270 to 997°C
Measurement range – Type C: WRe5-WRe26	0 to 2310°C
Measurement range – Type T: Cu-CuNi	-270 to 400°C
Measurement range – Terminal temperature	-40 to 130°C
Measurement range – Voltage	±65.534 mV
Resolution – Sensor temperature	1 LSB = 0.1°C
Resolution – Terminal temperature	1 LSB = 0.1°C
Resolution – Voltage	Depending on gain, 1 LSB = 1 µV or 2 µV
Normalization – Type J: Fe-CuNi	-210.0 to 1200.0°C
Normalization – Type K: NiCr-Ni	-270.0 to 1372.0°C
Normalization – Type N: NiCrSi-NiSi	-270.0 to 1298.0°C
Normalization – Type S: PtRh10-Pt	-50.0 to 1768.0°C
Normalization – Type B: PtRh30-PtRh6	0 to 1820.0°C
Normalization – Type R: PtRh13-Pt	-50.0 to 1760.0°C
Normalization – Type E: NiCr-CuNi	-270.0 to 997.0°C
Normalization – Type C: WRe5-WRe26	0 to 2310.0°C
Normalization – Type T: Cu-CuNi	-270.0 to 400.0°C
Normalization – Terminal temperature (Pt1000)	-40.0 to 130.0°C
Normalization – Voltage	Depending on gain ±32.767 mV or ±65.534 mV
Monitoring – Range undershoot	0x8001
Monitoring – Range overshoot	0x7FFF
Monitoring – Open circuit	0x7FFF
Monitoring – Open inputs	0x7FFF
Monitoring – General fault	0x8000
Max. error at 25°C – Type J: Fe-CuNi	±0.03% (note: Based on the entire measurement range.)
Max. error at 25°C – Type K: NiCr-Ni	±0.04% (note: Based on the entire measurement range.)
Max. error at 25°C – Type N: NiCrSi-NiSi	±0.04% (note: Based on the entire measurement range.)
Max. error at 25°C – Type S: PtRh10-Pt	±0.1% (note: Based on the entire measurement range.)
Max. error at 25°C – Type B: PtRh30-PtRh6	±0.12% (note: Based on the entire measurement range.)
Max. error at 25°C – Type R: PtRh13-Pt	±0.08% (note: Based on the entire measurement range.)
Max. error at 25°C – Type E: NiCr-CuNi	±0.03% (note: Based on the entire measurement range.)
Max. error at 25°C – Type C: WRe5-WRe26	±0.05% (note: Based on the entire measurement range.)
Max. error at 25°C – Type T: Cu-CuNi	±0.08% (note: Based on the entire measurement range.)
Max. error at 25°C – Voltage	±0.017% (note: Based on the entire measurement range.)
Max. error at 25°C – Gain	±0.07% (note: Based on the current measured value.)
Max. gain drift – Channel	±0.01%/°C (note: Based on the current measured value.)
Max. gain drift – Terminal temperature (Pt1000)	±0.003 %/°C (note: Based on the current measured value.)
Max. offset drift – Type J: Fe-CuNi	±0.0019 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Type K: NiCr-Ni	±0.0025 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Type N: NiCrSi-NiSi	±0.003 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Type S: PtRh10-Pt	±0.0081 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Type B: PtRh30-PtRh6	±0.0111 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Type R: PtRh13-Pt	±0.0072 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Type E: NiCr-CuNi	±0.0017 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Type C: WRe5-WRe26	±0.0039 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Type T: Cu-CuNi	±0.0072 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Terminal temperature (Pt1000)	±0.005 %/°C (note: Based on the entire measurement range.)
Max. offset drift – Voltage	±0.001%/°C (note: Based on the entire measurement range.)
Nonlinearity – Channel	±0.004% (note: Based on the entire measurement range.)
Nonlinearity – Terminal temperature	±0.004% (note: Based on the current measured value.)
Terminal temperature compensation – With natural convection	±1.5°C after 20 min
Terminal temperature compensation – With artificial convection	±3°C after 20 min
Terminal temperature compensation – Operating modes	Internal/remote or external
Terminal temperature compensation – Basic accuracy at 25°C not taking Pt1000 sensor into account	±0.06%
Common-mode rejection – DC	>110 dB
Common-mode rejection – 50 Hz	>110 dB
Common-mode rejection – 60 Hz	>110 dB
Insulation voltage – Between channel and bus	500 V eff
Insulation voltage – Between channel and channel	500 V eff
Input	Thermocouple
Digital converter resolution	16-bit
Filter time	Configurable between 1 ms and 200 ms
Output format	INT
Sensor standard	EN 60584
Conversion procedure	Sigma-delta
Linearization method	Internal
Permissible input signal	Max. ±5 V
Input filter	First-order low-pass filter / cutoff frequency 500 Hz
Common-mode range	±50 V
Crosstalk between channels	<-70 dB

Electrical properties

Electrical isolation

Channel isolated from channel and bus

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB1E for internal/remote terminal temperature compensation separately. ; Order 1x terminal block X20TB1F for external terminal temperature compensation separately. ; Order 1x bus module X20BM11 separately.
