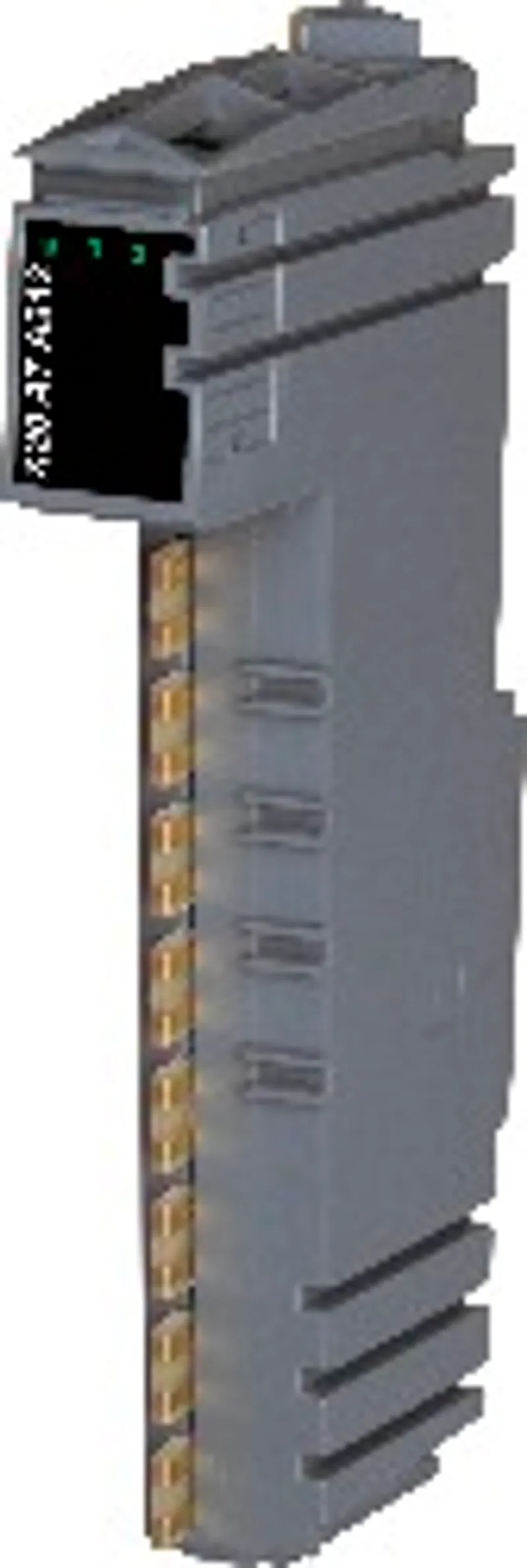

B&R X20ATA312

I/O module, 2 inputs for Pt100 resistance temperature…

MPN: X20ATA312
Category: Temperature measurement

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20ATA312?

2 inputs for resistance temperature measurement

PT100 sensor

Direct resistance measurement as well

4-wire measurement

Filter time can be configured

NetTime timestamp: Moment of measurement

The module is equipped with 2 inputs for PT100 4-line resistance temperature measurement.

Specifications

Short description

I/O module

2 inputs for Pt100 resistance temperature measurement

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Inputs	Yes, using LED status indicator and software
Power consumption – Bus	0.01 W
Power consumption – Internal I/O	0.4 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – HazLoc	cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – CCS	Yes
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck
B&R ID code	0xE0E4
Status indicators	I/O function per channel, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	-

Resistance measurement temperature inputs

Conversion time – 1 channel	20 ms with 50 Hz filter
Conversion time – 2 channels	40 ms per channel with 50 Hz filter
Max. error at 25°C – Gain	±0.0059% (note: To guarantee accuracy, modules with a power dissipation < 1.2 W must be connected to the left and right of this module.)
Max. error at 25°C – Offset	±0.0015% (note: To guarantee accuracy, modules with a power dissipation < 1.2 W must be connected to the left and right of this module.)
Temperature measurement monitoring – Range undershoot	0x80000001
Temperature measurement monitoring – Range overshoot	0x7FFFFFFF
Temperature measurement monitoring – Open circuit	0x7FFFFFFF
Temperature measurement monitoring – General fault	0x80000000
Temperature measurement monitoring – Open inputs	0x7FFFFFFF
Resistance measurement monitoring – Range undershoot	0x80000001
Resistance measurement monitoring – Range overshoot	0xFFFFFFFF
Resistance measurement monitoring – Open circuit	0xFFFFFFFF
Resistance measurement monitoring – General fault	0x80000000
Input	Resistance measurement with constant current supply for 4-wire connections
Digital converter resolution	24-bit
Filter time	Configurable between 1 and 200 ms
Conversion procedure	Sigma-delta
Output format	DINT or UDINT for resistance measurement
Temperature measurement range	-200 to 850°C
Resistance measurement range	0.5 to 390 Ω
Temperature sensor resolution	1 LSB = 0.01°C
Resistance measurement resolution	0.001 Ω
Input filter	First-order low-pass filter / cutoff frequency 1050 Hz
Sensor standard	EN 60751
Insulation voltage between channel and bus	500 V eff
Linearization method	Internal
Measuring current	1 mA
Temperature sensor normalization	-200.0 to 850.0°C
Reference	1568 Ω ±0.1%
Permissible input signal	Short-term max. 28.8 V
Max. gain drift	±0.00065%/°C (note: Based on the current measured resistance value.)
Max. offset drift	±0.000025%/°C (note: Based on the entire resistance measurement range.)
Nonlinearity	<0.001% (note: Based on the entire resistance measurement range.)
Standardized range of values for resistance measurement	19 to 390 Ω

Electrical properties

Electrical isolation

Channel isolated from bus; Channel not isolated from channel

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	-
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB1F separately. ; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB1F	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using a screwdriver; Ability to label each terminal; Plain text labeling also…
