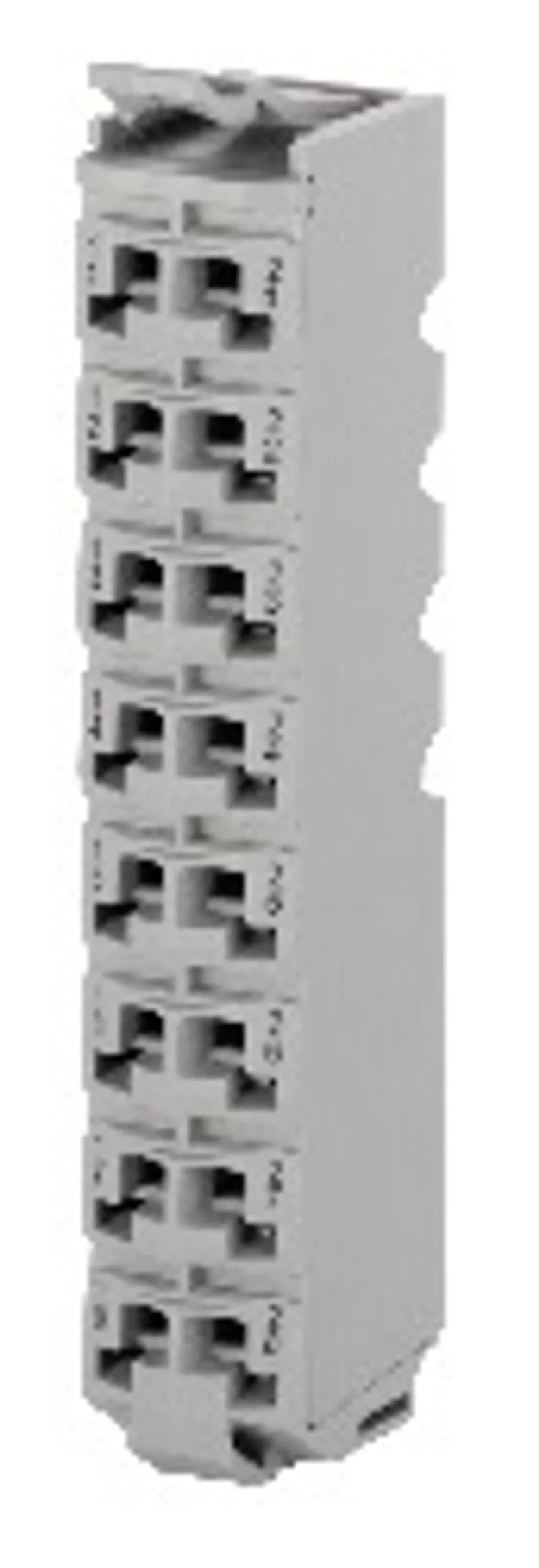

B&R X20TB1F

Tool-free wiring with push-in technology

MPN: X20TB1F
Category: Terminal blocks

€15.90excl. VAT & shipping

In stock — 4 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20TB1F?

Tool-free wiring with push-in technology

Simple wire release using a screwdriver

Ability to label each terminal

Plain text labeling also possible

Test access for standard probes

Can be customer-coded

X20 24 VDC modules with 16 connections are wired using the X20TB1F terminal block.

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
Certifications – DNV	Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck)
Certifications – LR	ENV1
Certifications – KR	Yes
Certifications – ABS	Yes
Certifications – BV	EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck

Terminal block

Connection cross section – Single-wire	0.08 to 1.50 mm² / 28 to 16 AWG
Connection cross section – Fine-stranded wires	0.25 to 1.50 mm² / 24 to 16 AWG
Connection cross section – With wire end sleeve	0.25 to 0.75 mm² / 24 to 20 AWG
Distance between contacts – Left - Right	4.2 mm
Distance between contacts – Above - Below	8.25 mm
Number of pins	16
Type of terminal block	Push-in terminal
Push-in force per contact	Typ. 10 N
Cable type	Only copper wires (no aluminum wires!)
Wire stripping length	7 to 9 mm

Electrical properties

Nominal voltage	24 VDC
Max. voltage	50 VDC
Nominal current	2 A / contact (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤5 mΩ

Ambient conditions

Temperature – Operation	Corresponds to the X20 module used
Relative humidity – Operation	Corresponds to the X20 module used

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D File DXF/STEP X20TB1FZIP · 2 MB · 2.0 (01/30/2019)

Certificates (10)
