B&R X20AIB744

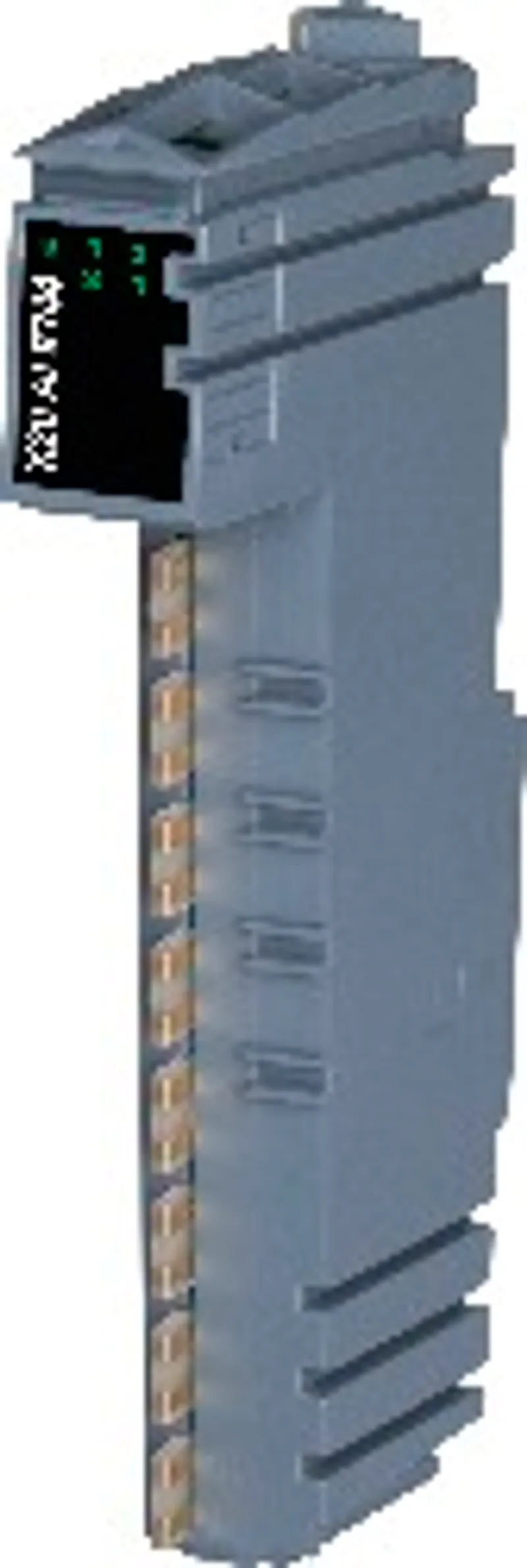

I/O module, 4 full-bridge strain gauge inputs

MPN: X20AIB744
Category: Analog inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R X20AIB744?

4 full-bridge strain gauge inputs

5 kHz data output rate for all 4 channels

Independently configurable strain gauge factor and filter level for each of the 4 channels

This module works with 4-wire strain gauge load cells. The concept applied by the module requires compensation in the measurement system. This compensation eliminates the absolute uncertainty in the measurement circuit, such as component tolerances, effective bridge voltage or zero offset. The measurement precision refers to the absolute (compensated) value, which will only change as a result of changes in the operating temperature.

Specifications

Short description

I/O module

4 full-bridge strain gauge inputs

General information

Diagnostics – Module run/error	Yes, using LED status indicator and software
Diagnostics – Open circuit	Yes, using LED status indicator and software
Diagnostics – Input	Yes, using LED status indicator and software
Power consumption – Bus	0.01 W
Power consumption – Internal I/O	1 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – ATEX	Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xE286
Status indicators	Channel status, operating state, module status
Additional power dissipation caused by actuators (resistive) [W]	+1.43 (note: Depends on the full-bridge strain gauge being used.)

Full-bridge strain gauge

Input filter – Cutoff frequency	2.5 kHz
Input filter – Order	3
Input filter – Slope	60 dB
Output of digital value – Broken bridge supply line	Value approaching 0
Output of digital value – Broken sensor line	Value approaching ±end value (status bit "Open circuit" set in register "Module status")
Output of digital value – Valid range of values	0xFF800001 to 0x007FFFFF (-8,388,607 to 8,388,607)
Strain gauge supply – Voltage	5.5 VDC / Max. 65 mA per channel
Strain gauge supply – Short-circuit and overload-proof	Yes
Quantization – 2 mV/V	1.31 nV (note: Quantization depends on the strain gauge factor.)
Quantization – 4 mV/V	2.62 nV (note: Quantization depends on the strain gauge factor.)
Quantization – 8 mV/V	5.25 nV (note: Quantization depends on the strain gauge factor.)
Quantization – 16 mV/V	10.49 nV (note: Quantization depends on the strain gauge factor.)
Quantization – 32 mV/V	20.98 nV (note: Quantization depends on the strain gauge factor.)
Quantization – 64 mV/V	41.96 nV (note: Quantization depends on the strain gauge factor.)
Quantization – 128 mV/V	83.92 nV (note: Quantization depends on the strain gauge factor.)
Quantization – 256 mV/V	167.85 nV (note: Quantization depends on the strain gauge factor.)
Strain gauge factor	2 to 256 mV/V, configurable using software
Connection	4-wire connections
Input type	Differential, used to evaluate a full-bridge strain gauge
Digital converter resolution	24-bit
Conversion time	200 µs
Data output rate	5000 samples per second and per channel (f DATA )
ADC filter characteristics	Sigma-delta, see section "Filter"
Operating range / Measurement sensor	85 to 5000 Ω
Influence of cable length	Twisted and shielded conductors, cable length as short as possible, cable routing separate from load circuits, without intermediate terminal to sensor
Input protection	RC protection
Common-mode range	0.6 to 3.8 VDC ; Permissible input voltage range (with regard to the electric potential strain gauge GND) on inputs "Input +" and "Input -"
Insulation voltage between input and bus	500 V eff
Conversion procedure	Sigma-delta
Max. gain drift	35 ppm/°C (note: Based on the current measured value.)
Max. offset drift	15 ppm/°C (note: Based on the entire measurement range.)
Nonlinearity	<10 ppm (note: Based on the entire measurement range.)

Electrical properties

Electrical isolation

Bus isolated from analog input and strain gauge supply voltage; Channel not isolated from channel and I/O power supply

Operating conditions

Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Degree of protection per EN 60529	IP20

Ambient conditions

Temperature – Horizontal mounting orientation	-25 to 60°C
Temperature – Vertical mounting orientation	-25 to 50°C
Temperature – Derating	See section "Hardware configuration"
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Note	Order 1x terminal block X20TB1F separately.; Order 1x bus module X20BM11 separately.
Pitch	12.5 +0.2 mm

Accessories

Required accessories (order separately)

X20BM15	Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe…
X20BM11	Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module…
X20TB1F	Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using a screwdriver; Ability to label each terminal; Plain text labeling also…
