Home / I/O systems / X20 System / Analog inputs

Analog inputs Parts

B&R

X20AI1744-10

I/O module, 1 full-bridge strain gauge input

B&R

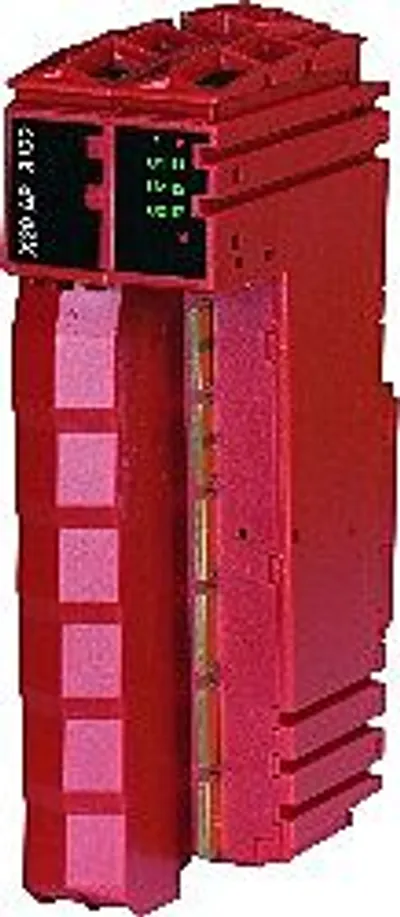

X20AP3122

I/O module, 3-phase power and energy metering module for…

B&R

X20AP3132

I/O module, 3-phase power and energy metering module for…

B&R

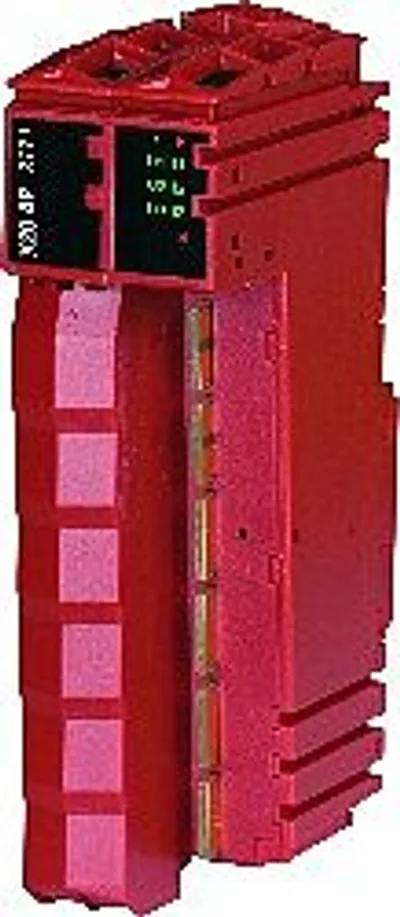

X20AP3171

I/O module, 3-phase power and energy metering module for…

B&R

X20AIA744

I/O module, 2 full-bridge strain gauge inputs

B&R

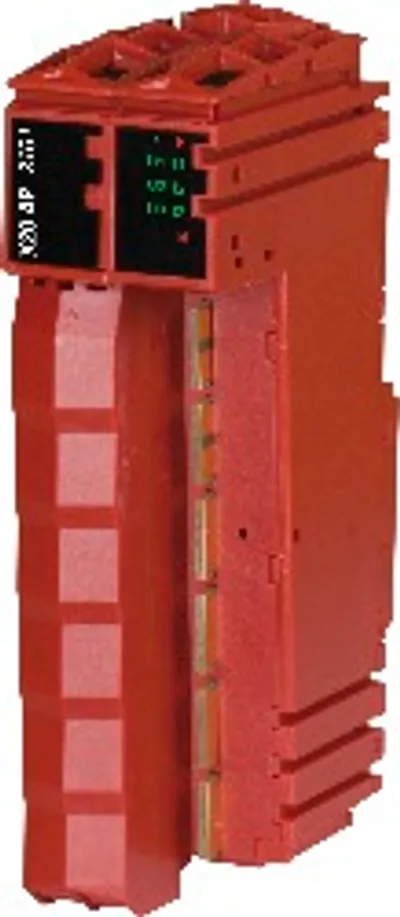

X20AP3161

I/O module, 3-phase power and energy metering module for…

B&R

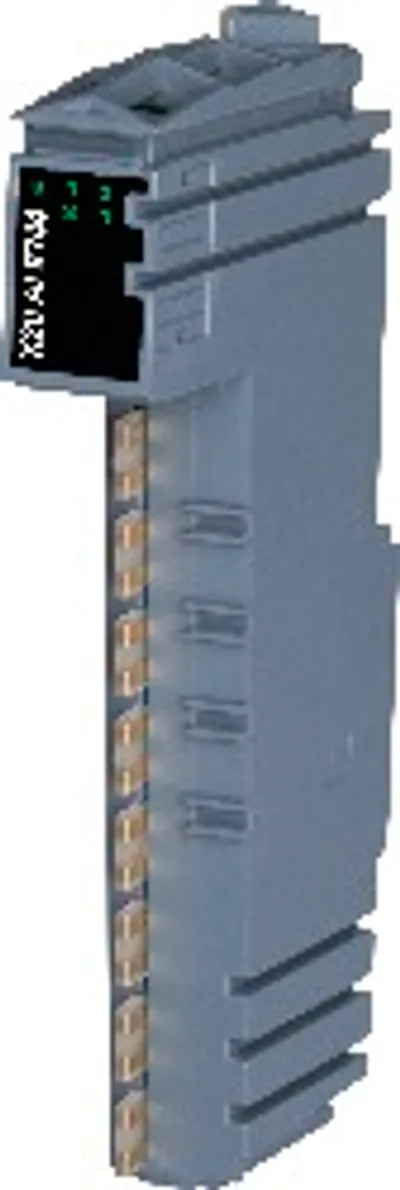

X20AIB744

I/O module, 4 full-bridge strain gauge inputs

B&R

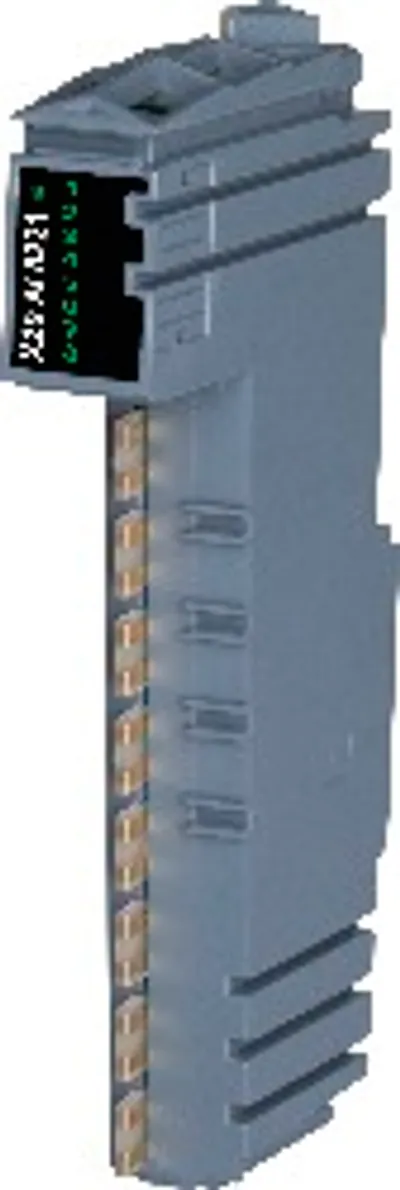

X20AI8221

I/O module, 8 analog inputs ±10 V

B&R

X20AI8321

I/O module, 8 analog inputs 0 to 20 mA / 4 to 20 mA

B&R

X20AI1744-3

I/O module, 1 full-bridge strain gauge input

B&R

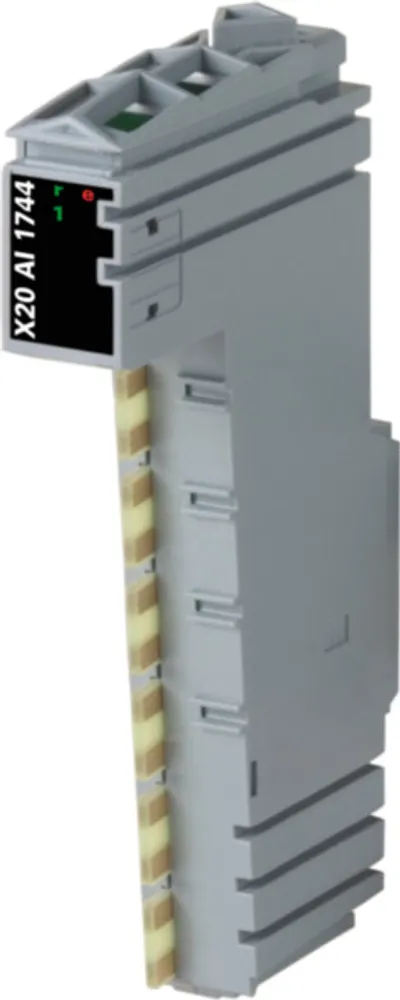

X20AI1744

I/O module, 1 full-bridge strain gauge input

B&R

X20AI2222

I/O module, 2 analog inputs ±10 V

B&R

X20AI2237

I/O module, 2 analog inputs ±10 V

B&R

X20AI2322

I/O module, 2 analog inputs 0 to 20 mA / 4 to 20 mA

B&R

X20AI2437

I/O module, 2 analog inputs 4 to 20 mA or 0 to 25 mA

B&R

X20AI2438

I/O module, 2 analog inputs 4 to 20 mA or 0 to 25 mA

B&R

X20AI2622

I/O module, 2 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA

B&R

X20AI2632-1

I/O module, 2 analog inputs ±11 V or 0 to 22 mA

B&R

X20AI2632

I/O module, 2 analog inputs ±10 V or 0 to 20 mA

B&R

X20AI2636

I/O module, 2 analog inputs ±10 V or 0 to 20 mA

B&R

X20AI4222

I/O module, 4 analog inputs ±10 V

B&R

X20AI4322

I/O module, 4 analog inputs 0 to 20 mA / 4 to 20 mA

B&R

X20AI4622

I/O module, 4 analog inputs ±10 V or 0 to 20 mA / 4 to 20 mA

B&R

X20AI4632-1

I/O module, 4 analog inputs ±11 V or 0 to 22 mA

Compare Analog inputs

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Conversion procedure	Temperature – Derating	Pitch	Common-mode rejection – DC
X20AI1744-10	Sigma-delta	See section "Hardware configuration"	12.5 +0.2 mm	—
X20AP3122	—	-	25 +0.2 mm	—
X20AP3132	—	-	25 +0.2 mm	—
X20AP3171	—	-	25 +0.2 mm	—
X20AIA744	Sigma-delta	See section "Hardware configuration"	12.5 +0.2 mm	—
X20AP3161	—	-	25 +0.2 mm	—
X20AIB744	Sigma-delta	See section "Hardware configuration"	12.5 +0.2 mm	—
X20AI8221	SAR	-	12.5 +0.2 mm	70 dB
X20AI8321	SAR	-	12.5 +0.2 mm	70 dB
X20AI1744-3	Sigma-delta	See section "Hardware configuration"	12.5 +0.2 mm	—
X20AI1744	Sigma-delta	See section "Hardware configuration"	12.5 +0.2 mm	—
X20AI2222	SAR	-	12.5 +0.2 mm	70 dB
X20AI2237	SAR	-	12.5 +0.2 mm	84 dB
X20AI2322	SAR	-	12.5 +0.2 mm	70 dB
X20AI2437	Sigma-delta	-	12.5 +0.2 mm	80 dB
X20AI2438	Sigma-delta	-	12.5 +0.2 mm	80 dB
X20AI2622	SAR	-	12.5 +0.2 mm	70 dB
X20AI2632-1	SAR	-	12.5 +0.2 mm	70 dB
X20AI2632	SAR	-	12.5 +0.2 mm	70 dB
X20AI2636	SAR	-	12.5 +0.2 mm	70 dB
X20AI4222	SAR	-	12.5 +0.2 mm	70 dB
X20AI4322	SAR	-	12.5 +0.2 mm	70 dB
X20AI4622	SAR	-	12.5 +0.2 mm	70 dB
X20AI4632-1	SAR	See section "Derating".	12.5 +0.2 mm	70 dB

Common to all listed parts

Diagnostics – Module run/error	Yes, using LED status indicator and software
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Mounting orientation – Horizontal	Yes
Mounting orientation – Vertical	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Degree of protection per EN 60529	IP20
