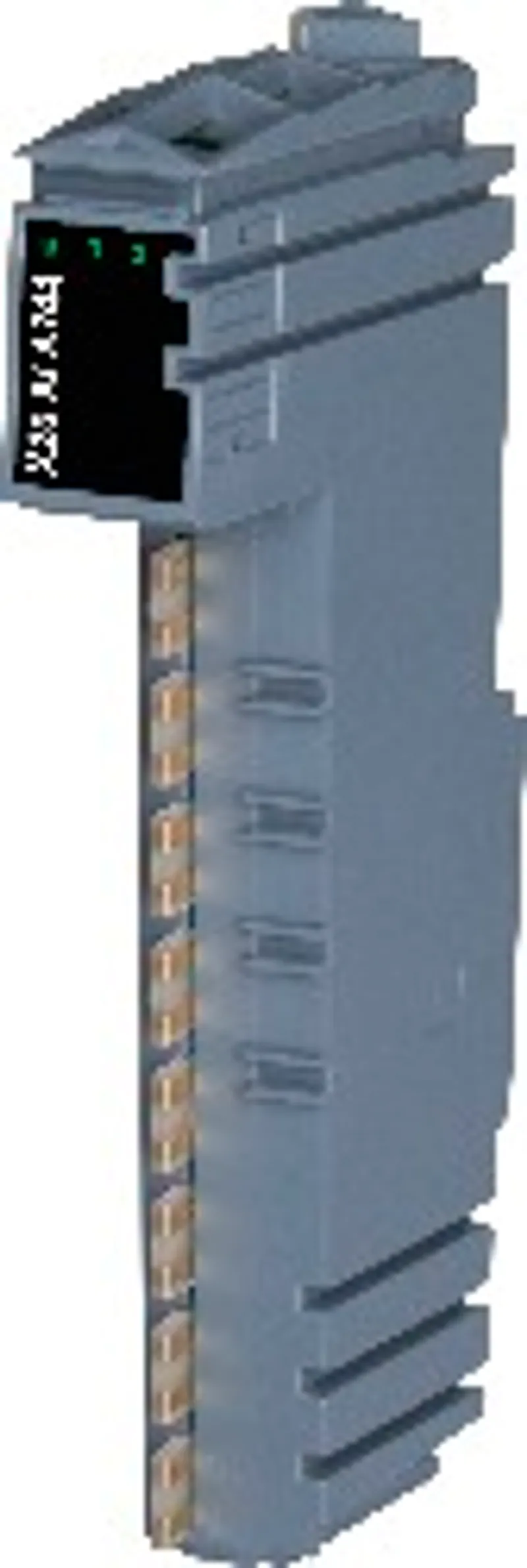

B&R X20AIA744
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Analog inputs |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can X20AIA744 be shipped?
X20AIA744 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up X20AIA744 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for X20AIA744 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AIA744, subject to availability and destination.
2 full-bridge strain gauge inputs5 kHz data output rate for both channelsIndependently configurable strain gauge factor and filter level for each of the 2 channels This module works with 4-wire strain gauge load cells. The concept applied by the module requires compensation in the measurement system. This compensation eliminates the absolute uncertainty in the measurement circuit, such as component tolerances, effective bridge voltage or zero offset. The measurement precision refers to the absolute (compensated) value, which will only change as a result of changes in the operating temperature.
Specifications
Specifications
| I/O module | 2 full-bridge strain gauge inputs |
| B&R ID code | 0xE50C |
| Status indicators | Channel status, operating state, module status |
| Module run/error | Yes, using LED status indicator and software |
| Open circuit | Yes, using LED status indicator and software |
| Input | Yes, using LED status indicator and software |
| Bus | 0.01 W |
| Internal I/O | 0.7 W |
| Additional power dissipation caused by actuators (resistive) [W] | +0.72 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc IP20, Ta (see X20 user's manual) FTZÚ 09 ATEX 0083X |
| UL | cULus E115267 Industrial control equipment |
| Strain gauge factor | 2 to 256 mV/V, configurable using software |
| Connection | 4-wire connections |
| Input type | Differential, used to evaluate a full-bridge strain gauge |
| Digital converter resolution | 24-bit |
| Conversion time | 200 µs |
| Data output rate | 5000 samples per second and per channel (fDATA) |
| Cutoff frequency | 2.5 kHz |
| Order | 3 |
| Slope | 60 dB |
| ADC filter characteristics | Sigma-delta, see section "Filter" |
| Operating range / Measurement sensor | 85 to 5000 Ω |
| Influence of cable length | Twisted and shielded conductors, cable length as short as possible, cable routing separate from load circuits, without intermediate terminal to sensor |
| Input protection | RC protection |
| Common-mode range | 0.6 to 3.8 VDC Permissible input voltage range (with regard to the electric potential strain gauge GND) on inputs "Input +" and "Input -" |
| Insulation voltage between input and bus | 500 Veff |
| Conversion procedure | Sigma-delta |
| Broken bridge supply line | Value approaching 0 |
| Broken sensor line | Value approaching ±end value (status bit "Open circuit" set in register "Module status") |
| Valid range of values | 0xFF800001 to 0x007FFFFF (-8,388,607 to 8,388,607) |
| Voltage | 5.5 VDC / Max. 65 mA per channel |
| Short-circuit and overload-proof | Yes |
| 2 mV/V | 1.31 nV |
| 4 mV/V | 2.62 nV |
| 8 mV/V | 5.25 nV |
| 16 mV/V | 10.49 nV |
| 32 mV/V | 20.98 nV |
| 64 mV/V | 41.96 nV |
| 128 mV/V | 83.92 nV |
| 256 mV/V | 167.85 nV |
| Max. gain drift | 35 ppm/°C |
| Max. offset drift | 15 ppm/°C |
| Nonlinearity | <10 ppm |
| Electrical isolation | Bus isolated from analog input and strain gauge supply voltage Channel not isolated from channel and I/O power supply |
| Horizontal | Yes |
| Vertical | Yes |
| 0 to 2000 m | No limitation |
| >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
| Horizontal mounting orientation | -25 to 60°C |
| Vertical mounting orientation | -25 to 50°C |
| Derating | See section "Hardware configuration" |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Operation | 5 to 95%, non-condensing |
| Note | Order 1x terminal block X20TB1F separately. Order 1x bus module X20BM11 separately. |
| Pitch | 12.5+0.2 mm |
