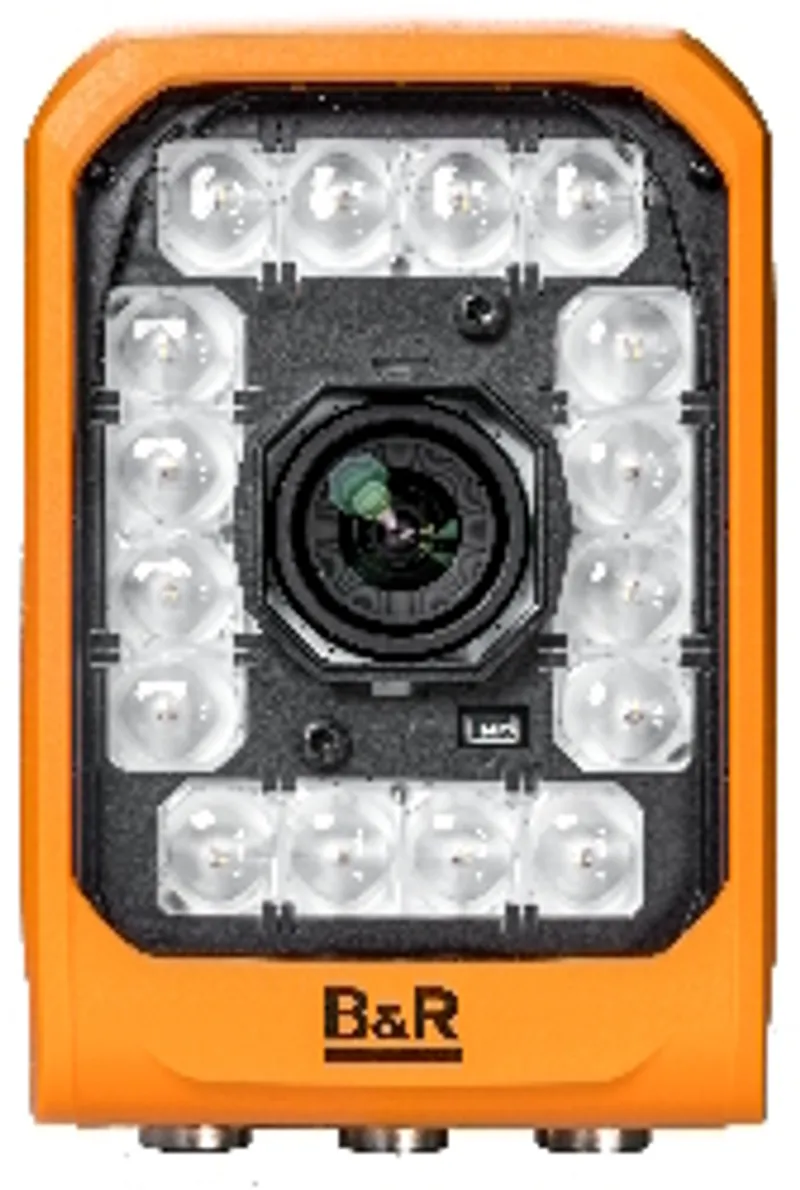

B&R VSS1X2XXX.XXXP-000
Camera, vision Smart Sensor
- MPN
- VSS1X2XXX.XXXP-000
- Category
- Smart Sensor
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the B&R VSS1X2XXX.XXXP-000?
Smart Sensor for machine vision applications
Specifications
Short description
| Camera | Vision Smart Sensor |
General information
| System requirements – Automation Studio | 4.7.2 or later |
| System requirements – Automation Runtime | C4.7.2 or later |
| System requirements – mapp Technology Package | mapp Vision 5.10 and later: Dual core, S-mount, 1.3 MP sensor ; mapp Vision 5.13 and later: Quad core, C-mount, 3.5 MP and 5.3 MP sensor |
| System requirements – Hardware module upgrade | Version 1.0.0.0 and later |
| Cooling | Passive |
| Status indicators | Module status, Error, Link1, Link2 |
| Diagnostics | Yes, using LED "Status" and software |
| Electrical isolation | No |
| Undervoltage detection | Yes |
| Short-circuit proof | Yes |
| Reverse polarity protection | Yes |
| Certification | CE, UL |
Module power supply
| Connection | M12, 8-pin, Y-coded |
| Nominal voltage | 24 VDC -15% / +20%, SELV/PELV |
| Max. input current | 1.25 A (at 0.5 A on the digital output) |
| Max. current consumption | <750 mA (image acquisition, image processing and network communication) 600 mA typical (note: Without load on the digital output. The current consumption increases by a maximum of 0.5 A when using the digital output (depending on the application).) |
| Max. output current | 4 A / line (for forwarding) |
Controller
| Processor – Data code | 32 kB (per core) |
| Processor – Program code | 32 kB (per core) |
| Processor – Clock frequency | 800 MHz |
| Standard memory – RAM | DDR3, 1 GB, 64-bit, 800 MT/s, 400 MHz |
| Application memory – Type | eMMC NAND flash memory, 2 GB, 8-bit, ≤40 Mbit/s |
| Image preprocessing – Image memory | For backup of 10 images |
| Flash | Boot NOR flash memory, 4 MB, SPI |
Interfaces
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | No |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Quantity | 2 |
| Connection designation | IF1, IF2 |
| Fieldbus | POWERLINK |
| Type | POWERLINK (V2) managing or controlled node |
| Variant | M12, 8-pin, Y-coded (2-port hub, daisy-chain wiring possible) |
| Line length | Max. 30 m between 2 stations (segment length) |
| Transfer rate | 10/100 Mbit/s |
| Min. cycle time | 400 μs (note: The maximum cycle time should not exceed 10 ms.) |
Digital inputs
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Quantity | 1 |
| Connection designation | X1 |
| Variant | M12, 5-pin, A-coded |
| Input characteristics per EN 61131-2 | Type 1 |
| Input voltage | 24 VDC (-15% / +20%) |
| Input current at 24 VDC | Typ. 3.9 mA |
| Input circuit | Sink/Source |
| Input resistance | Typ. 6.1 k |
| Input delay | 150 µs |
| Electrical isolation | Yes |
Digital outputs
| Switching delay – 0 → 1 | <80 µs (note: At loads ≤1 kΩ) |
| Switching delay – 1 → 0 | <80 µs (note: At loads ≤1 kΩ) |
| Protective measures – Short-circuit proof | Yes |
| Protective measures – Overtemperature shutdown | Yes |
| Quantity | 1 (current-sourcing FET) |
| Connection designation | X1 |
| Variant | M12, 5-pin, A-coded |
| Nominal voltage | 24 VDC |
| Switching voltage | 24 VDC -15% / +20% |
| Output circuit | Source |
| Max. output current | 500 mA |
| Electrical isolation | No |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Mounting orientation – Face-up | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Installation elevation above sea level – Maximum | 5000 m |
| Pollution degree per EN 60664-1 | 2 |
| Overvoltage category per EN 60664-1 | II |
| Degree of protection per EN 60529 | IP65/IP67 |
Ambient conditions
| Temperature – Operation | -20 to 50°C (note: All mounting orientations) |
| Temperature – Storage | -40 to 85°C (note: All mounting orientations) |
| Temperature – Transport | -40 to 85°C (note: All mounting orientations) |
| Relative humidity – Operation | 5 to 100%, condensing |
| Relative humidity – Storage | 5 to 100%, condensing |
| Relative humidity – Transport | 5 to 100%, condensing |
Mechanical properties
| Dimensions – Width | 116 mm |
| Dimensions – Height | 78 mm |
| Dimensions – Depth | 68 mm |
| Material | Aluminum die casting |
| Weight | 0.75 kg |
No matching specifications
Accessories
Required accessories (order separately)
| X67AC0M12 | Threaded Caps — X67 M12 threaded caps, 50 pcs. |
Optional accessories (32)
| VAC0YC067 | Cable accessories — IP67 POWERLINK M12 hybrid distributor |
| VAC0YC020 | Cable accessories — IP20 POWERLINK M12 hybrid distributor |
| VCA0Y11.0150 | Cables — - POWERLINK hybrid cable - 15.0 m - Connector: Angled |
| VCA0Y11.0100 | Cables — - POWERLINK hybrid cable - 10.0 m - Connector: Angled |
| VCA0Y11.0050 | Cables — - POWERLINK hybrid cable - 5.0 m - Connector: Angled |
| VCA0Y11.0020 | Cables — - POWERLINK hybrid cable - 2.0 m - Connector: Angled |
| VCA0Y11.0010 | Cables — - POWERLINK hybrid cable - 1.0 m - Connector: Angled |
| VCA0Y01.0300 | Cables — - POWERLINK hybrid cable - 30.0 m - Connector: Straight |
| VCA0Y01.0200 | Cables — - POWERLINK hybrid cable - 20.0 m - Connector: Straight |
| VCA0Y01.0150 | Cables — - POWERLINK hybrid cable - 15.0 m - Connector: Straight |
| VCA0Y01.0100 | Cables — - POWERLINK hybrid cable - 10.0 m - Connector: Straight |
| VCA0Y01.0050 | Cables — - POWERLINK hybrid cable - 5.0 m - Connector: Straight |
| VCA0Y01.0020 | Cables — - POWERLINK hybrid cable - 2.0 m - Connector: Straight |
| VCA0Y01.0010 | Cables — - POWERLINK hybrid cable - 1.0 m - Connector: Straight |
| VCA0Y01.0005 | Cables — - POWERLINK hybrid cable - 0.5 m - Connector: Straight |
| VMA0R0001 | Installation accessories — - Vision mounting bracket 80 mm x 100 mm |
| VMA025D65 | Installation accessories — Installation kit 2.5D, distance camera-laser: 650 mm, included in delivery: mounting rail, machine vision mounting bracket 80 x 100 mm, las… |
| VMA025D40 | Installation accessories — Installation kit 2.5D, distance camera-laser: 400 mm, included in delivery: mounting rail, machine vision mounting bracket 80 x 100 mm, las… |
| VTO0C03 | Plug-on option — Diffuser camera plug-in option |
| VTO0C02 | Plug-on option — Polarizing filter camera plug-in option |
| VRK0F002 | Repair kit — Camera front repair kit - Glass with AR coating and polarizing filter |
| VRK0F001 | Repair kit — Camera front repair kit - Glass with AR coating |
| X67CA0A51.0200 | Sensor Cables — M12 sensor cable, angled, 20 m |
| X67CA0A51.0150 | Sensor Cables — M12 sensor cable, angled, 15 m |
| X67CA0A51.0100 | Sensor Cables — M12 sensor cable, angled, 10 m |
| X67CA0A51.0050 | Sensor Cables — M12 sensor cable, angled, 5 m |
| X67CA0A51.0020 | Sensor Cables — M12 sensor cable, angled, 2 m |
| X67CA0A41.0200 | Sensor Cables — M12 sensor cable, 20 m |
| X67CA0A41.0150 | Sensor Cables — M12 sensor cable, 15 m |
| X67CA0A41.0100 | Sensor Cables — M12 sensor cable, 10 m |
| X67CA0A41.0050 | Sensor Cables — M12 sensor cable, 5 m |
| X67CA0A41.0020 | Sensor Cables — M12 sensor cable, 2 m |
