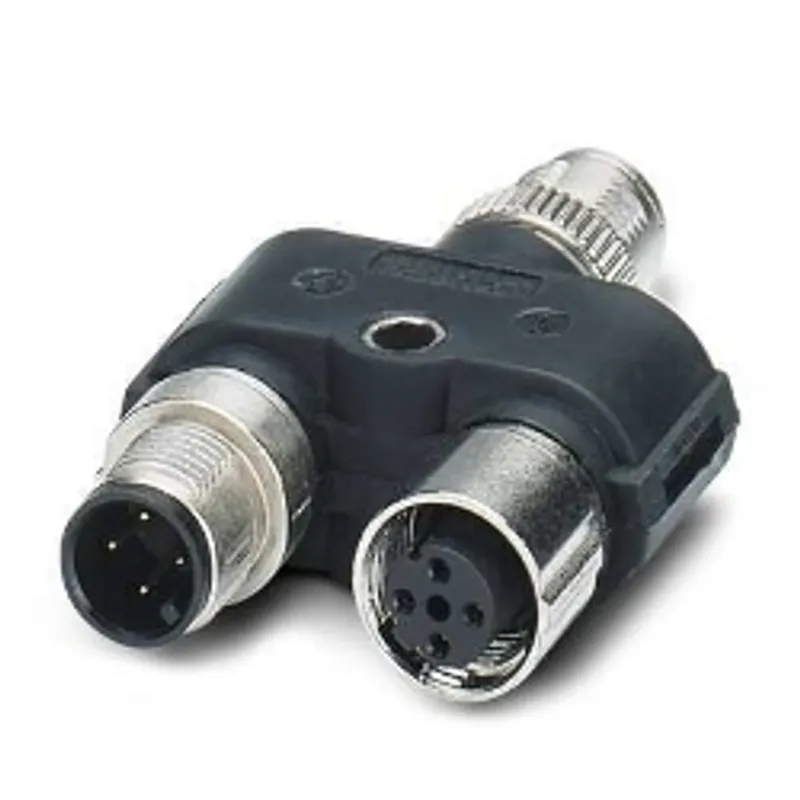

B&R VAC0YC067
Accessories, IP67 POWERLINK M12 hybrid distributor
- MPN
- VAC0YC067
- Category
- Cable accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R VAC0YC067?
IP67 POWERLINK M12 hybrid distributor
Specifications
Short description
| Accessories | IP67 POWERLINK M12 hybrid distributor |
Connector
| Type | 1 x M12, 8-pin, (Y-coded) male ; 1 x M12, 4-pin, (A-coded) male ; 1 x M12, 4-pin, (D-coded), female |
Electrical properties
| Nominal voltage | 24 VDC -15% / +20%, SELV/PELV |
| Output power | Max. 192 W (96 W per line) |
| Transfer properties | Category 5 / Class D up to 100 MHz per ISO/IEC 11801 |
| Transfer rate | 100 MBit/s |
Operating conditions
| Degree of protection per EN 60529 | IP67 |
Ambient conditions
| Temperature – Operation | -20 to 80°C |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 100%, condensing |
| Relative humidity – Storage | 5 to 100%, condensing |
| Relative humidity – Transport | 5 to 100%, condensing |
Mechanical properties
| Dimensions – Width | 17 mm |
| Dimensions – Length | 39 mm |
| Dimensions – Height | 54.5 mm |
| Weight | 43.3 g |
Accessories
Optional accessories (1)
| X67AC0C21-1 | CAN-Bus / DeviceNet — X67 female connector, M12, 5-pin, A-coded, shielded, cage clamp connection |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
VAC0YC067: frequently asked questions
When can VAC0YC067 be shipped?
VAC0YC067 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VAC0YC067 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VAC0YC067 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VAC0YC067, subject to availability and destination.
