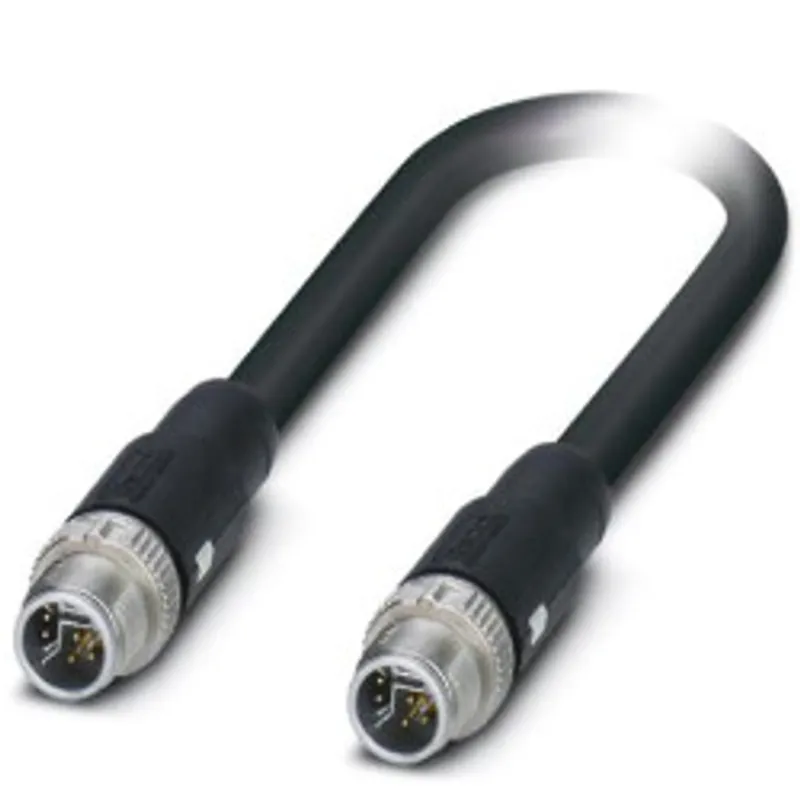

What is the B&R VCA0Y01.0010?
- POWERLINK hybrid cable - 1.0 m - Connector: Straight
Specifications
Short description
| Accessories | POWERLINK hybrid cable, M12, Y-coded, straight |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cULus E529229; Cable assemblies and fittings for; industrial control and signal distribution |
| Durability | Flame-retardant per UL 1581, section 1060 / 1061 and UL 2556, section 9.3; Oil resistance per IEC 60811-2-1 and VDE 0282 part 10 |
Cable construction
| Supply lines – Quantity | 4 |
| Supply lines – Wire insulation | PP |
| Supply lines – Variant | CuZn contact with Ni/Au contact surface |
| Supply lines – Cross section | 0.85 mm² |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | PP |
| Signal line – Variant | CuZn contact with Ni/Au contact surface |
| Signal line – Cross section | 0.15 mm² |
| Outer jacket – Material | PUR (halogen-free, low-adhesive) |
| Outer jacket – Color | Black RAL 9005 |
| Cable stranding | Yes |
| Cable shield | Tinned copper wire braiding |
Connector
| Type | 2x M12, Y-coded, male, straight |
| Mating cycles | At least 100 |
| Contacts | 8 (4 power supply and 4 signal contacts) |
Electrical properties
| Test voltage – Wire - Wire | 2000 V (50 Hz, 1 min.) |
| Test voltage – Wire - Shield | 2000 V (50 Hz, 1 min.) |
| Conductor resistance – Supply lines | At 25°C: <22.5 Ω/km; At 90°C: <28.4 Ω/km |
| Conductor resistance – Signal line | Max. 280 Ω/km |
| Nominal voltage | Max. 50 VDC (peak value) |
| Nominal current | 6 A power supply line; 0.5 A signal line |
| Transfer properties | Ethernet hybrid Cat 5 (IEC 11801), 100 Mbit/s |
| Transfer rate | 100 Mbit/s |
| Insulation resistance | ≥5 GΩ/km |
Operating conditions
| Degree of protection per EN 60529 – Cables | IP65/IP67 |
| Degree of protection per EN 60529 – M12 connector | IP65/IP67 (connected and screwed in) |
Ambient conditions
| Temperature – Fixed installation | -25 to 90°C (male M12 connector); -40 to 80°C (cable) |
| Temperature – Flexible installation | -25 to 90°C (male M12 connector); -30 to 70°C (cable) |
Mechanical properties
| Dimensions – Length | 1 m |
| Dimensions – Diameter | 8.8 ±0.2 mm |
| Bend radius – Fixed installation | Min. 4 outer diameter |
| Bend radius – Flexible installation | Min. 8 outer diameter |
| Drag chain data – Acceleration | Max. 3 m/s² |
| Drag chain data – Flex cycles | Min. 2 million |
| Drag chain data – Velocity | Max. 3 m/s |
| Can be used in cable drag chains | Yes |
| Weight | 167 g |
