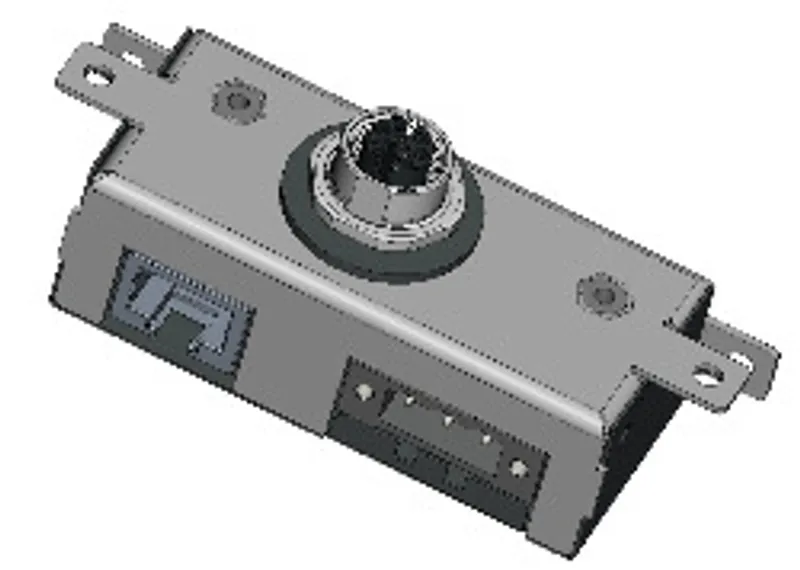

B&R VAC0YC020

Accessories, IP20 POWERLINK M12 hybrid distributor

MPN: VAC0YC020
Category: Cable accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R VAC0YC020?

IP20 POWERLINK M12 hybrid distributor

Specifications

Short description

Accessories

IP20 POWERLINK M12 hybrid distributor

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment

Connector

Type	1x M12, 8-pin, female; 1x female RJ45 connector; 1x 3-pin power supply
Internal connector	In the control cabinet: 1x female RJ45 connector and 1x 3-pin power supply
Additional connectors	Through the control cabinet panel: 1x M12, 8-pin, female

Electrical properties

Nominal voltage	24 VDC -15% / +20%, SELV/PELV
Output power	Max. 192 W (96 W per line, internally protected)
Fuse	Required line fuse: 10 A slow-blow
Transfer properties	Category 5 / Class D up to 100 MHz per ISO/IEC 11801
Transfer rate	100 Mbit/s

Operating conditions

Mounting orientation – Any	Yes
Installation elevation above sea level – 0 to 2000 m	No limitation
Installation elevation above sea level – >2000 m	Reduction of ambient temperature by 0.5°C per 100 m
Installation elevation above sea level – Maximum	5000 m
Pollution degree per EN 60664-1	2
Overvoltage category per EN 60664-1	II
Degree of protection per EN 60529	IP20; IP67 for M12 connector possible with compliant installation in the control cabinet
Operating position	Indoor only

Ambient conditions

Temperature – Operation	-20 to 60°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Dimensions – Width	88 mm
Dimensions – Length	38.6 mm
Dimensions – Height	30 mm
Weight	80 g

Accessories

Optional accessories (15)

0TB103.91	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
0TB103.9	Accessories — One-row 3-pin terminal block 0TB103.9x is used for the power supply.
VCA0Y11.0150	Cables — - POWERLINK hybrid cable - 15.0 m - Connector: Angled
VCA0Y11.0100	Cables — - POWERLINK hybrid cable - 10.0 m - Connector: Angled
VCA0Y11.0050	Cables — - POWERLINK hybrid cable - 5.0 m - Connector: Angled
VCA0Y11.0020	Cables — - POWERLINK hybrid cable - 2.0 m - Connector: Angled
VCA0Y11.0010	Cables — - POWERLINK hybrid cable - 1.0 m - Connector: Angled
VCA0Y01.0300	Cables — - POWERLINK hybrid cable - 30.0 m - Connector: Straight
VCA0Y01.0200	Cables — - POWERLINK hybrid cable - 20.0 m - Connector: Straight
VCA0Y01.0150	Cables — - POWERLINK hybrid cable - 15.0 m - Connector: Straight
VCA0Y01.0100	Cables — - POWERLINK hybrid cable - 10.0 m - Connector: Straight
VCA0Y01.0050	Cables — - POWERLINK hybrid cable - 5.0 m - Connector: Straight
VCA0Y01.0020	Cables — - POWERLINK hybrid cable - 2.0 m - Connector: Straight
VCA0Y01.0010	Cables — - POWERLINK hybrid cable - 1.0 m - Connector: Straight
VCA0Y01.0005	Cables — - POWERLINK hybrid cable - 0.5 m - Connector: Straight

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

VAC0YC020 Data sheetPDF · 1 MB · 1.08 (11/27/2023) - EN

CAD & dimension drawings

3D STEP file VAC0YC020STP · 5 MB · 1.00 (03/09/2022)

Certificates (4)
