B&R X67CA0A51.0150

Name: B&R X67CA0A51.0150
Brand: B&R
SKU: X67CA0A51.0150

MPN: X67CA0A51.0150 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Sensor cable
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can X67CA0A51.0150 be shipped?

X67CA0A51.0150 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up X67CA0A51.0150 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for X67CA0A51.0150 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X67CA0A51.0150, subject to availability and destination.

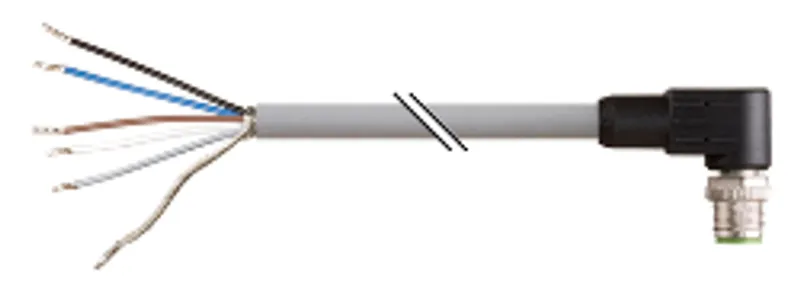

M12 sensor cable, angled, 15 m

Specifications

Accessories	M12 sensor cable, 5-pin, angled, 15 m
Note	PVC- and silicone-freePWIS- and halogen-free
Durability	Good chemical and oil resistanceFlame-retardantGood UV and ozone resistance
AWG	5x 22 AWG
mm²	5x 0.34 mm²
Cable shield	Tinned copper braiding, coverage 84%, 0.25 mm² with filler
Material	Polyurethane (PUR) UL
Color	Gray
Wire insulation	Polypropylene (PP) 9Y
Wire colors	Brown, black, blue, white, gray
Type	Uncoated copper ETP1Fine stranded wire (42x 0.1 mm / 42x 38 AWG), class 5
Stranding	5 wires stranded using filler
Nominal current	Max. 4 A / Contact at 40°C
Operating voltage	Max. 60 V
Degree of insulation	Category II per IEC 61076-2
Conductor resistance	≤57 Ω/km
Insulation resistance	≥100 MΩ
Connector/Coupling	IP67, only when screwed in
Transport	-40 to 90°C
Fixed installation	-30 to 90°C
Flexible installation	-25 to 60°C
Length	15 m
Diameter	5.6 mm ±0.2 mm
Bend radius	≥12x outer diameter
Acceleration	Max. 5 m/s²
Flex cycles	2 million
Velocity	Max. 1.6 m/s
