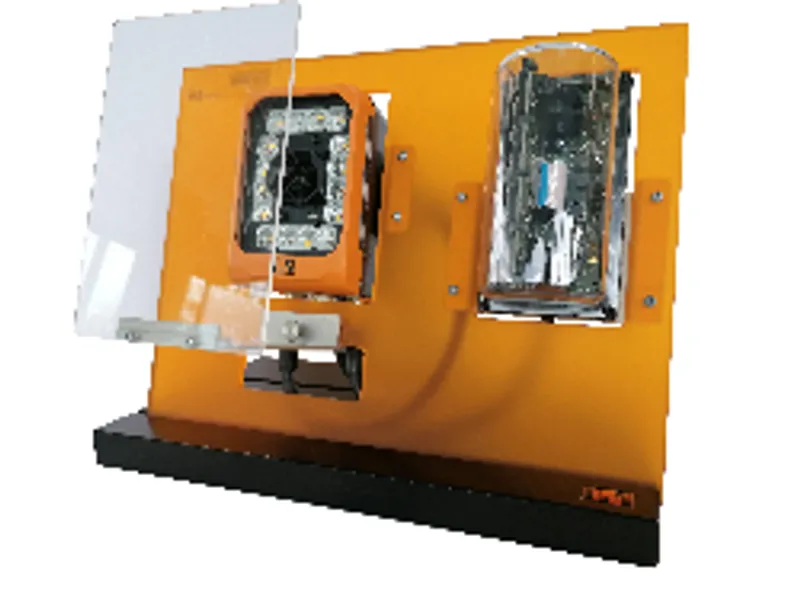

B&R ETAL220.1610-1
ETA light vision sensor and light bar can be for one…
- MPN
- ETAL220.1610-1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R ETAL220.1610-1?
ETA light vision sensor and light bar can be used for one task (reading, measuring, locating, etc.) function defined in the project and not by order number simple configuration instead of complex programming electronic focus adjustment powerful FPGA image preprocessing modularly expandable with other ETA light systems via POWERLINK compact dimensions
Specifications
General information
| Input voltage | 24 VDC -15% / +20% |
| Power consumption | 23 W |
| Reverse polarity protection | Yes |
24 VDC power supply
| Connection | Low voltage female connector 5.5 mm / 2.1 mm (0TP650.07) |
Mechanical properties
| Dimensions – Width | 300 mm |
| Dimensions – Height | 230 mm |
| Dimensions – Depth | 95 mm (with object holder removed) |
Brief overview
| Content of delivery | This product contains the following materials: ; ; VSS112R22.041P-000 ; VSLL11R20.67AP-000 ; VAC0YC020 ; ; For details and additional technical data, see the data sheets for the individual products. |
Accessories
Required accessories (order separately)
| ETAL100.0000-2 | Accessories — The base plate is made of wood and coated black. Up to two ETA light products can be accommodated on one base plate.ETAL100.0000-2 - Base p… |
| 0TP650.07 | Accessories — Power supply unit for supplying products from the ETA and ETA Light portfolioConnector compatibility: See the technical data of the product… |
| 0TP370.76 | Accessories — Cold appliance power supply cable with a length of 2 meters suitable for a wide-range desktop power supply unit from the ETA light system.0… |
Optional accessories (2)
| ETAL100.1Y05-0 | Accessories — Using a Y-cable, it is possible to supply two ETA light systems using only one power supply. Many products from the ETA light system can be… |
| X20CA0E61.00100 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
ETAL220.1610-1: frequently asked questions
When can ETAL220.1610-1 be shipped?
ETAL220.1610-1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up ETAL220.1610-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for ETAL220.1610-1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for ETAL220.1610-1, subject to availability and destination.
