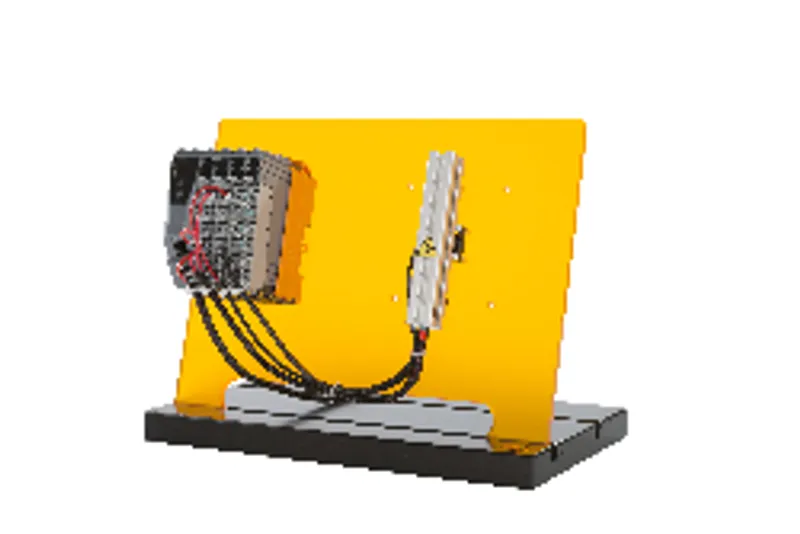

What is the B&R ETAL260.1000-1?

The ETA light system can be used to implement various types of temperature control loops. The setup is equipped with a fan for applying a disturbance variable. Thermocouples in the zone are used to measure temperatures directly at the heating unit and in the middle of the zone. This makes it possible to observe the heat dissipation through the material. Thermal circuit breakers automatically disconnect the heating unit from the power supply in the event of an error.

Single-zone temperature control

Two thermocouples per zone to measure temperature

Thermal circuit breakers for safety

Fan as source of disturbance

Compact dimensions

Specifications

General information

Certifications – CE	Yes
Input voltage	24 VDC -15% / +20%
B&R ID code	0xFA53
Power consumption	46 W
Reverse polarity protection	Yes

24 VDC power supply

Connection

Low-voltage connector KYCON KPPX-4P (0TP650.11)

Mechanical properties

Dimensions – Width	300 mm
Dimensions – Height	230 mm
Dimensions – Depth	90 mm

Brief overview

Content of delivery

This product contains the following materials: ; ; ETAL100.0200-1 ; X20BC0083 ; X20PS9400 ; X20DO4332; X20DS1119 ; X20AT2402 ; ; For details and additional technical data, see the data sheets for the individual products.

Accessories

Required accessories (order separately)

ETAL100.0000-2	Accessories — The base plate is made of wood and coated black. Up to two ETA light products can be accommodated on one base plate.ETAL100.0000-2 - Base p…
0TP370.76	Accessories — Cold appliance power supply cable with a length of 2 meters suitable for a wide-range desktop power supply unit from the ETA light system.0…

Optional accessories (1)

X20CA0E61.00100

POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
