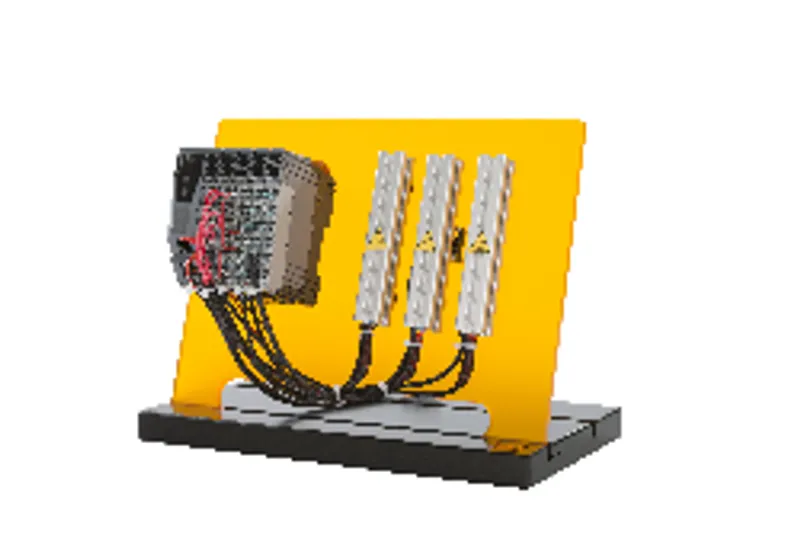

B&R ETAL260.1000-3

The ETA light system can be to implement various types…

MPN: ETAL260.1000-3

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

What is the B&R ETAL260.1000-3?

The ETA light system can be used to implement various types of temperature control loops. There is a fan in the middle zone that can be used to introduce a disturbance variable. Thermocouples in each zone are used to measure temperatures directly at the heating unit and in the middle of the zone. This makes it possible to observe the heat dissipation through the material. Thermal switches automatically disconnect the heating units from the power supply in the event of an error.

3-zone temperature control

2 thermocouples per zone to measure temperature

Thermal circuit breakers for safety

Fan in middle zone as disturbance variable

Compact dimensions

Specifications

General information

Certifications – CE	Yes
Input voltage	24 VDC -15% / +20%
B&R ID code	0xF43B
Power consumption	126 W
Reverse polarity protection	Yes

24 VDC power supply

Connection

Low-voltage connector KYCON KPPX-4P (0TP650.11)

Mechanical properties

Dimensions – Width	300 mm
Dimensions – Height	230 mm
Dimensions – Depth	90 mm

Brief overview

Content of delivery

This product contains the following materials:; ; ETAL100.0200-1; X20BC0083 ; X20PS9400; X20DO4332 ; X20DS1119 ; X20AT6402 ; ; For details and additional technical data, see the data sheets for the individual products.

Accessories

Required accessories (order separately)

ETAL100.0000-2	Accessories — The base plate is made of wood and coated black. Up to two ETA light products can be accommodated on one base plate.ETAL100.0000-2 - Base p…
0TP370.76	Accessories — Cold appliance power supply cable with a length of 2 meters suitable for a wide-range desktop power supply unit from the ETA light system.0…

Optional accessories (1)

X20CA0E61.00100

POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
