B&R ETAL210.1050-1

System offers you a wide range of options…

MPN: ETAL210.1050-1

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

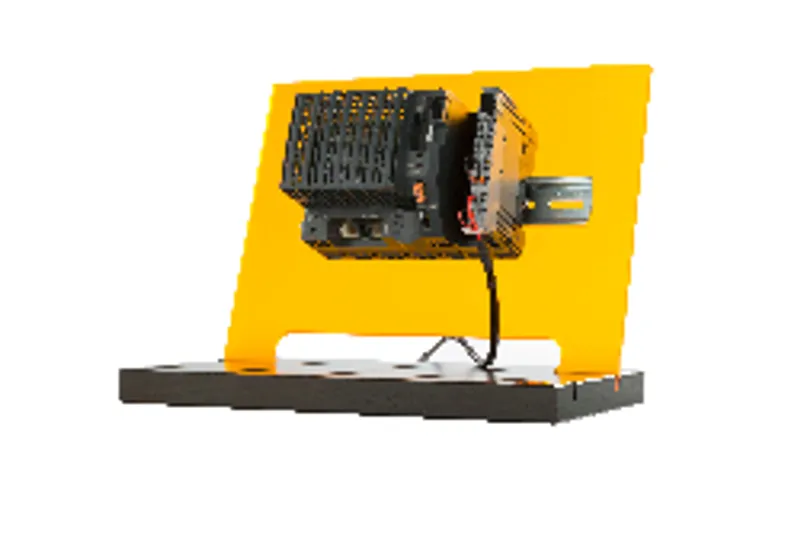

What is the B&R ETAL210.1050-1?

System ETAL210.1050-1 offers you a wide range of options from entry-level programming to more complex programming processes and even includes HMI. With other products from the ETA light system portfolio, the range of functions can be easily adapted and expanded to meet training needs.

ETAL210.1050-1 - ETA light system control technology X20CP1586

Enables extensive control tasks

High processing power thanks to Intel® Atom™ CPU

Integrated HMI with VNC server and web server

Integrated FTP and web server

Closed-loop control and mathematical functions

Data recording on mass storage device

Web-based system diagnostics

Modular with other ETA light systems via POWERLINK

Compact dimensions

Specifications

General information

Certifications – CE	Yes
Input voltage	24 VDC -15% / +20%
B&R ID code	0xEADD
Power consumption	11.5 W
Reverse polarity protection	Yes

24 VDC power supply

Connection

Low voltage female connector 5.5 mm / 2.1 mm (0TP650.07)

Mechanical properties

Dimensions – Width	300 mm
Dimensions – Height	230 mm
Dimensions – Depth	90 mm
Weight	1.4 kg

Brief overview

Content of delivery

This product contains the following materials:; ; ETAL100.0200-1; X20CP1586; 5CFCRD.0512-06; ETAL100.3200-12; ; For details and additional technical data, see the data sheets for the individual products.

Accessories

Required accessories (order separately)

ETAL100.0000-2	Accessories — The base plate is made of wood and coated black. Up to two ETA light products can be accommodated on one base plate.ETAL100.0000-2 - Base p…
0TP650.07	Accessories — Power supply unit for supplying products from the ETA and ETA Light portfolioConnector compatibility: See the technical data of the product…
0TP370.76	Accessories — Cold appliance power supply cable with a length of 2 meters suitable for a wide-range desktop power supply unit from the ETA light system.0…

Optional accessories (3)

ETAL100.1Y05-0	Accessories — Using a Y-cable, it is possible to supply two ETA light systems using only one power supply. Many products from the ETA light system can be…
X20CA0E61.00100	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
ETAL120.1050-1	Simulation and input devices — ETAL210.1050-1 offers a wide range of possibilities. In order to implement exercises with sensors and actuators, the ETA light system can b…

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

Certificates (1)

EU Declaration of conformity ETA Light SystemPDF · 93 KB · 2024-10 (11/04/2024)
