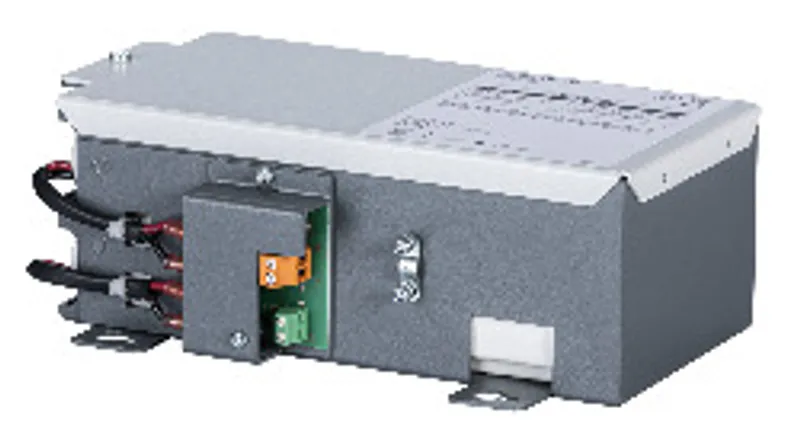

B&R 9A0100.16

UPS battery unit type C, 24 V, 4.5 Ah

MPN: 9A0100.16
Category: Battery units

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 9A0100.16?

UPS battery unit type C, 24 V, 4.5 Ah, including battery cage

Specifications

General information

Battery – Type	Hawker Cyclon 12 V, 4.5 Ah, two rechargeable batteries connected in series
Battery – Service life	Up to 15 years (note: Depends on the ambient temperature and charge/discharge cycles at 20°C (up to 80% battery capacity).)
Battery – Variant	Single cell (VRLA)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Certifications – UL	cULus E115267; Industrial control equipment
Temperature sensor	NTC resistance
Service interval during storage	Charge 1 time every 6 months

Electrical properties

Battery charging data – Charging current	2.88 A (note: Maximum charging current.)
Nominal voltage	24 V
Capacity	4.5 Ah
Fuse	Yes

Ambient conditions

Temperature – Operation	-40 to 80°C (note: Battery backing is no longer provided if the temperature undershoots the minimum temperature or overshoots the maximum temperature. The battery is also no longer charged since this can result in damage to the battery.)
Temperature – Storage	-65 to 80°C
Temperature – Transport	-65 to 80°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
Elevation – Operation	Max. 3000 m

Mechanical properties

Dimensions – Width	145 mm
Dimensions – Length	223.2 mm
Dimensions – Height	78.2 mm
Weight	Approx. 5000 g

Accessories

Optional accessories (1)

9A0100.17

Undefined — UPS battery compartment type C (replacement part), 2x 12 V, 4.5 Ah, for battery unit 9A0100.16

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

CAD & dimension drawings

3D file DXF/STEP 9A0100.16ZIP · 284 KB · 1.00 (07/02/2014)
