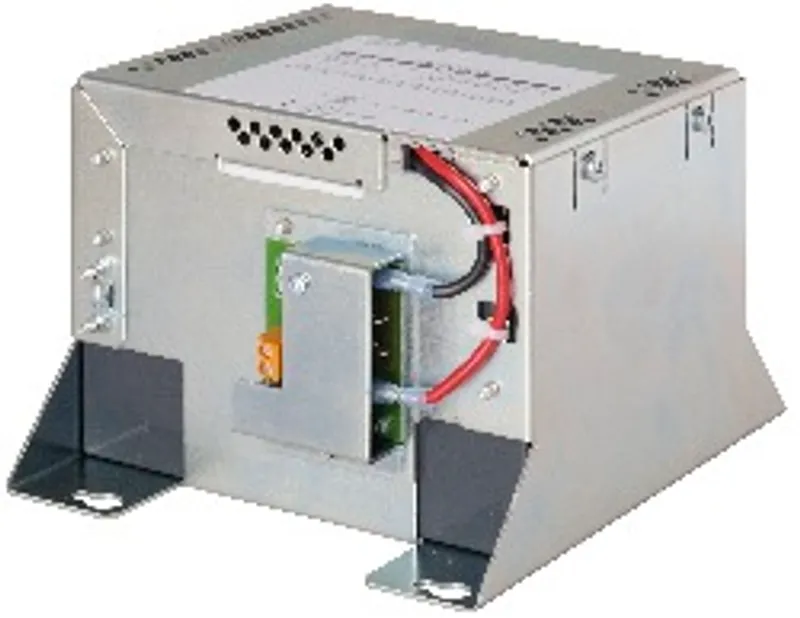

9A0015.99B&R 9A0100.12
UPS battery unit type A, 24 V, 7 Ah, including battery cage
- MPN
- 9A0100.12
- Category
- Battery units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 9A0100.12?
UPS battery unit type A, 24 V, 7 Ah, including battery cage
Specifications
General information
| Battery – Type | Panasonic 12 V, 7.2 Ah, two rechargeable batteries connected in series |
| Battery – Service life | Up to 10 years (note: Depends on ambient temperature and charge/discharge cycles.) |
| Battery – Variant | Maintenance-free lead acid battery |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Temperature sensor | NTC resistance |
| Service interval during storage | Charge 1 time every 6 months |
Electrical properties
| Battery charging data – Charging current | Typ. 2.88 A (note: Maximum charging current.) |
| Nominal voltage | 24 V |
| Capacity | 7.2 Ah |
| Fuse | Yes |
Ambient conditions
| Temperature – Operation | 0 to 40°C (note: Battery backing is no longer provided if the temperature undershoots the minimum temperature or overshoots the maximum temperature. The battery is also no longer charged since this can result in damage to the battery.) |
| Temperature – Storage | -15 to 40°C |
| Temperature – Transport | -15 to 40°C |
| Relative humidity – Operation | 25 to 85%, non-condensing |
| Relative humidity – Storage | 25 to 85%, non-condensing |
| Relative humidity – Transport | 25 to 85%, non-condensing |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Dimensions – Width | 202 mm |
| Dimensions – Length | 155.5 mm |
| Dimensions – Height | 116 mm |
| Weight | Approx. 6350 g |
Accessories
Optional accessories (1)
| 9A0100.13 | Undefined — UPS battery compartment type A (replacement part), 2x 12 V, 7 Ah, for battery unit 9A0100.12 |
