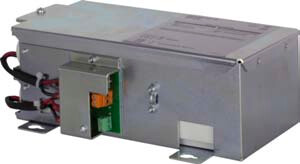

B&R 9A0100.17

UPS battery compartment type C (replacement part), 2x 12 V

MPN: 9A0100.17

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 9A0100.17?

UPS battery compartment type C (replacement part), 2x 12 V, 4.5 Ah, for battery unit 9A0100.16

Specifications

General information

Battery – Type	Hawker Cyclon 12 V 4.5 Ah
Battery – Service life	Up to 15 years (note: Depends on ambient temperature and charge/discharge cycles.)
Battery – Variant	Single cell (VRLA)
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Service interval during storage	Charge 1 time every 6 months

Electrical properties

Battery charging data – Charging current	Typ. 2.88 A (note: Maximum charging current.)
Nominal voltage	12 V
Capacity	4.5 Ah

Ambient conditions

Temperature – Operation	-40 to 80°C (note: Battery backing is no longer provided if the temperature undershoots the minimum temperature or overshoots the maximum temperature. The battery is also no longer charged since this can result in damage to the battery.)
Temperature – Storage	-65 to 80°C
Temperature – Transport	-65 to 80°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing

Mechanical properties

Dimensions – Width	38 mm
Dimensions – Length	205 mm
Dimensions – Height	102 mm
Weight	Approx. 3600 g
