B&R 9A0100.15

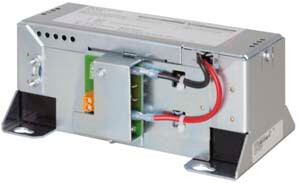

UPS battery set type B (replacement part), 2x 12 V, 2.2 Ah

MPN: 9A0100.15

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 9A0100.15?

UPS battery set type B (replacement part), 2x 12 V, 2.2 Ah, for battery unit 9A0100.14

Specifications

General information

Battery – Type	Panasonic 12 V 2.2 Ah
Battery – Service life	Up to 5 years (note: Depends on ambient temperature and charge/discharge cycles.)
Battery – Variant	Maintenance-free lead acid battery
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Service interval during storage	Charge 1 time every 6 months

Electrical properties

Battery charging data – Charging current	Typ. 0.88 A (note: Maximum charging current.)
Nominal voltage	12 V
Capacity	2.2 Ah

Ambient conditions

Temperature – Operation	0 to 40°C (note: Battery backing is no longer provided if the temperature undershoots the minimum temperature or overshoots the maximum temperature. The battery is also no longer charged since this can result in damage to the battery.)
Temperature – Storage	-15 to 40°C
Temperature – Transport	-15 to 40°C
Relative humidity – Operation	25 to 85%, non-condensing
Relative humidity – Storage	25 to 85%, non-condensing
Relative humidity – Transport	25 to 85%, non-condensing

Mechanical properties

Dimensions – Width	34 mm
Dimensions – Length	117 mm
Dimensions – Height	66 mm
Weight	Approx. 1900 g
