Battery units Parts

B&R

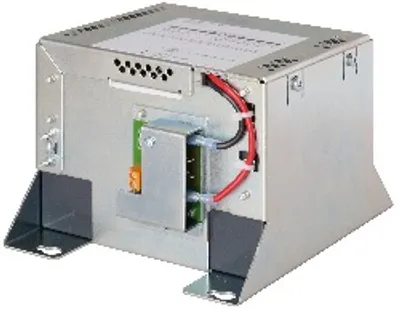

UPS battery unit type A, 24 V, 7 Ah, including battery cage

B&R

UPS battery unit type B, 24 V, 2.2 Ah

B&R

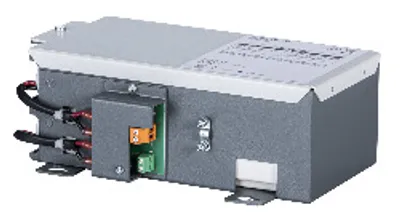

UPS battery unit type C, 24 V, 4.5 Ah

Compare Battery units

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Capacity	Dimensions – Width	Dimensions – Length	Dimensions – Height	Weight
9A0100.12	7.2 Ah	202 mm	155.5 mm	116 mm	Approx. 6350 g
9A0100.14	2.2 Ah	115 mm	181.5 mm	78 mm	Approx. 2550 g
9A0100.16	4.5 Ah	145 mm	223.2 mm	78.2 mm	Approx. 5000 g

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Temperature sensor	NTC resistance
Service interval during storage	Charge 1 time every 6 months
Nominal voltage	24 V
Fuse	Yes
Elevation – Operation	Max. 3000 m
