B&R 9A0100.11
24 VDC input voltage
- MPN
- 9A0100.11
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via

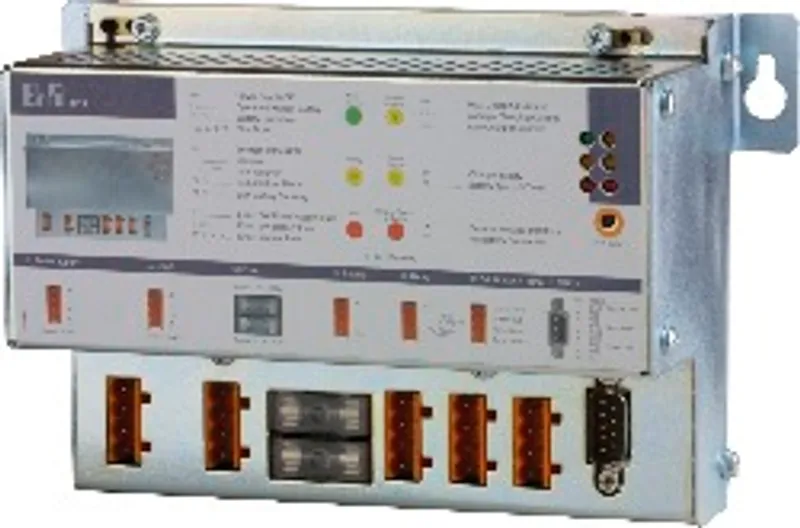

What is the B&R 9A0100.11?
24 VDC input voltage
24 VDC output voltage
Industrial standard installation
Communication via serial interface
Status indicators
Deep discharge protection
Short circuit protection
Maintenance free battery units
The UPS module is used to supply power for systems which cannot be connected directly to the +24 VDC power mains for safety reasons because a power failure could cause data to be lost. The UPS module allows the load system (e.g. industrial PC) to be shut down securely without losing data if a power failure occurs.
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – UL | cULus E115267; Industrial control equipment |
Interfaces
| COM1 – Type | RS232 (note: Clear To Send (CTS): Signals power failure Data Carrier Detect (DCD): Signals shutdown Data Terminal Ready (DTR): For signaling remote shutdown to the UPS) |
| COM1 – Variant | DSUB, 9-pin |
Support
| Operating systems – Windows XP Professional | Yes |
| Operating systems – Windows XP Embedded | Yes |
| Operating systems – Windows NT 4.0 | Yes |
| Operating systems – Windows ME | Yes |
| Operating systems – Windows 2000 | Yes |
| Operating systems – Windows 98 | Yes |
| Operating systems – Windows 95 | Yes |
Electrical properties
| Output during battery operation – Voltage range | 21 to 26.8 VDC (40°C) or 28.2 VDC (0°C) |
| Output during battery operation – Rated voltage value | 24 VDC+24 VDC power supply"."> (note: EN 60950 requirements must be observed; see section 2.6.1) |
| Output during battery operation – Max. output current | 8 A (load side) |
| Output during battery operation – Power failure bypass | Max. 20 minutes at 150 W load (with battery 9A0100.12, 24 V / 7.2 Ah) |
| Output during battery operation – Switching threshold for mains/battery operation | 18 V at 20 to 30 VDC input; 21.5 V at 23.5 to 30 VDC input |
| Output during mains operation – Voltage range | 20 to 30 VDC or 23.5 - 30 VDC depending on the set changeover threshold (note: Can be set using B&R UPS configuration software or HyperTerminal (18 or 21.5 VDC).) |
| Output during mains operation – Rated voltage value | 24 VDC+24 VDC power supply"."> (note: EN 60950 requirements must be observed; see section 2.6.1) |
| Output during mains operation – Max. output current | 8 A |
| Input during mains operation – Power failure bypass | Max. 20 min at 150 W load (note: Regulated DC voltage) |
| Input during mains operation – Voltage range | 20 to 30 VDC at a switching threshold of 18 V ; 23.5 to 30 VDC at a switching threshold of 21.5 V (note: Regulated DC voltage) |
| Input during mains operation – Rated voltage value | 24 VDC+24 VDC power supply"."> (note: Regulated DC voltage) |
| Input during mains operation – Switching threshold for rechargeable battery | 18 V (note: Regulated DC voltage) |
| Battery charging data – Charging clearing voltage | 27.6 VDC |
| Battery charging data – Charging current | From 0.88 A to 2.88 A depending on type (note: Configurable in steps of 0.01 A: Using B&R UPS configuration software and HyperTerminal (from 0.5 - 2.88 A) or 0.25 A: Using pushbutton (from 0.88 to 2.88 A).) |
| Fuse | Yes, for mains, battery, battery charger (note: The internal charger fuse is removed starting with revision L0.) |
| Deep discharge protection | Yes, cutoff threshold 21 VDC |
| Reverse polarity protection | Yes, for mains and battery |
| Short-circuit proof | Yes |
| Overvoltage category per EN 61131-2 | II |
Ambient conditions
| Temperature – Operation | 0 to 55°C |
| Temperature – Storage | -20 to 60°C |
| Temperature – Transport | -20 to 60°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
| Vibration – Operation | Max. 9 to 200Hz and 1g (9.8 m/s² 0-peak) |
| Vibration – Storage | Max. 2 to 500Hz and 4g (39.2 m/s² 0-peak) |
| Vibration – Transport | Max. 2 to 500Hz and 4g (39.2 m/s² 0-peak) |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 100 g, 6 ms |
| Shock – Transport | 100 g, 6 ms |
| Elevation – Operation | Max. 3000 m |
Mechanical properties
| Dimensions – Width | 185 mm |
| Dimensions – Height | 115 mm |
| Dimensions – Depth | 69 mm |
| Weight | Approx. 1100 g |
Accessories
Required accessories (order separately)
| 9A0100.16 | Battery units — UPS battery unit type C, 24 V, 4.5 Ah, including battery cage |
| 9A0100.14 | Battery units — UPS battery unit type B, 24 V, 2.2 Ah, including battery cage |
| 9A0100.12 | Battery units — UPS battery unit type A, 24 V, 7 Ah, including battery cage |
| 9A0017.02 | Others — Null modem cable RS232, 1.8 m, for connecting UPS and IPC (9-pin female DSUB connector - 9-pin female DSUB connector) |
| 9A0017.01 | Others — Null modem cable RS232, 0.6 m, for connecting UPS and IPC (9-pin female DSUB connector - 9-pin female DSUB connector) |
Optional accessories (3)
| 9A0100.17 | Undefined — UPS battery compartment type C (replacement part), 2x 12 V, 4.5 Ah, for battery unit 9A0100.16 |

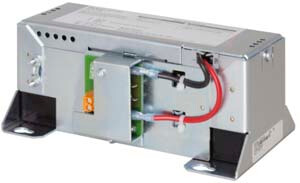

| 9A0100.15 | Undefined — UPS battery set type B (replacement part), 2x 12 V, 2.2 Ah, for battery unit 9A0100.14 |

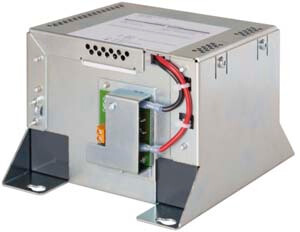

| 9A0100.13 | Undefined — UPS battery compartment type A (replacement part), 2x 12 V, 7 Ah, for battery unit 9A0100.12 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
CAD & dimension drawings
9A0100.11: frequently asked questions
When can 9A0100.11 be shipped?
9A0100.11 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 9A0100.11 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 9A0100.11 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 9A0100.11, subject to availability and destination.
