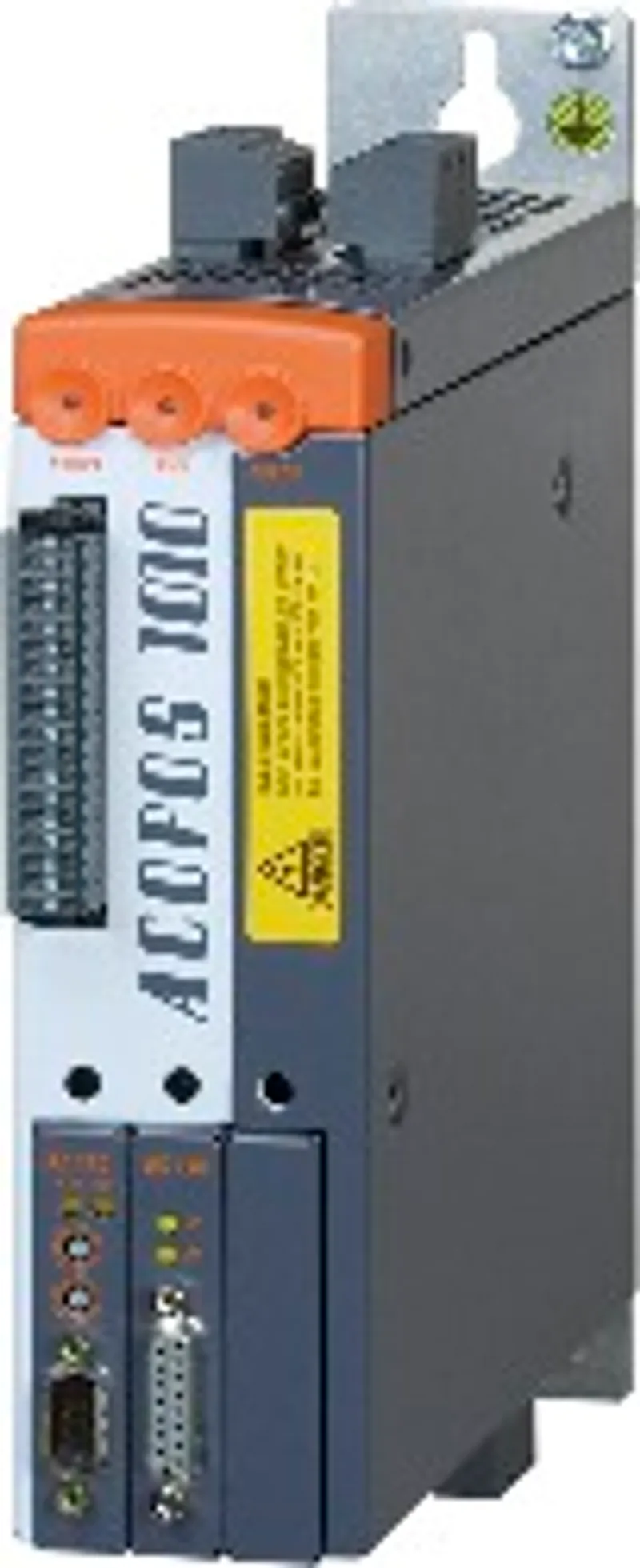

B&R 8V1010.501-2
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Servo drives |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 2.5 kg |
Shipping & availability
When can 8V1010.501-2 be shipped?
8V1010.501-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8V1010.501-2 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8V1010.501-2 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8V1010.501-2, subject to availability and destination.
Designed for operation on a single-phase or three-phase power mainsModular mechanical design using plug-in modulesIntegrated line filterIntegrated braking resistorIntegrated electronic restart inhibitPartially-coated circuit boards - more robust in regard to environmental influences (8Vxxxx.001-2) ACOPOS servo drive, 3x 110-230 V / 1x 110-230 V, 2.3 A, 0.45 kW, coated, integrated line filter, braking resistor and electronic safe restart interlock
Specifications
Specifications
| Note | Variant with partially coated printed circuit boards |
| B&R ID code | 0xA6D5 |
| Slots for plug-in modules | 3 |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | Evaluation ongoing |
| Functional safety | Yes |
| UL | cULus E225616Power conversion equipment |
| KC | Yes |
| Permissible network configurations | TT, TN |
| Mains input voltage | 3x 110 VAC to 230 VAC ±10% or 1x 110 VAC to 230 VAC ±10% |
| Frequency | 50 / 60 Hz ±4% |
| Installed load | Max. 1.35 kVA |
| Inrush current | 5 A (at 230 VAC) |
| Switch-on interval | >10 s |
| Integrated line filter per EN 61800-3, category C3 | Yes |
| Power dissipation at device nominal power without braking resistor | 80 W |
| DC bus capacitance | 2040 µF |
| Input voltage | 24 VDC +25% / -20% |
| Input capacitance | 5600 µF |
| Current consumption | Max. 1.47 A + Current for motor holding brake |
| Quantity | 2 |
| Continuous current | 2.3 Aeff |
| Switching frequency 5 kHz | No reduction |
| Switching frequency 10 kHz | No reduction |
| Switching frequency 20 kHz | No reduction |
| Starting at 500 m above sea level | 0.23 Aeff per 1000 m |
| Peak current | 7.8 Aeff |
| Nominal switching frequency | 10 kHz |
| Possible switching frequencies | 5 / 10 / 20 kHz |
| Insulation stress of the connected motor per IEC TS 60034-25:2004 | Limit value curve A |
| Max. motor line length | 15 m |
| Overload protection | Yes |
| Short-circuit and ground fault protection | Yes |
| Max. output frequency | 598 Hz |
| With wire end sleeve | 0.25 to 4 mm² |
| UL/C-UL-US | 30 to 10 AWG |
| CSA | 28 to 10 AWG |
| Response threshold for open-circuit monitoring | Approx. 245 mA |
| Max. output current | 1.3 A |
| Max. number of switching cycles | Unlimited since implemented electronically |
| Peak power output | 1.9 kW |
| Continuous power | 130 W |
| Circuit | Sink |
| Input - ACOPOS | Yes |
| Input - Input | No |
| Nominal | 5 to 40°C |
| Maximum | 55°C |
| Low | <5 V |
| High | >15 V |
| Input current at nominal voltage | Approx. 10 mA |
| Switching delay | Max. 2.0 ms |
| Modulation compared to ground potential | Max. ±38 V |
| Enable 0 → 1, ready for PWM | Max. 100 µs |
| Enable 1 → 0, PWM off | Max. 2.0 ms |
| OSSD signal connections | Not permitted |
| Rising edge | 52 µs ±0.5 µs (digitally filtered) |
| Falling edge | 53 µs ±0.5 µs (digitally filtered) |
| Discharge capacitance | 330 nF |
| Power dissipation relative to continuous apparent power | IE2 (10,25) 4.2% IE2 (50,25) 4.2% IE2 (10,50) 4.2% IE2 (50,50) 4.3% IE2 (90,50) 4.4% IE2 (10,100) 4.5% IE2 (50,100) 4.7% IE2 (90,100) 4.9% |
| Nominal losses in standby mode | 12.5 W |
| Hanging vertically | Yes |
| Horizontal, face up | Yes |
| Standing horizontally | No |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | II |
| Degree of protection per EN 60529 | IP20 |
| Storage | 5 to 95% |
| Transport | Max. 95% at 40°C |
| Operation | 5 to 85% |
| Width | 58.5 mm |
| Height | 257 mm |
| Depth | 220 mm |
| Weight | 2.5 kg |
