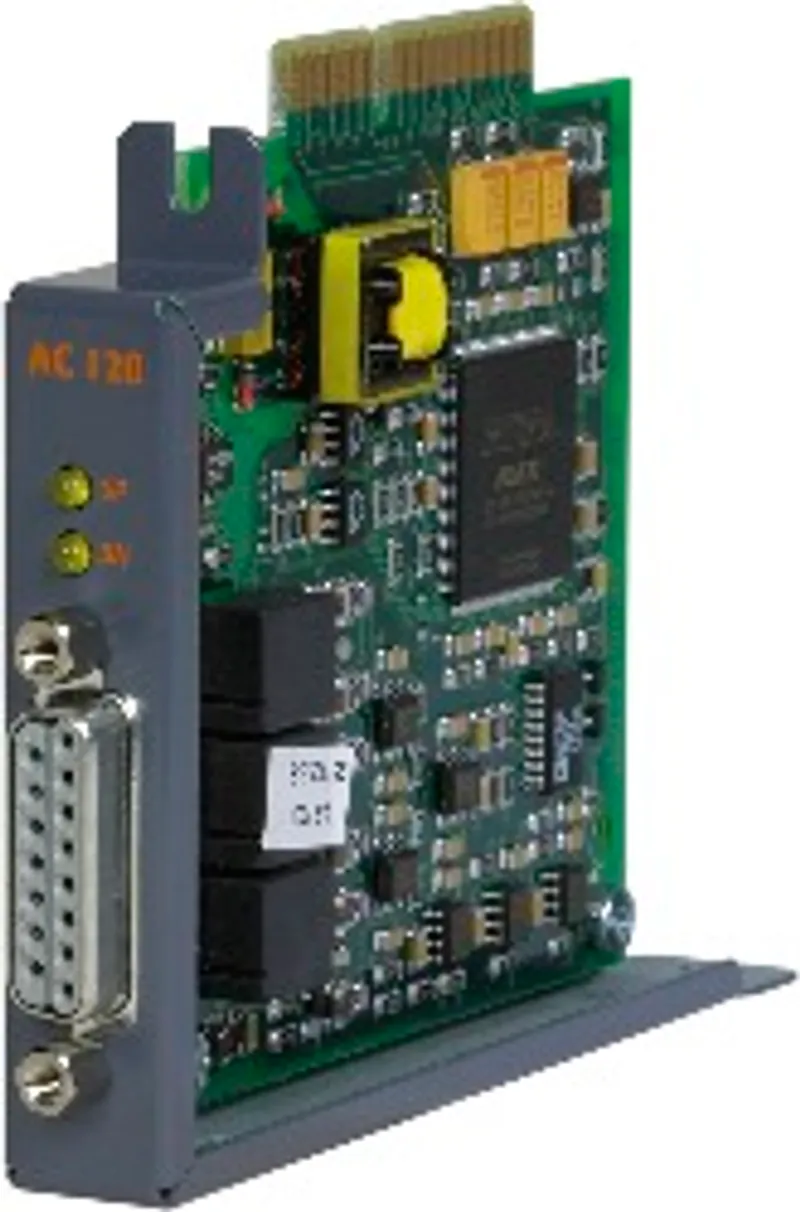

B&R 8AC120.60-1

EnDat 2.1 encoder interface for installation in ACOPOS…

MPN: 8AC120.60-1
Category: Plug-in modules

€47.70excl. VAT & shipping

In stock — 3 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 8AC120.60-1?

EnDat 2.1 encoder interface for installation in ACOPOS servo drives

Encoder monitoring

Also suitable for evaluating simple incremental encoders with sinusoidal input signal

ACOPOS plug-in module, EnDat encoder and sine incremental encoder interface

Specifications

General information

Power consumption – Depends on connected encoder	Yes
Power consumption – E0 ... EnDat single-turn, 512 lines	Max. 2.3 W
Power consumption – E1 ... EnDat multi-turn, 512 lines	Max. 3.1 W
Power consumption – E2 ... EnDat single-turn, 32 lines (inductive)	Max. 3.1 W
Power consumption – E3 ... EnDat multi-turn, 32 lines (inductive)	Max. 3.1 W
Power consumption – E4 ... EnDat single-turn, 512 lines	Max. 2.4 W
Power consumption – E5 ... EnDat multi-turn, 512 lines	Max. 2.7 W
Power consumption – E8 ... EnDat single-turn, 16 lines (inductive)	Max. 2.9 W
Power consumption – E9 ... EnDat multi-turn, 16 lines (inductive)	Max. 3.1 W
Power consumption – EA ... EnDat single-turn, 32 lines (inductive)	Max. 2.7 W
Power consumption – EB ... EnDat multi-turn, 32 lines (inductive)	Max. 3.0 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0x0FCC
Slot	Slots 2, 3 and 4 (note: The AC120 is an encoder module. It is also possible to connect multiple encoder modules. In this case, the encoder module in the smallest slot automatically serves as motor feedback.)

Encoder inputs

Electrical isolation – Encoder - ACOPOS	No
Encoder power supply – Output voltage	Typ. 5 V
Encoder power supply – Load capacity	250 mA
Encoder power supply – Sense lines	2, compensation of max. 2x 0.7 V
Sine/Cosine inputs – Signal transmission	Differential signals, symmetrical
Sine/Cosine inputs – Signal frequency (-3 dB)	DC up to 300 kHz
Sine/Cosine inputs – Signal frequency (-5 dB)	DC up to 400 kHz
Sine/Cosine inputs – Differential voltage	0.5 to 1.25 V ss
Sine/Cosine inputs – Common-mode voltage	Max. ±7 V
Sine/Cosine inputs – Terminating resistor	120 Ω
Sine/Cosine inputs – Resolution	16384 * Number of encoder lines (note: Depending on the resolution of the connected encoder, only part of this resolution can be used in practice. In addition, the usable resolution can be reduced by signal noise of the connected encoder.)
Sine/Cosine inputs – Accuracy	- (note: In practice, the accuracy is limited by the encoder.)
Reference input – Signal transmission	Differential signal, symmetrical
Reference input – Differential voltage for low	≤-0.2 V
Reference input – Differential voltage for high	≥+0.2 V
Reference input – Common-mode voltage	Max. ±7 V
Reference input – Terminating resistor	120 Ω
Serial interface – Signal transmission	Synchronous
Serial interface – Protocol	RS485
Serial interface – Baud rate	625 kbaud
Quantity	1
Module-side connection	15-pin female DSUB
Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	50 m (note: Requirement: Wiring takes place with a shielded cable with a wire cross section of min. 0.14 mm² for all signal lines and a wire cross section of min. 0.5 mm² for all encoder power supply lines. The sense lines must be used.)

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Optional accessories (6)

8CE025.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 25 m…
8CE020.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 20 m…
8CE015.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 15 m…
8CE010.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 10 m…
8CE007.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 7 m,…
8CE005.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 5 m,…
