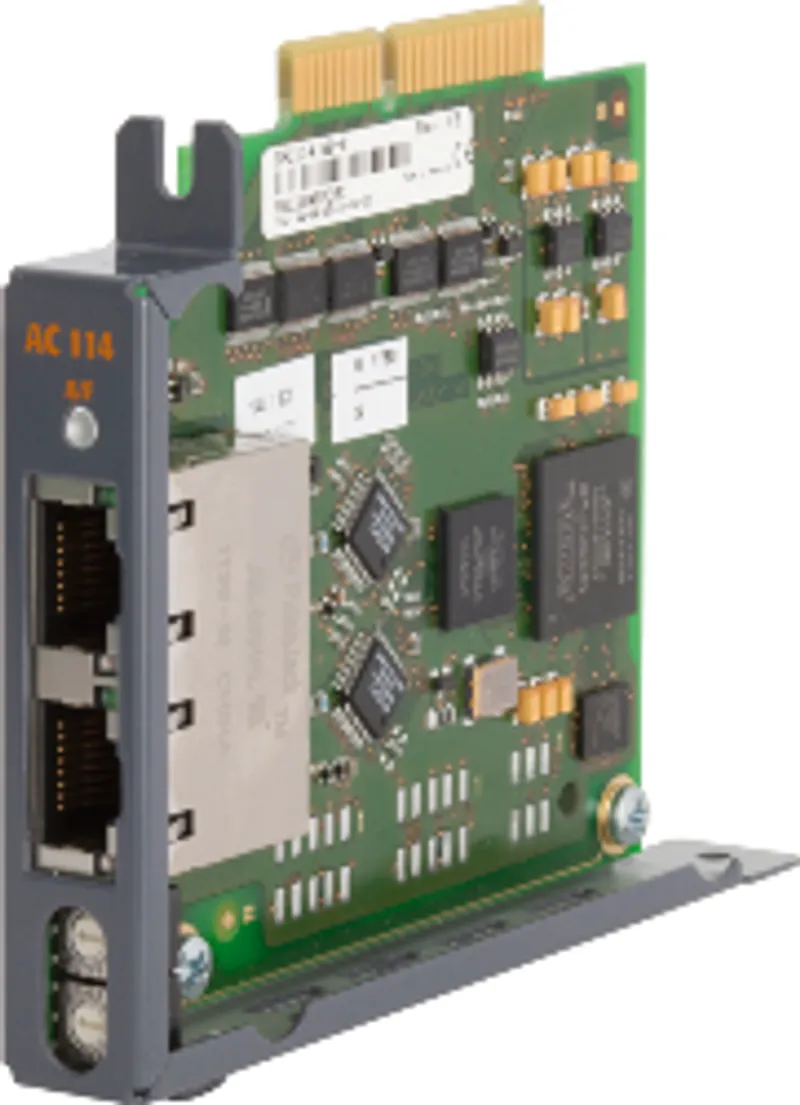

B&R 8AC114.60-2

POWERLINK interface for installation in ACOPOS servo drives

MPN: 8AC114.60-2
Category: Plug-in modules

€126.14excl. VAT & shipping

In stock — 2 available·Ships within 1 business day

Need a larger quantity or a formal quote?

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 8AC114.60-2?

POWERLINK interface for installation in ACOPOS servo drives

Integrated 2-port hub for easy wiring

For communication and configuration of ACOPOS servo drives in complex and time-critical applications

Node number configurable using switch

ACOPOS plug-in module, POWERLINK V2 interface

Specifications

General information

Support – Dynamic node allocation (DNA)	No
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0xA5C1
Slot	Slot 1
Power consumption	Max. 3 W

Interfaces

POWERLINK – Hardware	Yes (via ACOPOS servo drive)
POWERLINK – Software	Yes (via ACOPOS servo drive)
POWERLINK – Quantity	1
POWERLINK – Module-side connection	2x RJ45 port
POWERLINK – Status indicators	Status LED + 2x Link LED
POWERLINK – Transfer rate	100 Mbit/s
POWERLINK – 2-port hub	Yes
POWERLINK – Possible station operating modes	Synchronous to the POWERLINK cycle
POWERLINK – Electrical isolation	Yes
POWERLINK – Cabling topology	Star or tree with level 2 hubs
POWERLINK – Maximum number of hub levels	10
POWERLINK – Line length	Max. 100 m between two stations (segment length) (note: The maximum total cable length is 200 m with a cycle time of 400 µs and 10 ACOPOS servo drives.)
POWERLINK – Network-capable	Yes

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C

Accessories

Optional accessories (8)

X20CA0E61.01800	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 18 m
X20CA0E61.01000	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 10 m
X20CA0E61.00600	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 6 m
X20CA0E61.00500	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 5 m
X20CA0E61.00200	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 2 m
X20CA0E61.00100	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m
X20CA0E61.00050	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m
X20CA0E61.00020	POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m
