Servo drives Parts

B&R

8V1010.00-2

Modular mechanical design using plug-in modules

B&R

8V1010.001-2

Modular mechanical design using plug-in modules

B&R

8V1010.50-2

B&R

8V1010.501-2

B&R

8V1016.00-2

Modular mechanical design using plug-in modules

B&R

8V1016.001-2

Modular mechanical design using plug-in modules

B&R

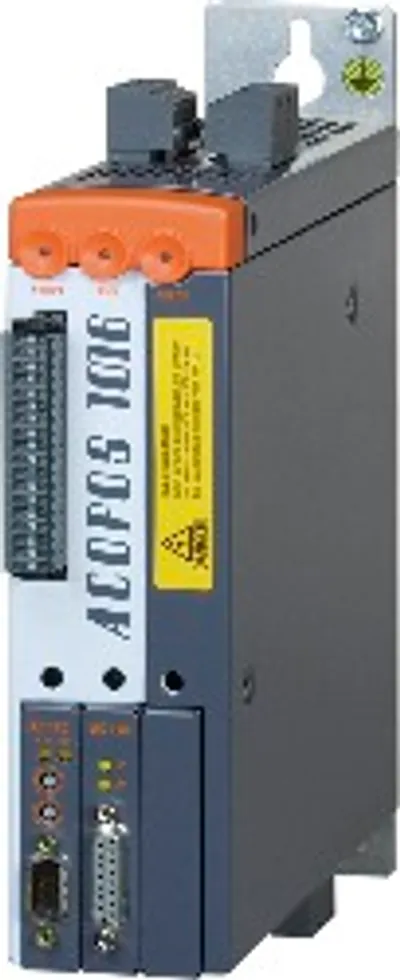

8V1016.50-2

B&R

8V1016.501-2

B&R

8V1022.00-2

Modular mechanical design using plug-in modules

B&R

8V1022.001-2

Modular mechanical design using plug-in modules

B&R

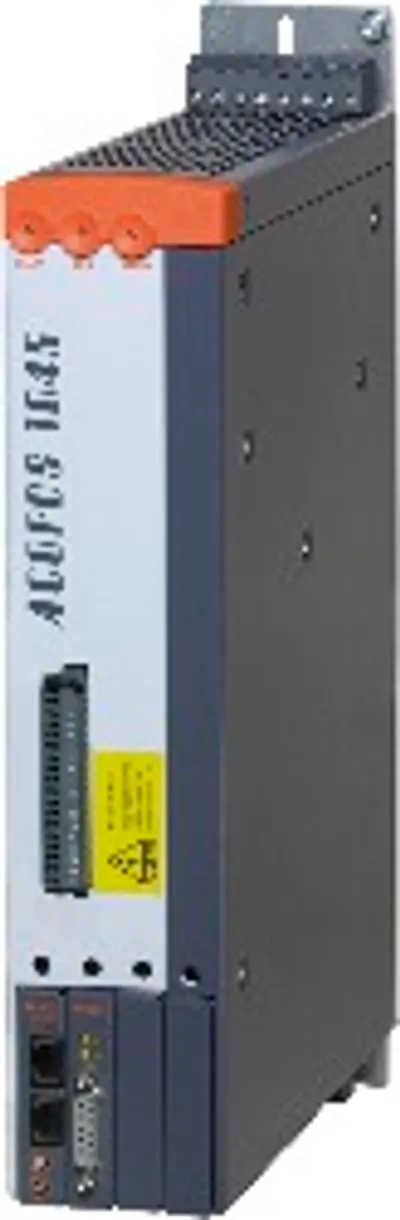

8V1045.00-2

Modular mechanical design using plug-in modules

B&R

8V1045.001-2

Modular mechanical design using plug-in modules

B&R

8V1090.00-2

Modular mechanical design using plug-in modules

B&R

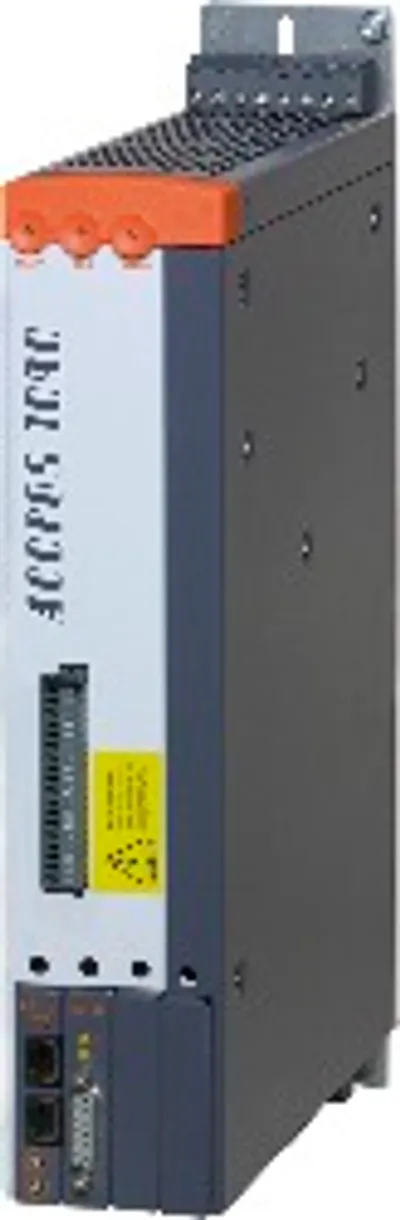

8V1090.001-2

Modular mechanical design using plug-in modules

B&R

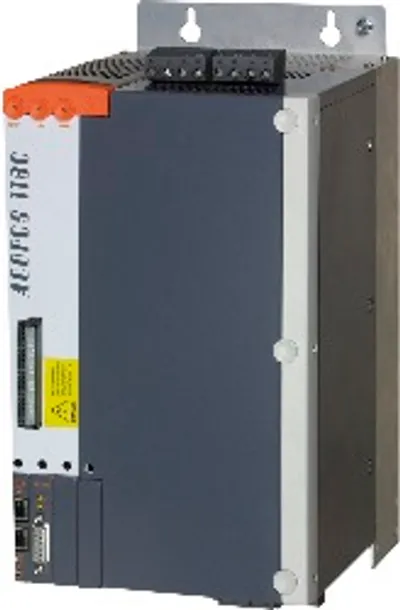

8V1180.00-2

Modular mechanical design using plug-in modules

B&R

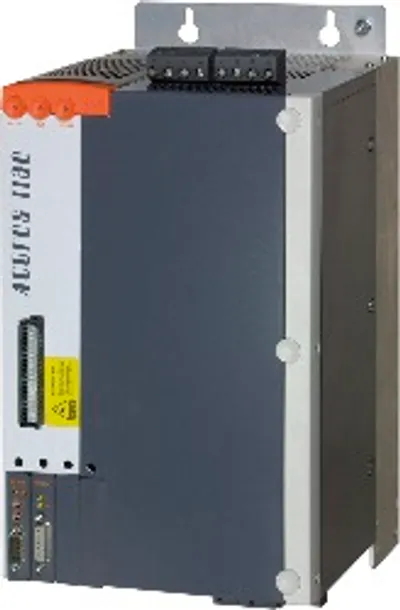

8V1180.001-2

Modular mechanical design using plug-in modules

B&R

8V128M.00-2

Modular mechanical design using plug-in modules

B&R

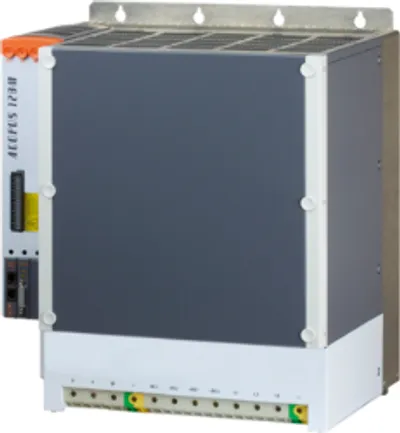

8V128M.001-2

Modular mechanical design using plug-in modules

B&R

8V1320.00-2

Modular mechanical design using plug-in modules

B&R

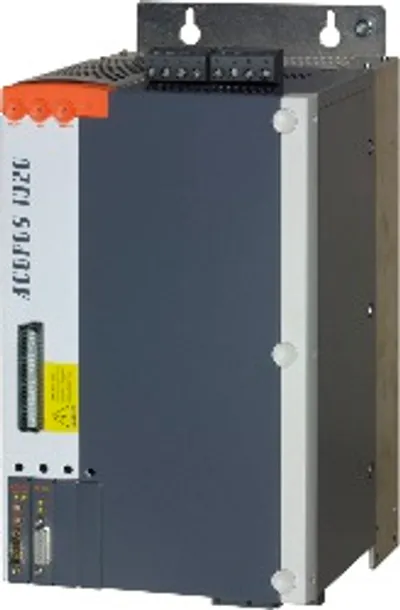

8V1320.001-2

Modular mechanical design using plug-in modules

B&R

8V1640.00-2

Modular mechanical design using plug-in modules

B&R

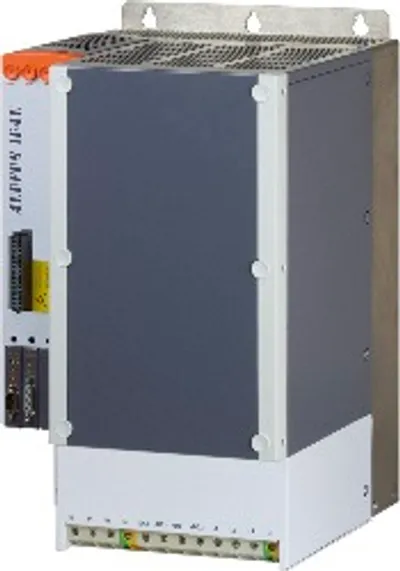

8V1640.001-2

Modular mechanical design using plug-in modules

Compare Servo drives

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Installed load	Power dissipation at device nominal power without braking resistor	DC bus capacitance	Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level	Peak current
8V1010.00-2	Max. 1.35 kVA	80 W	165 µF	0.1 A eff per 1000 m	2.8 A eff
8V1010.001-2	Max. 1.35 kVA	80 W	165 µF	0.1 A eff per 1000 m	2.8 A eff
8V1010.50-2	Max. 1.35 kVA	80 W	2040 µF	0.23 A eff per 1000 m	7.8 A eff
8V1010.501-2	Max. 1.35 kVA	80 W	2040 µF	0.23 A eff per 1000 m	7.8 A eff
8V1016.00-2	Max. 2.1 kVA	110 W	165 µF	0.16 A eff per 1000 m	5 A eff
8V1016.001-2	Max. 2.1 kVA	110 W	165 µF	0.16 A eff per 1000 m	5 A eff
8V1016.50-2	Max. 2.1 kVA	110 W	2040 µF	0.36 A eff per 1000 m	12 A eff
8V1016.501-2	Max. 2.1 kVA	110 W	2040 µF	0.36 A eff per 1000 m	12 A eff
8V1022.00-2	Max. 3 kVA	Approx. 120 W	235 µF	0.22 A eff per 1000 m	14 A eff
8V1022.001-2	Max. 3 kVA	Approx. 120 W	235 µF	0.22 A eff per 1000 m	14 A eff
8V1045.00-2	Max. 5 kVA	Approx. 180 W	235 µF	0.44 A eff per 1000 m	24 A eff
8V1045.001-2	Max. 5 kVA	Approx. 180 W	235 µF	0.44 A eff per 1000 m	24 A eff
8V1090.00-2	Max. 10 kVA	Approx. 200 W	470 µF	0.88 A eff per 1000 m	24 A eff
8V1090.001-2	Max. 10 kVA	Approx. 200 W	470 µF	0.88 A eff per 1000 m	24 A eff
8V1180.00-2	Max. 17 kVA	Approx. 500 W	940 µF	1.9 A eff per 1000 m	50 A eff
8V1180.001-2	Max. 17 kVA	Approx. 500 W	940 µF	1.9 A eff per 1000 m	50 A eff
8V128M.00-2	Max. 98 kVA	Approx. 3200 W	6600 µF	12.8 A eff per 1000 m	300 A eff
8V128M.001-2	Max. 98 kVA	Approx. 3200 W	6600 µF	12.8 A eff per 1000 m	300 A eff
8V1320.00-2	Max. 30 kVA	Approx. 800 W	1645 µF	3.4 A eff per 1000 m	80 A eff
8V1320.001-2	Max. 30 kVA	Approx. 800 W	1645 µF	3.4 A eff per 1000 m	80 A eff
8V1640.00-2	Max. 54 kVA	Approx. 1600 W	3300 µF	6.4 A eff per 1000 m	200 A eff
8V1640.001-2	Max. 54 kVA	Approx. 1600 W	3300 µF	6.4 A eff per 1000 m	200 A eff

Common to all listed parts

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – Functional safety	Yes
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Frequency	50 / 60 Hz ±4%
Switch-on interval	>10 s
