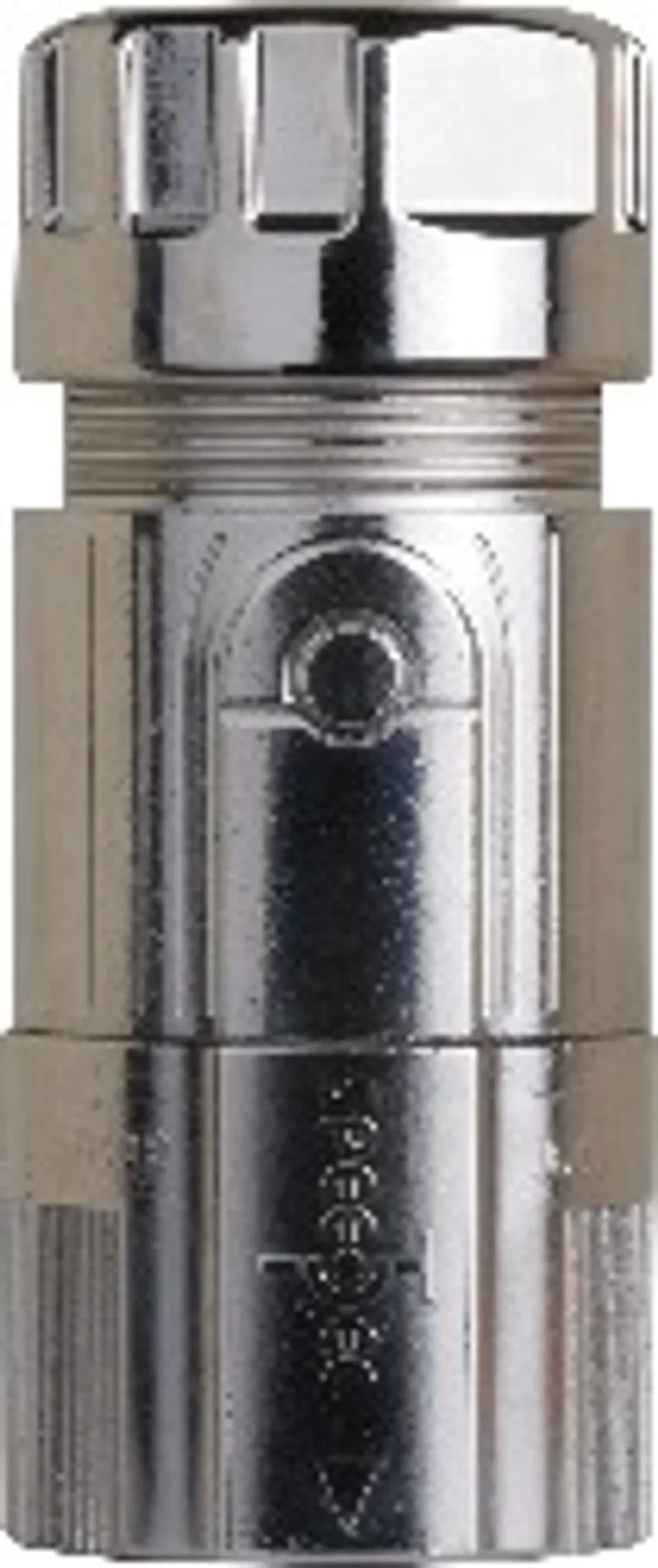

B&R 8BPM0003.0000-00

8-pin motor connector, speedtec, IP67

MPN: 8BPM0003.0000-00
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 8BPM0003.0000-00?

8-pin motor connector, speedtec, IP67, crimp contacts included in delivery: 4x 1.5-10.0 mm² + 4x 0.35-2.5 mm², cable terminals: 16.5-25.0 mm, UL/CSA listed

Specifications

General information

Insulator	PA 6.6 mod., UL 94 / V0
Contacts	Brass/Gold-plated
Protective ground connection on housing	Per VDE 0627
Connector size	Size 1.5
Number and type of contacts	8 (4 power and 4 signal contacts)
Pollution degree	3
Installation elevation	Up to 2000 m
Degree of protection DIN 40050	IP67 when connected
Certification	UL / CSA

Electrical properties

Power contacts – Contact resistance	<1 mΩ
Power contacts – Nominal voltage	630 V (AC/DC)
Power contacts – Nominal current	Max. 75 A
Power contacts – Test voltage (L - L)	6000 V
Signal contacts – Contact resistance	<3 mΩ
Signal contacts – Nominal voltage	250 V
Signal contacts – Nominal current	Max. 30 A
Signal contacts – Test voltage (L - L)	4000 V
Overvoltage category	III

Mechanical properties

Housing – Material	Zinc die-casting / Nickel-plated
Dimensions – Length	99 mm
Dimensions – Diameter	46 mm
Weight	56 g
Crimping range	4x 1.5 - 10 mm² + 4 x 0.5 - 2.5 mm²
Gasket	FPM
Mating cycles	>500
Cable terminals	16.5 - 25 mm
Temperature range	-20°C to +130°C
