Accessories Parts
Compare Accessories
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number and type of contacts | Signal contacts – Nominal voltage | Signal contacts – Test voltage (L - L) | Crimping range | Cable terminals |
|---|---|---|---|---|---|

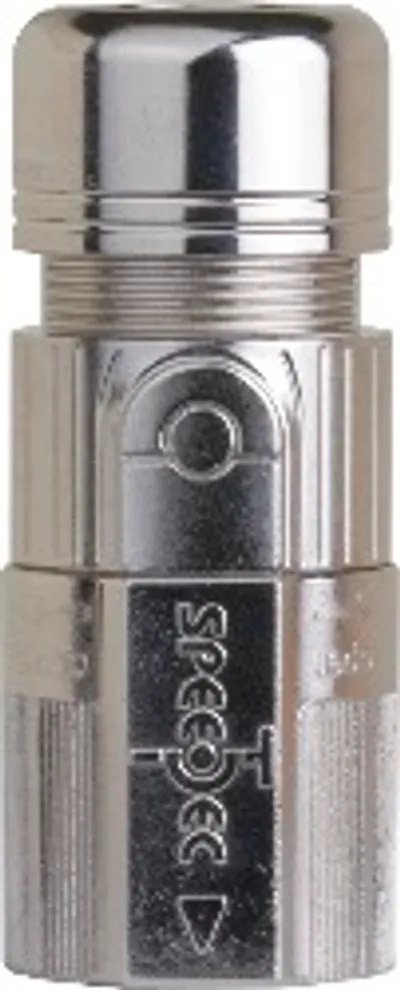

| 8BPE0001.0000-00 | 17 signal contacts | 125 V (AC/DC) | 2000 V | 17 x 0.06 - 1 mm² | 6 - 10 mm |

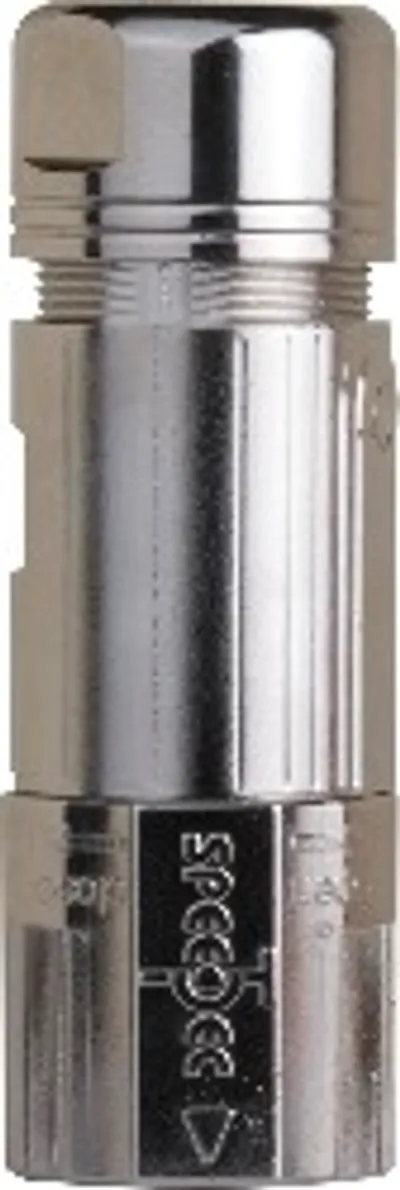

| 8BPM0001.0000-00 | 8 (4 power and 4 signal contacts) | 250 V (AC/DC) | 2500 V | 4 x 0.5 - 2.5 mm² + 4 x 0.06 - 1 mm² | 9.5 - 14.5 mm |

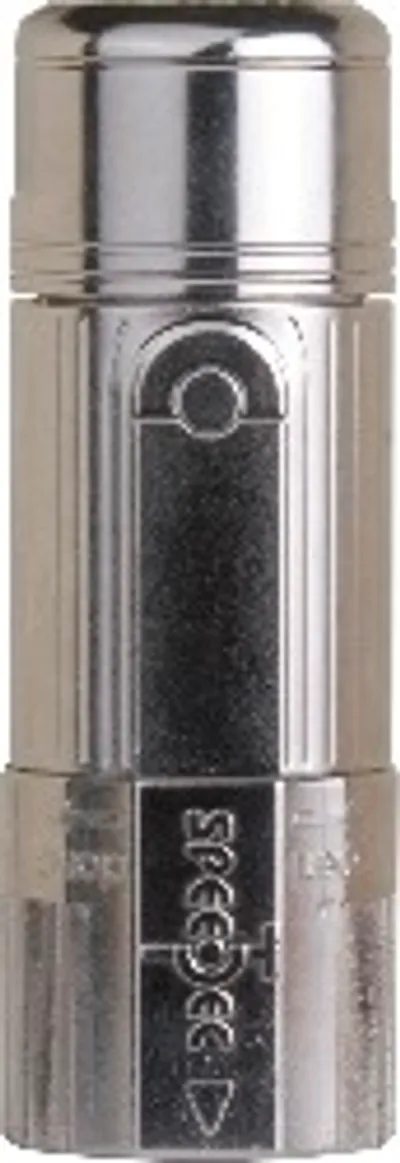

| 8BPM0002.0000-00 | 8 (4 power and 4 signal contacts) | 250 V (AC/DC) | 2500 V | 4 x 2.5 - 4 mm² + 4 x 0.06 - 1 mm² | 14 - 17 mm |

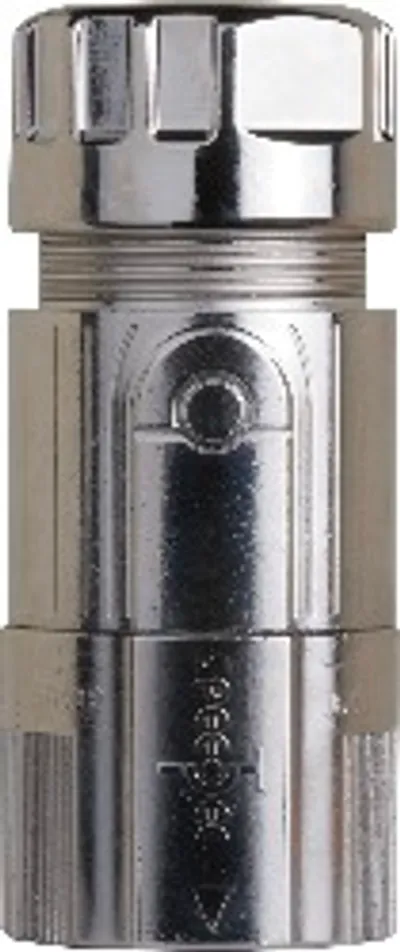

| 8BPM0003.0000-00 | 8 (4 power and 4 signal contacts) | 250 V | 4000 V | 4x 1.5 - 10 mm² + 4 x 0.5 - 2.5 mm² | 16.5 - 25 mm |

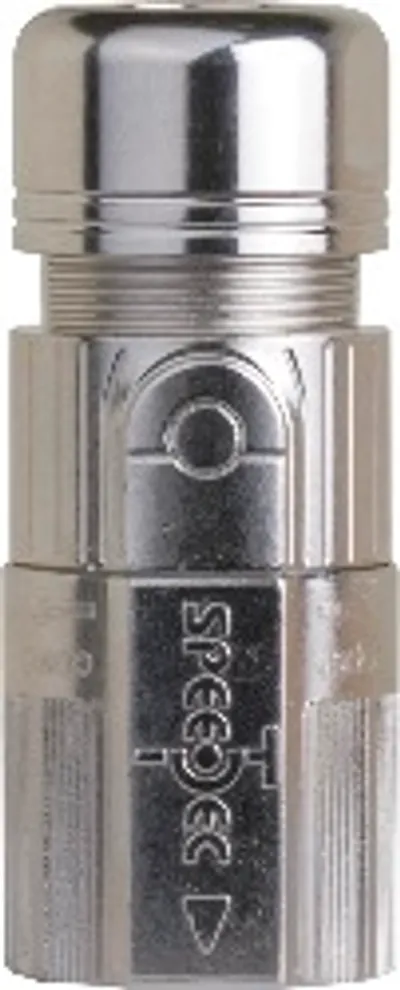

| 8BPR0001.0000-00 | 12 signal contacts | 160 V (AC/DC) | 2500 V | 12 x 0.06 - 1 mm² | 6 - 10 mm |
Common to all listed parts
| Pollution degree | 3 |
| Installation elevation | Up to 2000 m |
| Certification | UL / CSA |
| Overvoltage category | III |
| Housing – Material | Zinc die-casting / Nickel-plated |
| Weight | 56 g |
| Mating cycles | >500 |
| Temperature range | -20°C to +130°C |
