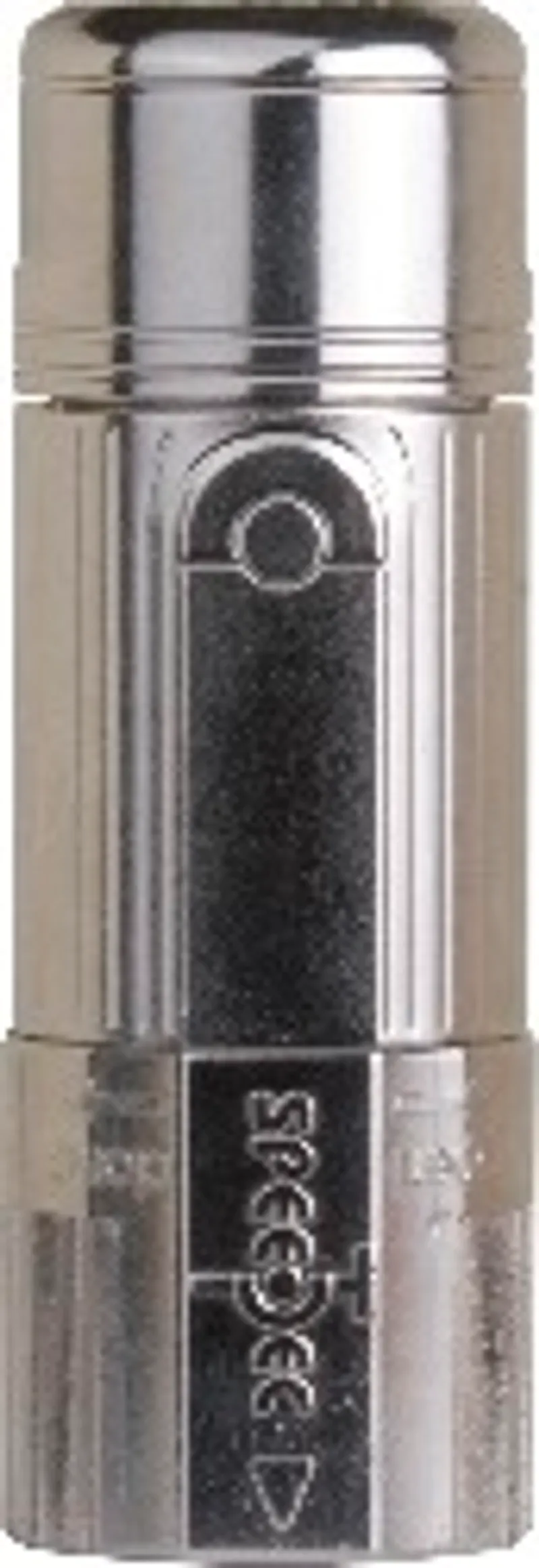

B&R 8BPM0002.0000-00

8-pin motor connector, speedtec, IP67

MPN: 8BPM0002.0000-00
Category: Accessories

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 8BPM0002.0000-00?

8-pin motor connector, speedtec, IP67, crimp contacts included in delivery: 4x 2.5-4.0 mm² + 4x 0.14-1.0 mm², cable terminals: 14.0-17.0 mm, UL/CSA listed

Specifications

General information

Insulator	PA 6.6 mod., UL 94 / V0
Contacts	Brass / Nickel-plated
Protective ground connection on housing	Per VDE 0627
Connector size	Size 1
Number and type of contacts	8 (4 power and 4 signal contacts)
Pollution degree	3
Installation elevation	Up to 2000 m
Degree of protection DIN 40050	IP67 when connected
Certification	UL / CSA

Electrical properties

Power contacts – Contact resistance	<3 mΩ
Power contacts – Nominal voltage	630 V (AC/DC)
Power contacts – Nominal current	Max. 30 A
Power contacts – Test voltage (L - L)	6000 V
Signal contacts – Contact resistance	<5 mΩ
Signal contacts – Nominal voltage	250 V (AC/DC)
Signal contacts – Nominal current	Max. 7 A
Signal contacts – Test voltage (L - L)	2500 V
Overvoltage category	III

Mechanical properties

Housing – Material	Zinc die-casting / Nickel-plated
Dimensions – Length	78 mm
Dimensions – Diameter	28 mm
Weight	56 g
Crimping range	4 x 2.5 - 4 mm² + 4 x 0.06 - 1 mm²
Gasket	FPM
Mating cycles	>500
Cable terminals	14 - 17 mm
Temperature range	-20°C to +130°C

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Data sheets & manuals

8BPM0002.0000-00: frequently asked questions

When can 8BPM0002.0000-00 be shipped?

8BPM0002.0000-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 8BPM0002.0000-00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 8BPM0002.0000-00 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BPM0002.0000-00, subject to availability and destination.
