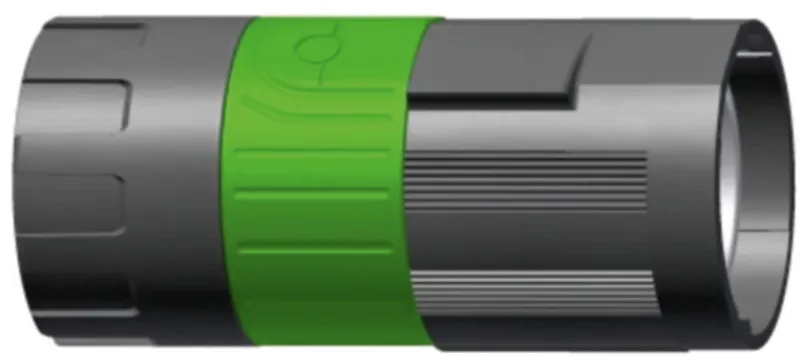

B&R 8BPR0002.0000-00
12-pin series 615 signal connector, IP67
- MPN
- 8BPR0002.0000-00
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 8BPR0002.0000-00?
12-pin series 615 signal connector, IP67, crimp contacts included in delivery: 12 x 0.14-1.0 mm², 1 x coding contact, cable terminals: 6-7.5 mm
Specifications
General information
| Insulator | PA, PBT, UL 94 / V0 listed |
| Contacts | Brass / Nickel-plated |
| Protective ground connection on housing | Per VDE 0110/EN 61984, section 6.19.2.2 |
| Connector size | Size 1 |
| Number and type of contacts | 12 signal contacts |
| Pollution degree | 3 |
| Installation elevation | Up to 2000 m |
| Degree of protection DIN 40050 | IP66/67 when connected |
| Certification | UL / CSA |
Electrical properties
| Signal contacts – Contact resistance | <5 mΩ |
| Signal contacts – Nominal voltage | 63 V (AC/DC) |
| Signal contacts – Nominal current | Max. 5 A |
| Signal contacts – Test voltage (L - L) | 1500 V |
| Overvoltage category | III |
Mechanical properties
| Housing – Material | Zinc die-casting / Plastic |
| Dimensions – Length | 42.7 mm |
| Dimensions – Diameter | 18.6 mm |
| Weight | 30 g |
| Crimping range | 12 x 0.14 - 1 mm² |
| Gasket | FKM |
| Mating cycles | >500 |
| Cable terminals | 4.5 - 6.5 mm |
| Temperature range | -20°C to +130°C |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
8BPR0002.0000-00: frequently asked questions
When can 8BPR0002.0000-00 be shipped?
8BPR0002.0000-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 8BPR0002.0000-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 8BPR0002.0000-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BPR0002.0000-00, subject to availability and destination.
