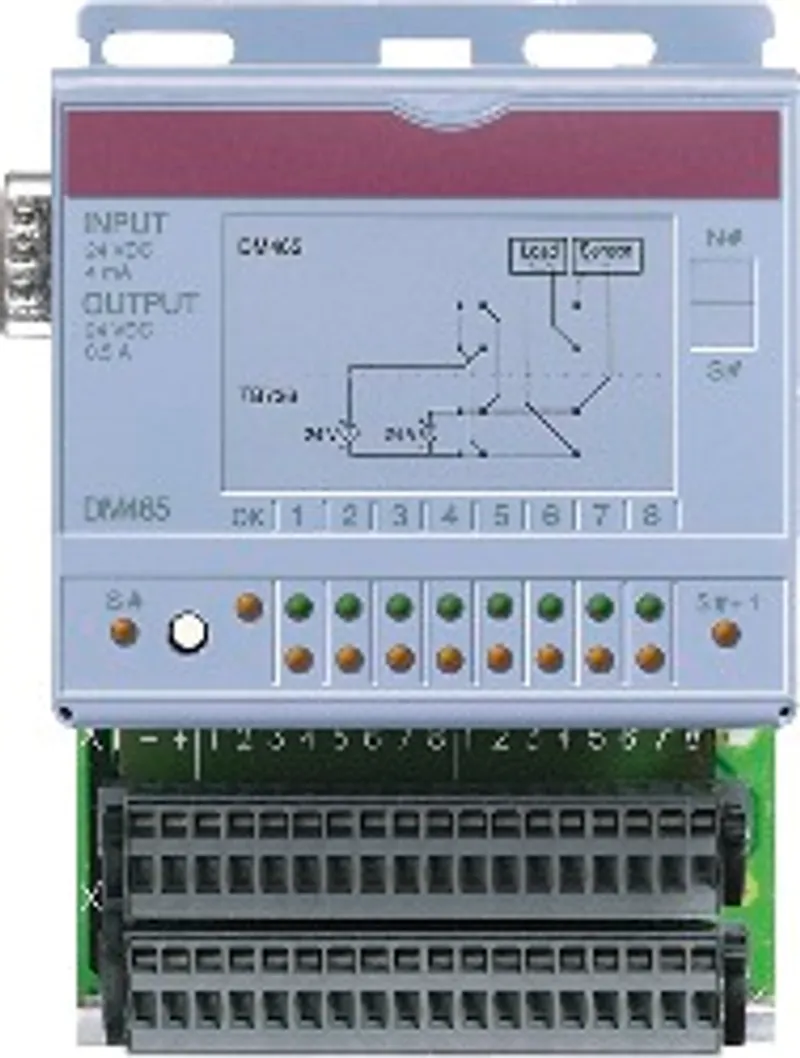

B&R 7DM465.7
2003 digital mixed module, 16 inputs 24 VDC, 1 ms, sink
- MPN
- 7DM465.7
€47.70excl. VAT & shipping
In stock — 1 available·Ships within 1 business day
Need a larger quantity or a formal quote?
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 7DM465.7?
2003 digital mixed module, 16 inputs 24 VDC, 1 ms, sink, 16 transistor outputs 24 VDC, 0.5 A, order 2x terminal blocks TB718 separately!
Specifications
General information
| C-UL-US listed | In preparation |
| B&R ID code | $F7 |
| Module type | B&R 2003 I/O module |
| Voltage and output monitoring (LED: OK) | Yes Supply voltage >18 V, outputs OK |
| Power consumption | Max. 1.1 W |
| Wiring | Sink |
| Input voltage – Minimum | 18 VDC |
| Input voltage – Rated | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 V |
| Switching threshold – High | >15 V |
| Input delay | Max. 1 ms |
| Input current at rated voltage | Approx. 4 mA |
| Electrical isolation – Input - PLC | Yes |
| Electrical isolation – Input - Output | No |
| Type | Highside driver IC (transistor) |
| Switching voltage – Minimum | 18 VDC |
| Switching voltage – Rated | 24 VDC |
| Switching voltage – Maximum | 30 VDC |
| Continuous current per – Output | Max. 0.5 A |
| Continuous current per – Module | Max. 8 A |
| Leakage current when switched off | 12 µA |
| Overload protection | Yes |
| Switching on after overload cutoff | Automatically within seconds (depends on the module temperature) |
| Permanent short circuit current | Typ. 4 A |
| Internal protective circuit | Yes |
| Braking voltage when switching off inductive loads | 47 V |
| Switching delay log. 0 - log. 1 log. 1 - log. 0 | Max. 450 µs Max. 450 µs |
| Electrical isolation – Output - PLC | Yes |
| Electrical isolation – Output - Input | No |
Mechanical characteristics
| Dimensions | B&R 2003 single-width |
Accessories
Required accessories (order separately)
| 7TB718.91 | Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
| 7TB718.9 | Terminal blocks — The single-row, 18-pin 7TB718 terminal block is used to connect to I/O modules. Removal is simplified by two ejection levers on the termina… |
Optional accessories (5)
| 7TB772.91 | Terminal blocks — 2003 terminal block, 72-pin, cage clamp terminal block |
| 7TB754.91 | Terminal blocks — 2003 terminal block, 54-pin, cage clamp terminal block |
| 7TB754.9 | Terminal blocks — 2003 terminal block, 54-pin, screw clamp terminal block |
| 7TB736.91 | Terminal blocks — 2003 terminal block, 36-pin, cage clamp terminal block |
| 7TB736.9 | Terminal blocks — 2003 terminal block, 36-pin, screw clamp terminal block |
